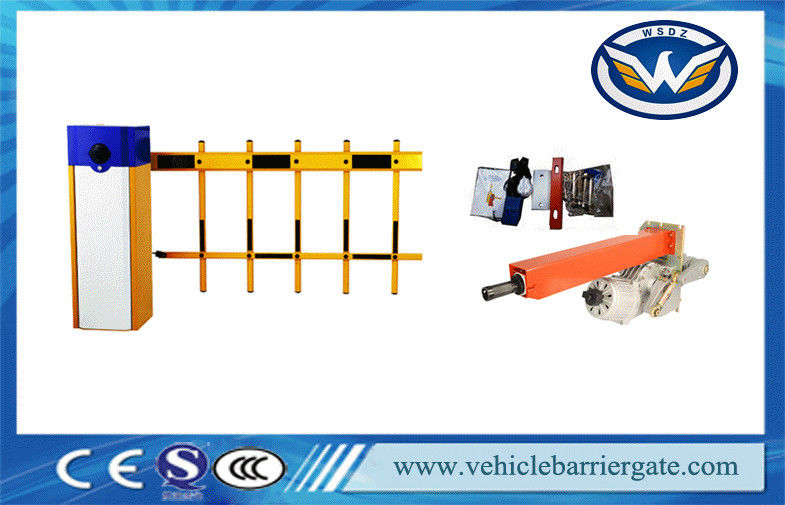

OEM Intelligent Car Park Barriers Arms Parking Barrier Gate Safety

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: DZTP-133-A

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

parking lot barriers

,

car parking barriers

Name:
OEM Car Park Barrier For Intelligent Parking System Vehicle Control Barrier Gate
Rated Power:
80W
Relative Humidity:
≤90%
Remote Control Distance:
Usually More Than 30 Meters, If There Is Less Obstacles, Even 50 Meters Or More
 Rating Power:
120W
Name:
OEM Car Park Barrier For Intelligent Parking System Vehicle Control Barrier Gate
Rated Power:
80W
Relative Humidity:
≤90%
Remote Control Distance:
Usually More Than 30 Meters, If There Is Less Obstacles, Even 50 Meters Or More
 Rating Power:
120W
Description
OEM Intelligent Car Park Barriers Arms Parking Barrier Gate Safety



OEM Intelligent Car Park Barriers Arms Parking Barrier Gate Safety





  1. Unique Driving Structure: Our car park barriers features a specialized driving structure that eliminates the need for traditional gears and belts, resulting in a maintenance-free operation. This design not only enhances stability but also extends the lifespan of the equipment, ensuring reliable performance over time.

  2. Advanced Balancing Design: The innovative balancing structure of the barrier arm allows for a gradual acceleration and deceleration process. This means the arm starts slowly, reaches its full speed quickly, and then slows down smoothly at the end of its cycle, providing a seamless and safe operation.

  3. Smooth Operation: Our car park barrier system operates without any arm-shaking, ensuring that the barrier arm moves fluidly and steadily. This stability minimizes wear and tear and enhances the overall performance of the system.

  4. Efficient Arm Movement: The car park barrier arm is designed to operate at a precise 90-degree angle. This eliminates the complications and potential failures that can arise from a 360-degree rotation, thereby improving reliability and reducing maintenance needs.

  5. Quiet and Efficient Motor Design: Featuring a specially designed low-speed aluminum housing motor with an integrated gearbox, this system operates quietly while providing effective heat dissipation. This design minimizes noise pollution and enhances the overall user experience.

  6. Intelligent Overheating Protection: Our driving mechanism incorporates an intelligent overheating protection system. This innovative feature monitors the motor's temperature during frequent use, preventing overheating and ensuring that the motor operates efficiently without the risk of damage.

  7. Dual Protection System: The main engine is equipped with both mechanical limit switches and photoelectric limit switches for dual protection. This design mitigates the issues commonly associated with traditional magnetic switches, which can be easily affected by external environmental factors, enhancing the overall reliability of the system.

  8. Customizable Barrier Gate Lengths: Our car park barrier gates can be customized to lengths ranging from 1 meter to 6 meters, allowing for flexibility to meet various installation requirements and ensuring suitability for different applications.

This expanded version provides a clearer and more detailed description of each feature, emphasizing the benefits and innovations of the barrier system.





Car park Barrier Model Selection and Differences



OEM Intelligent Car Park Barriers Arms Parking Barrier Gate Safety 0




Car Park Barrier Specifications



Model

WST1211

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44




Communication with customers

1)     Q: Connected power and pressed the open/close button but the traffic barrier gate did not action.



A

Reason

Solution

1

Fuse blown

Check the fuse and power in the controller

2

The battery of the remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click the OPEN/CLOSE button on the control box

4

Same frequency interference

Check photocell and loop detector


2) Q: Connected power and press the open/close button, the traffic barrier gate will move but even when it is in the right position, the motor still runs and does not stop.



A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to the correct position

2

Main controller failure

Change a new one


3)   Q: The motor running but the traffic barrier gate arm is not in action?



A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock the clutch and manually rotate the arm to a horizontal or vertical position then try again

2

The tension of the balancing spring is not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing, traffic barrier gate arm cannot reach the right position (90° vertical & 180° horizontal)?



A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open the barrier door and unlock the clutch to check when the arm is at 90° vertical position if the master rod covers slave one; when the arm is at 180° horizontal position if the master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal









Market Revenue(Previous Year) Total Revenue (%)
North America USD 63,608 1
South America USD 508,869 8
Eastern Europe USD 3,180,436 50
Southeast Asia USD 318,043 5
Oceania USD 127,217 2
Mid East USD 190,826 3
Western Europe USD 1,017,739 16
Domestic Market USD 954,130 15





For the things that most customers want to know:



1. One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltage.
3. The surfaces of the system were destroyed by the wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belongs to the production factory.
