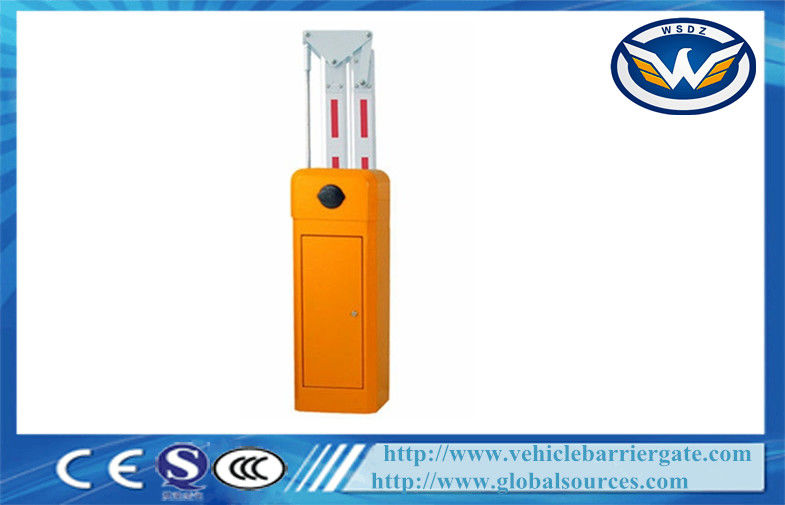

Heavy Duty Boom Barrier Gate Remote Control Car Park Barrier System

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: DZTP-133-A

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

auto barrier gate system

,

security barrier gate

Name:
Heavy Duty Toll Barrier Gate Remote Control Car Park Gate For Parking Access Control
Data Transmission Speed:
4800bps/100M
Working Environments:
Indoor,outdoor
Net Weight:
50kgs
Country of Origin:
Shenzhen, China
 Main Markets:
Russia, Spain,Malaysia, Myanmar, Singapore, Thailand, Philippines, Indonesia.,United Arab Emirates, Iraq, Brazil And Argentina
Name:
Heavy Duty Toll Barrier Gate Remote Control Car Park Gate For Parking Access Control
Data Transmission Speed:
4800bps/100M
Working Environments:
Indoor,outdoor
Net Weight:
50kgs
Country of Origin:
Shenzhen, China
 Main Markets:
Russia, Spain,Malaysia, Myanmar, Singapore, Thailand, Philippines, Indonesia.,United Arab Emirates, Iraq, Brazil And Argentina
Description
Heavy Duty Boom Barrier Gate Remote Control Car Park Barrier System



Heavy Duty Boom Barrier Gate Remote Control Car Park Barrier System





Basic Features:



1) By-security. the barrier gate will automatically go back when meet obstacles during closing.

2) AC motor is more powerful and no maintenance.

3) Barrier Boom/arm can be chosen from 3 meters to 6 meters, and barrier gate.

4) Closing time is also arranged from 1 second to 6 seconds.

5) The barrier gate can be both right-installed and left-installed.

6) All the operation process is soft without any noise and shaking.

7) Infrared photocell interface, loop detector interface and IC system.

8) interface are reserved for the other functions.

9) Green light and red light are used inside for indication the position of the boom





Advanced Features:



1)clutch key can be used to open the clutch when power off.

2)Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting, unique temperature calefaction design for low temperature using, prevent freezing in cold weather.

3)Exactitude aluminium alloy die-casting motor base reduce the noise and joint abrasion to prolong the barrier gate working life.





Model Selection and Differences



Heavy Duty Boom Barrier Gate Remote Control Car Park Barrier System 0




Specifications



Model

WST1211

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44




Communication with customers

1)     Q: Connected power and press open/close button but traffic barrier gate no action?



A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?



A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but traffic barrier gate arm no action?



A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?



A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal









Market Revenue(Previous Year) Total Revenue (%)
North America USD 63,608 1
South America USD 508,869 8
Eastern Europe USD 3,180,436 50
Southeast Asia USD 318,043 5
Oceania USD 127,217 2
Mid East USD 190,826 3
Western Europe USD 1,017,739 16
Domestic Market USD 954,130 15





Arm type:



a.Straight arm- suitable for broad area without height limitation

b.Folding arm- suitable for the place with height limitation such as underground parking lot

c.Fence arm- suitable for the place with the ban of animals.
