Two Relays Vehicle Loop Detector , inductive loop traffic detector

Name: Two Relays Vehicle Loop Detector , inductive loop traffic detector
Brand: Shenzhen Wonsun Machinery & Electrical Technology Co. Ltd
SKU: WSTP-152
Price: 169.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP-152

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          magnetic loop detector, sliding gate rack


Name:	Sliding Gate Motor Accessories Vehicle Loop Detector With Two Relays	Power Supply:	220V/110V/24V/12V
Reaction Time:	100ms	Operating Temperature:	-20°C To +70°C
Power Consumption:	4.5VA	Frequency Range:	20 KHz To 170 KHz
Warranty:	1 Year

Name:	Sliding Gate Motor Accessories Vehicle Loop Detector With Two Relays
Power Supply:	220V/110V/24V/12V
Reaction Time:	100ms
Operating Temperature:	-20°C To +70°C
Power Consumption:	4.5VA
Frequency Range:	20 KHz To 170 KHz
Warranty:	1 Year

Description

Two Relays Vehicle Loop Detector , inductive loop traffic detector

Two Relays Vehicle Loop Detector , inductive loop traffic detector

Technical Data

Supply voltage AC	220V, 110V, 24V, 12V
Supply voltage DC	24V, 12V
Sensitivity	0.013%-0.1%
Operating Temperature	-20°C to +70°C
Storage temperature	-40°C to +85°C
Frequency Range	20 kHz to 200 kHz
Reaction Time	100ms
Loop inductance	Ideal: 80μH to 300μH (incl. conn. wiring)
Loop connection	<5m optimal
Loop connection wiring	Maximum length 200 meters Twisted at least 20 times per meter
Dimensions	37x74x85 mm (WxHxL)
Net Weight	250g

Work Indicator

Detector will enter into the self-calibration condition with the green LED flash, red LED extinguish once on power, this procession will last 1 second. .the vehicle should not on the loops within the self-calibration. The green LED will not flash, he red LED extinguish after self-calibration. When the vehicle past over the loop ,the red LED on.

DIP SWITCH and Wire Jumper

DIP1, 2 setting the sensitivity;set the presence output time of relay 1 by DIP3;set the relay2 as presence/pulse output by DIP4; the output time of presence signal set by DIP5;DIP6set the frequency; jumper wire connect to the open end, PIN16 connect to the NO of relay 1. Jumper wire connect to the close end, PIN16 connect to the NC of relay 1

Work Frequency

User can change the loop's work frequency which can avoid the cross talk by the adjacent loop or environment frequency. It offers two styles frequency, set by DIP6

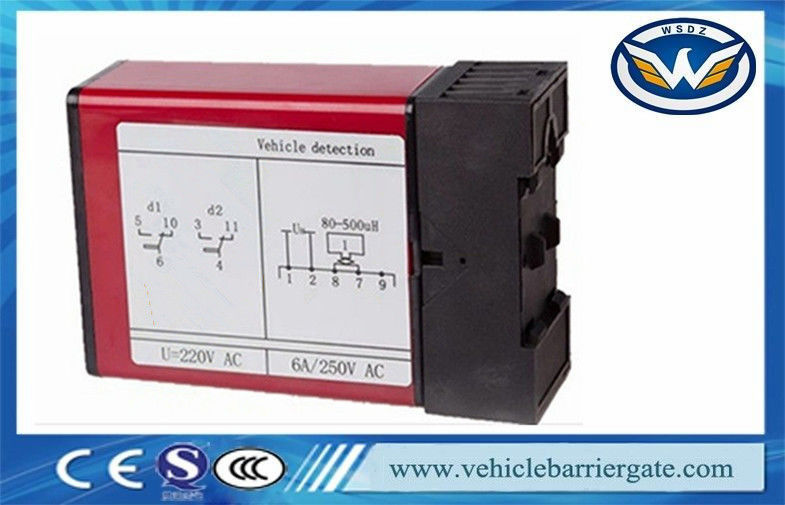

Two Relays Vehicle Loop Detector , inductive loop traffic detector 0

Two Relays Vehicle Loop Detector , inductive loop traffic detector 1
