Highway Toll Car Park Barrier Automatic Boom 2.5m IP44 0.6 s

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: DZTP-139-D​

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

boom barrier gate

,

electric boom barrier

Name:
Car Parking Barrier
Rating Voltage:
220V±10%, 110V±10%, 50/60HZ
Data Transmission Speed:
4800bps/100M
Remote Control Distance:
Usually More Than 30 Meters, If There Is Less Obstacles, Even 50 Meters Or More
Relative Humidity:
≤95% Coagulation Free
Country of Origin:
China
Name:
Car Parking Barrier
Rating Voltage:
220V±10%, 110V±10%, 50/60HZ
Data Transmission Speed:
4800bps/100M
Remote Control Distance:
Usually More Than 30 Meters, If There Is Less Obstacles, Even 50 Meters Or More
Relative Humidity:
≤95% Coagulation Free
Country of Origin:
China
Description

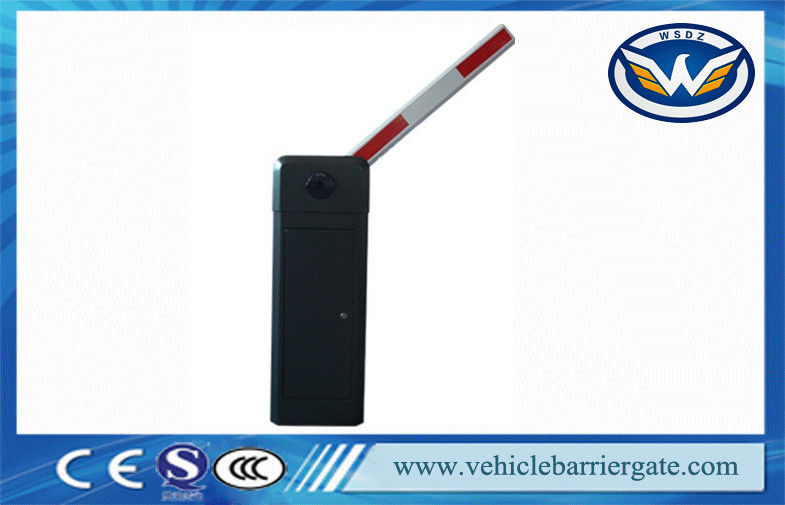

Highway Toll Car Park Barrier Automatic Boom 2.5m IP44 0.6 s

Highway Toll Car Park Barrier Automatic Boom 2.5m IP44 0.6 s



What is the davantages of Wonsun barriers?



1)The humanized clutch device:in case of power off, unlock the clutch device and raise the boom manufally. By the time the power is supplied, lick the clutch device to make it working normally again.

2)Special spring device:Both the compression spring and tension spring can be used in the machine, Using the compression sprin can avoid accidents caused by the tension spring.

3)Three control buttons:for boom raising, falling and pausing.

4)Boom backtrack function:the boom will rise if hits something when falling.

5)Infrared photocell design:for avoiding the crash when the boom falling, so as to prevent the vehicles from being pressed.

6)Both external and internal loop detectors are supported.

7)"open","close" and "stop" controlling interfaces.

8)RS-485 communication serial interface(optional)

9)Traffic light signal connection device: red light for stop,green light for pass.

10)Remote control and wire control for selection.



Wonsun car parking barrier is designed using innovative technology and manufactured with precision

machinery to guarantee satisfaction in quality and reliability for years to come.

Wonsun car parking barrier  has been lab tested for more than 5 millions opening / closing and still without any degrade in performance.

No limit switch design minimizes mechanical wear and enchances barrier life time.

DZTP-139-D model can use WONSUN 1st generation machine core

DZTP-139-D model also offer a complete range of arm ( folding, fence and swing out )





Each barrier gate will include:



1 pcs Gate Barrier

1 pcs arm boom (from 1m to 6m can customised)

1 pcs control panel(built inside)

2 pcs remote controllers

1 pcs manual book

1 pair photocell( optional)

1 loop detector( optional)

1 RS485( optional)






Specifications



Model

DZTP-139-D

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44




Communication with customers

1)     Q: Connected power and press open/close button but traffic barrier gate no action?



A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?



A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one



1.One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining  authority of this product instruction and service article belong to the production factory.
