Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZTP-123-A
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
Parking Lot Intelligen TParking Barrier Gate With LED Light Arm |
Rated Power: |
80W |
Data Transmission Speed: |
4800bps/100M |
Remote Control Distance: |
Usually More Than 30 Meters, If There Is Less Obstacles, Even 50 Meters Or More |
Protection Degree: |
IP44 |
Country Of Origin: |
China |
Name: |
Parking Lot Intelligen TParking Barrier Gate With LED Light Arm |
Rated Power: |
80W |
Data Transmission Speed: |
4800bps/100M |
Remote Control Distance: |
Usually More Than 30 Meters, If There Is Less Obstacles, Even 50 Meters Or More |
Protection Degree: |
IP44 |
Country Of Origin: |
China |

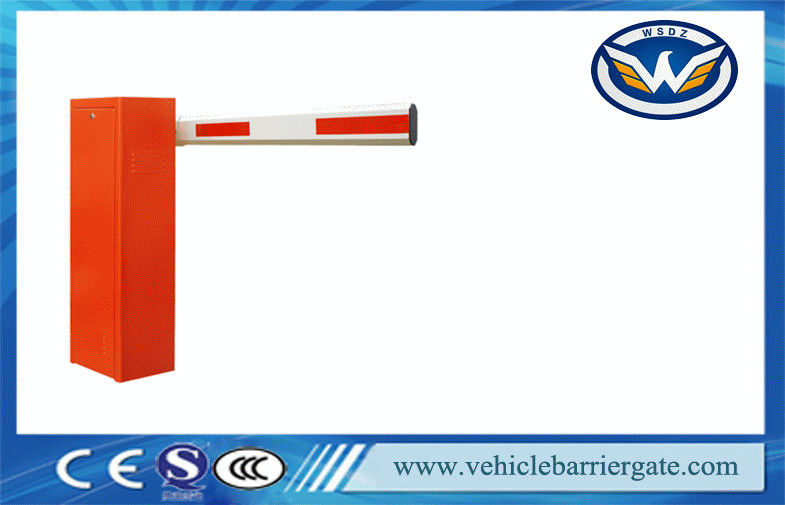

Parking Lot Intelligent Parking Barrier Gate With LED Light Arm
Parking Barrier Gate Advantages of WONSUN Barrier
1. steady function, sensitive reaction, low noise
2. The case shell is made of thickened steel which is shaped by 13 process flow. Without fading, waterproofing is not rusty and is durable.
3. High-sensitive limit switch, the pole can be instantly turned on and off accurate location.
4. The control system adopts hi-tech digital chip technology.
5. the anti-collision function. Protecting the passenger
6. the inductive function, of the digital vehicle detector
7. the movements adopt the most steady running mode –non-constant speed mode. Or the variable speed excogitation. (Slow – quick – slow ) .This function makes the operation steady and prolongs the working life.
Parking Barrier Gate Model Selection and Differences
Parking Barrier Gate Specifications
|
Parking Barrier Gate Model |
WST1211 |
|
Working Temperature |
-40℃～+75℃ |
|
Parking Barrier Gate Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
80W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
48kgs |
|
Parking Barrier Gate Speed |
1S,1.8S,3S, 6S |
|
Max boom length |
6 meters |
|
Motor Rotational speed |
1400rmp |
|
Protection Degree |
IP44 |
Parking Barrier Gate Communication with customers
1) Q: Connected power and pressed the open/close button but the traffic barrier gate did not action.
|
A |
Reason |
Solution |
|
1 |
Fuse blown |
Check the fuse and power in the controller |
|
2 |
The battery of remote control powered off |
Change a new one |
|
3 |
External protection circuit break or at protecting status |
Open the barrier door and click the OPEN/CLOSE button on the control box |
|
4 |
Same frequency interference |
Check photocell and loop detector |
2) Q: Connected power and press the open/close button, the traffic barrier gate will move but even when it is in the right position, the motor still runs and does not stop.
|
A |
Reason |
Solution |
|
1 |
Limit switch |
Adjust the horizontal/vertical limit switch to the correct position |
|
2 |
Main controller failure |
Change a new one |
3) Q: The motor running but the traffic barrier gate arm is not in action?
|
A |
Reason |
Solution |
|
1 |
Barrier arm at 45° position where is hard to move |
Unlock the clutch and manually rotate the arm to a horizontal or vertical position then try again |
|
2 |
Tension of the balancing spring is not suitable |
Adjust spring exactly |
|
3 |
Low working voltage |
Check the voltage and power |
4) Q: When opening/closing, traffic barrier gate arm cannot reach the right position (90° vertical & 180° horizontal)?
|
A. |
Reason |
Solution |
|
1 |
Length adjustment of connecting rod not correct |
Open the barrier door and unlock the clutch to check when the arm at 90° vertical position if the master rod covers slave one; when the arm at 180° horizontal position if the master rod and slave one are in the same straight line |
|
2 |
Nuts on the limit switch loose |
Tighten the nuts when arm at 90° vertical and 180° horizontal
|
Parking Barrier Gate
1. One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltage.
3. The surfaces of the system were destroyed by the wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belongs to the production factory.
