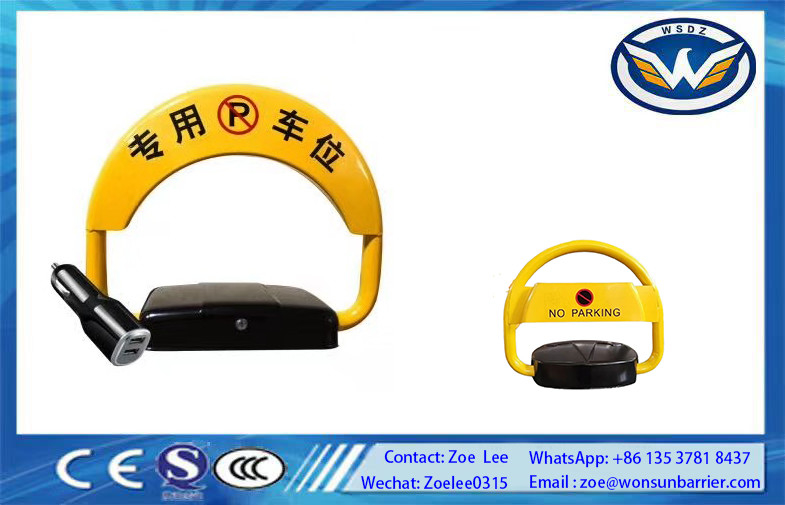

Parking Management Intelligent Parking Lock Self-locking With Manual Operation

Intelligent Parking Lock Product

I. General Overview

II. Technical Parameters

III. Functional and Features

1. Pressure Resistance: The parking lock can withstand strong pressure, ensuring it remains intact under various conditions.
2. Self-locking: It has a self-locking function, which prevents the lock from being easily moved or opened by external forces.
3. Manual Operation: In case of power failure or remote control issues, the lock can be manually operated to lift or lower the rocker.
4. Sealing: With an IP65 protection grade, the lock is resistant to dust and water, ensuring it can work normally in harsh environments.
5. Power-off on Resistance: When the rocker is blocked, the power will be cut off automatically to protect the electrical motor from damage.
6. Power Shortage Indication: When the battery power is insufficient, the luminotron on the parking lock will flicker to remind the user to recharge.
7. Reset after Removal of External Force: When the external force is removed, the internal mechanisms will automatically reset the rocker to its original position, ensuring safety.
8. Theft Protection: The installation position of the parking lock should be out of sight to prevent theft.

IV. Installation Principle and Method

1. Installation Principle

• Installation Position: The parking lock should be installed in the middle of the parking space entrance to avoid being touched by the automobile when it goes in and out18.
• Installation Site: It should be installed on a level and dry cement ground to ensure stability19.

2. Installation Method

• A. Use a manual crank to rotate the worm and raise the rocker, then open the lock with a key and the upper cover to install the lock.
• B. Drill three holes (12mm in diameter and 50mm in depth) according to the installation holes on the parking lock foundation, and install M expansion bolts.
• C. Cover three foundation spacers on the expansion bolts, then cover the parking lock foundation, install and tighten the bolts to complete the installation.
• D. When using the lock, open the upper cover, insert the battery plug into the parking lot socket, and set the battery level.
• E. Install the upper cover, keep the upper and lower fixed blocks joggling, push the upper cover forward, and then lock it.

V. Operation Instruction

1. Press the remote button to lift or lower the parking lock rocker. If the rocker is blocked, power-off protection will be activated to prevent the electrical motor from being damaged.
2. If the remote is out of service or the battery is short of power, the rocker can be lifted and lowered by hand pulling and pressing.

VI. Battery Alarm Instruction

1. Before using the parking lock, the battery should be recharged, and the recharging time should be controlled within 10 hours. The indicator light will turn green from red when the battery is fully charged.
2. If the battery is stored for a long time, seriously short of power, or damaged, it needs to be replaced.
3. During use, if the terminal voltage of the battery is lower than 6.2V (the working speed of the parking lock is lower than usual), recharge the battery in time to ensure normal operation.

VII. Repairing and Maintenance

VIII. Problem Recovery

1. If the power shortage indicator lamp is on and the parking lock cannot work properly when pressing the button, check the following:

• A. Inspect whether the connection of wires and power supply is in order.
• B. Inspect whether there is any abnormal noise in the electrical motor.
• C. Inspect whether the remote is short of power (the indication lamp is out).
• D. Check whether there is any distortion of the lock shape.

2. If there are any unsolved problems, the user can contact our special service station or our company.

IX. Packing List
