Low Noise stable 6 meters Parking Barrier Gate Barrier Guard Gate

Certification
China Shenzhen Wonsun Machinery & Electrical Technology Co. Ltd certification
China Shenzhen Wonsun Machinery & Electrical Technology Co. Ltd certification
Customer Reviews
I think your goods is the best for quality

—— Ferdi

I really recommend, a great team and good quality. Very good. I will buy again.

—— Oliver

Wonsun is a very reliable company, fast shipment and good quality, the most important is competitive prices.

—— Ali Alabadi

I'm Online Chat Now

Low Noise stable 6 meters Parking Barrier Gate Barrier Guard Gate

Low Noise stable 6 meters Parking Barrier Gate Barrier Guard Gate
Low Noise stable 6 meters Parking Barrier Gate Barrier Guard Gate

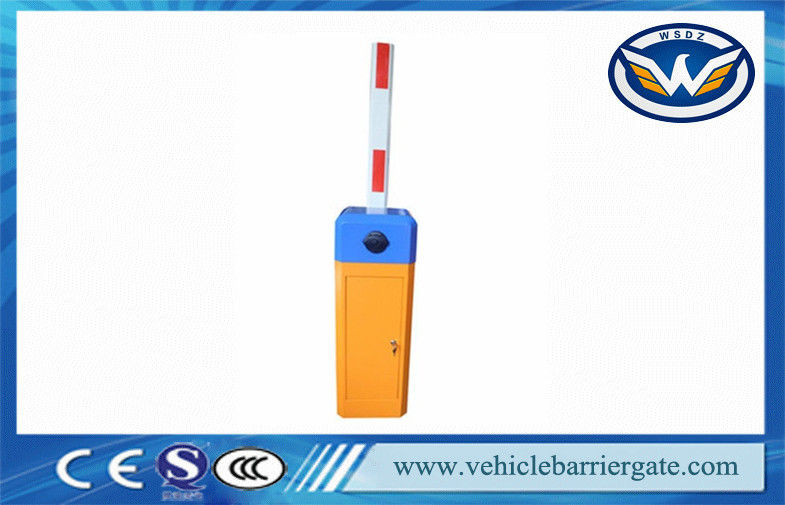

Large Image :  Low Noise stable 6 meters Parking Barrier Gate Barrier Guard Gate

Product Details:
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZTP-139-E
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month

Low Noise stable 6 meters Parking Barrier Gate Barrier Guard Gate

Description
Name: Low Noise Stable 6 Meters Parking Barrier Gate Barrier Guard Gate Surface Treatment: Hot Dip Galvanized, Powder Coated
Housing Dimension: 280 * 240 * 996 Mm Material: 3 Years Without Rust, Shedding And Fading
Mode Of Communication: RS485 Theoretical Weight: 50 Kg/set
Thickness: 2MM
High Light:

security boom gate

,

boom barrier gate

Low Noise stable 6 meters Parking Barrier Gate Barrier Guard Gate

Basic Features:
1)By-security. the barrier gate will automatically go back when meet obstacles during closing.
2)AC motor is more powerful and no maintenance.
3)Barrier Boom/arm can be chosen from 3 meters to 6 meters, and barrier gate.
4)Closing time is also arranged from 1 second to 6 seconds.
5)The barrier gate can be both right-installed and left-installed.
6)All the operation process is soft without any noise and shaking.
7)Infrared photocell interface, loop detector interface and IC system.
8)interface are reserved for the other functions.
9)Green light and red light are used inside for indication the position of the boom


Model Selection and Differences


Boom type Boom Length(L) Diameter of the spring(mm) Note
Straight boom 6M≥L≥5M 5.5/4.5
  5M≥L≥4.5M 5.5 Dispatching 4.5
  4.5M≥L≥3M 4.5 Dispatching 4.5
Straight boom adhesive tape 5M≥L≥4M 4.5M≥L≥3M 5.5/4.5 Dispatching 4.5
  4M≥L≥3M 3.5M≥L≥3M 4.5 Dispatching 4.5
Folding boom 6M≥L≥5M 6.5/4.5
  5M≥L≥4M 5.5/4.5
  4M≥L≥3M 4.5
  Two fence boom 5M≥L≥4M 6.5/5.5
Fence boom   4M≥L≥3M 5.5/4.5
  Three fence boom 4M≥L≥3M 6.5/5.5
    3M≥L≥2M 5.5/4.5


Specifications

Model

DZTP-139-E

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP54



Advanced Features:
1)clutch key can be used to open the clutch when power off.
2)Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting, unique temperature calefaction design for low temperature using, prevent freezing in cold weather.
3)Exactitude aluminium alloy die-casting motor base reduce the noise and joint abrasion to prolong the barrier gate working life.

Why choose us?

1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.

Communication with customers

1)     Q: Connected power and press open/close button but traffic barrier gate no action?

A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?


A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but traffic barrier gate arm no action?


A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?


A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal position



 For the things that most customer want to know:

1. MOQ: for our usual order, there is no MOQ; But for customized order, like customize color, printing LOGO, corrosion protection base, the MOQ is 30 sets.
2. Delivery Time: as for usual order, 3-7 days when we received your advance deposite or full payment(including Saturday), For customized order, it is 10-15 days after receiving your payment(including Saturday)
3. Production Potential: 80 sets of barrier gate finished in one day for usual order, for customized order, according to your detailed requirements
4. Quality Control: 3 control lines and 6 QC for Checking, first is motor testing line which can promise you good and durable motor;second is machine core testing line which can promise you stable function;final is barrier gate testing line which can promise you perfect working with its required boom with our experienced technicist's debugging
5. Service and Support: as for presales service, we will provide all the information you need and questions you asked; for aftersales, we will offer long term technical support, and we're sure that any of your feedback will receive our careful attentions and prompt reply.
6. Warranty: 12 months Since the barrier gate you recieve
7. Delivery Way: we can send the goods to you by Sea, Airplane and Express, but you need tell us which kind of way do you prefer and relative information. for example, if you want to delivery by sea, please kindly send us the shipping requirements, like FOB or CIF, and your nearby port.
8. Payment: for sample order: full payment; for usual order, 30-40% advance deposite, balance before shipment for large quantity.
As for here, if you have any pending orders or inquiry, please kindly feel free to contact us, we're sure that any of your feedback will receive our careful attentions and prompt reply.
