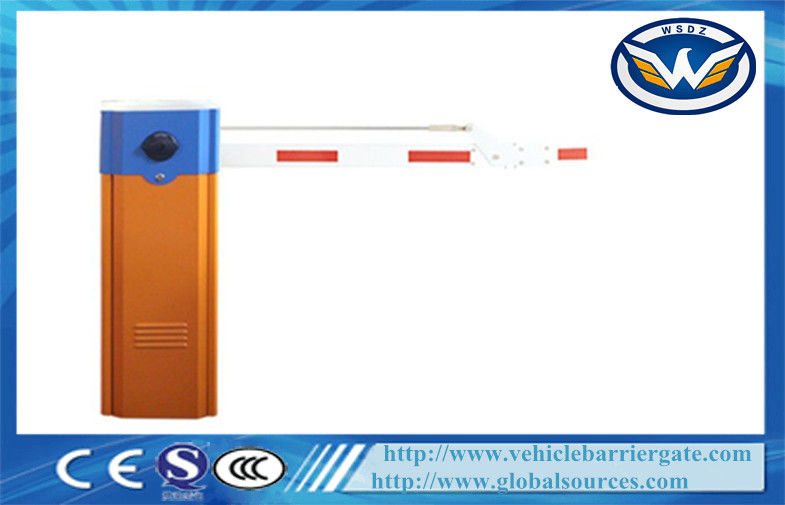

2.0 Cold Rolled Steel Plate Sturdy Housing Automatic Boom Barrier

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: DZTP-137-A

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

Sturdy Housing Automatic Boom Barrier

,

Cold Rolled Steel Automatic Boom Barrier

,

Intelligent Vehicle Barrier Gate

Name:
Intelligent Vehicle Barrier Gate Access Control Barrier Gate Vehicle Acess
Arm Type:
Straight Arm, Folding Arm, Fence Arm, Optional
Rating Power:
100w
Open / Close Time:
0.6s,1s, 1.8s, 3s, 6s
Power Supply:
AC 220V / 110V
Remote Control Distance:
Usually More Than 30 Meters, If There Is Less Obstacles, Even 50 Meters Or More
Name:
Intelligent Vehicle Barrier Gate Access Control Barrier Gate Vehicle Acess
Arm Type:
Straight Arm, Folding Arm, Fence Arm, Optional
Rating Power:
100w
Open / Close Time:
0.6s,1s, 1.8s, 3s, 6s
Power Supply:
AC 220V / 110V
Remote Control Distance:
Usually More Than 30 Meters, If There Is Less Obstacles, Even 50 Meters Or More
Description
2.0 Cold Rolled Steel Plate Sturdy Housing Automatic Boom Barrier

2.0 Cold Rolled Steel Plate Sturdy Housing Automatic Boom Barrier



Automatic Boom Barrier Application
Suitable for indoor as well as outdoor parking areas at airports, shopping malls, warehouses, hotels, factories, condominiums, car rental companies, etc. It can also be customized to be used together with any auto-pay ticketing parking or access control system.

Automatic Boom BarrierAutomatic Boom BarrierAutomatic Boom BarrierAutomatic Boom BarrierAutomatic Boom BarrierAutomatic Boom BarrierAutomatic Boom BarrierAutomatic Boom BarrierAutomatic Boom BarrierAutomatic Boom BarrierAutomatic Boom BarrierAutomatic Boom BarrierAutomatic Boom BarrierAutomatic Boom BarrierAutomatic Boom BarrierAutomatic Boom Barrier

Automatic Boom Barrier Specifications


Model
Item

DZTP-137-A DZTP-137-A
Opening Time 3S 6S
Boom Type Straight, square-shaped
Boom Length 4.5m 7M
Voltage 110V/220V
Motor/Power AC/120W
Working Temperature -35℃ - 75℃
Protection Grade IP44
Remote Control Distance 30M~100M



Automatic Boom Barrier Functions & Features

AC motor is strong, and can easily lift even with additional signage installed on to the barrier arm. AC motor is maintenance free, as there is no carbon in the AC motor, Built-in intelligent fan cools the motor during heavy usage.

Wonsun clutch device can be conveniently unlocked to manually open or close the arm without removing the whole top cover or body housing, Resulting in hassle-free operation and all components inside the barrier body are safe from danger and vandalism.

Sturdy housing, Housing is made with a 2.0 mm cold rolled steel sheet for extra durability to support longer arms. The housing body is coated with epoxy paint for weatherproof protection

The photoelectrical limit switch uses a smart motor counter to auto-detect open/close positions for higher accuracy and better stability. No more mechanical wear and tear which causes the arm to tilt up or down


Our automatic boom barrier packing List


Packing list
Name Specifications Quantity Remarks
Machine core Good in working 1 Main part
Barrier arm Straight, folding, or fence arm 1 Optional
Boom pressboard   1 Fixing the boom
Self-tapping screw ST4*16 Fixing the boom
Self-tapping screw st3*10 4 Fixing the boom
Supporting pole   1 Supporting the boom
Expansion bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 fixing the case
Clutch key   1 clutch device
Case Key   2 for the case and cover locking
Balance spring According to the length of the barrier arm 1 for spare usage
Remote emitter less than 30m is available 1 For remote control
Remote control handles less than 30m is available 2 For remote control
Instruction in English 1 For reference
RS485 interface   1 Optional
Disc   1 Optional
Communication Mould   1 Optional
Cover head   1 3 years without fading
Expansion nut M8 4 Fixing the supporting pole



Why choose us?

1. OEM Brand, Logo, Label available
2. 1-Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you the best support
4. Detailed installation manual and wiring diagram to make everything easy
5. Fast finishing time for you to become more competitive in your local market :3-5 days for small orders.
6. Barrier gate motor can be accepted as old for new service. The barrier gate must be produced by our factory.

With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty well. Our thinking is beyond the short-term. We are conceiving, designing, and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative, that will improve your performance and enhance your skills; and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.
