Parking Barrier Gate Brushless Motor Support Ads With Straight Arm

Name: Parking Barrier Gate Brushless Motor Support Ads With Straight Arm
Brand: Shenzhen Wonsun Machinery & Electrical Technology Co. Ltd
SKU: DZ-2211Z
Price: 940.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-2211Z

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: carton box

Payment Terms: T/T, Western Union

Supply Ability: 2000/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Brushless Motor Parking Barrier Gate, Ads Parking Barrier Gate, Straight Arm Parking Barrier Gate


Name:	DZ-2211Z	Arm:	Straight Arm Max 6m
Speed:	1.2s-3s,2.5S-6S	Color:	Black
Motor:	DC Brushless Motor	IP:	IP54

Name:	DZ-2211Z
Arm:	Straight Arm Max 6m
Speed:	1.2s-3s,2.5S-6S
Color:	Black
Motor:	DC Brushless Motor
IP:	IP54

Description

Parking Barrier Gate Brushless Motor Support Ads With Straight Arm

Parking Barrier Gate Brushless Motor Support Ads With Straight Arm

1. Product Description

The DZ - 2211Z Advertising Barrier Gate, a fourth - generation DC brushless model with the patent number CN114108519A, represents a remarkable blend of functionality and advertising potential. Engineered for high - traffic locales like parking lots, commercial hubs, and residential communities, it stands out as an innovative access control solution.

This gate features a robust and durable framework, crafted from high - quality materials that safeguard against environmental wear and tear. Its housing, made of powder - coated galvanized steel with a thickness of 2.5mm, ensures long - term reliability. The straight bar, constructed from high - strength and corrosion - resistant aluminum alloy, serves a dual purpose. Not only does it regulate traffic flow efficiently, but it also functions as a dynamic advertising platform, capable of showcasing vivid and engaging ads to promote products and services.

Powered by a high - performance DC brushless motor, the DZ - 2211Z offers smooth and rapid operation. The advanced control system enables precise and safe opening and closing, while user - friendly interfaces simplify installation and maintenance procedures.

2. Parameter

Power Supply: AC220V ± 10%, 50Hz

Rated Power: 160W

Motor Type: Fourth - generation DC Brushless Motor

Motor No - load Speed: 1850r/min

MTBF: ≥ Reliable for extensive operations

Barrier Arm Length: 3m - 4.5m and 6m - 8m

Input Interfaces: Vehicle Detector Loop Input, Infrared Sensor Input, Remote Control Receiver Input

Output Interfaces: Motor Control Output, Advertising Display Control Output

Communication: RS485 for remote monitoring and control

Remote Control Distance: ≤ 100m (in open, sunny conditions)

Barrier Arm Material: High - strength and corrosion - resistant Aluminum Alloy

Housing Material: Powder - coated Galvanized Steel, 2.5mm thick

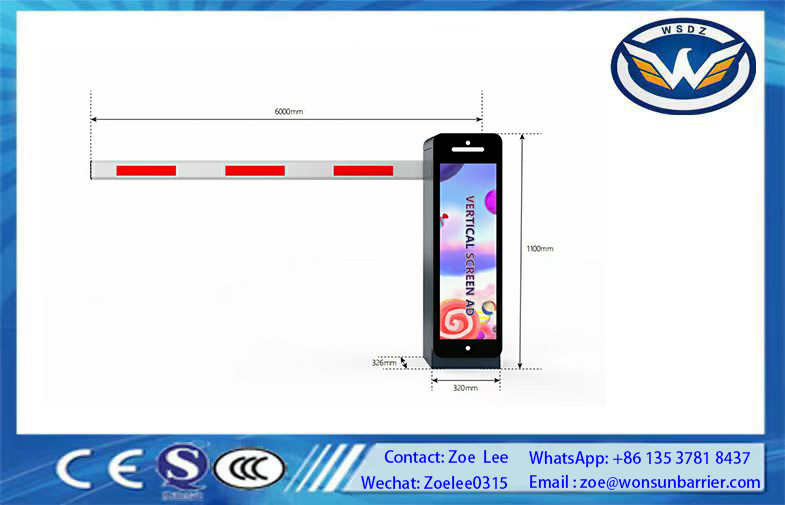

Housing Size (L * W * H): 320mm * 325mm * 1095mm

Package Dimension: Not specified

Net / Gross Weight: Not specified

Open/Close Speed: 1.2s - 3s (adjustable) and 2.5s - 6s (adjustable)

Protection Grade: IP54

Working Temperature: - 35℃ - + 65℃

Relative Humidity: ≤ 90%

Output Torque: Not specified

3. Function

3.1 Traffic Control

The DZ - 2211Z effectively manages vehicle entry and exit, ensuring seamless traffic movement. Triggered by inputs from vehicle detectors, infrared sensors, or remote controls, the barrier arm opens and closes swiftly and precisely.

3.2 Advertising Display

Equipped with a vertical screen advertising function, the gate transforms into a powerful advertising medium. It can showcase dynamic or static ads, providing businesses with a prime opportunity to reach their target audience. The advertising content can be easily updated and managed through a dedicated system.

3.3 Multiple Inputs Compatibility

The gate is designed to integrate with various detection devices. The vehicle detector loop input senses vehicle presence, the infrared sensor input detects pedestrians or obstacles, and the remote control receiver input allows for convenient remote operation.

3.4 Precise Control

The control system ensures accurate positioning of the barrier arm during operation, preventing over - travel and enhancing safety. It offers reliable control over the gate's movement, ensuring smooth and secure operation.

3.5 Adjustable Speed

With adjustable opening and closing speeds (1.2s - 3s and 2.5s - 6s), the DZ - 2211Z can be tailored to suit different traffic flow requirements. This flexibility optimizes traffic management in various settings.

3.6 Protection

With an IP54 protection grade, the gate is shielded against dust and water, making it suitable for both indoor and outdoor applications. It can withstand harsh environmental conditions, ensuring reliable performance over time.

3.7 Remote Monitoring and Control

Through RS485 communication, operators can remotely monitor and control the gate. This feature enables efficient management of multiple gates and prompt response to emergencies.

3.8 Easy Maintenance

Thanks to its modular design, the DZ - 2211Z is easy to maintain. Components can be easily accessed and replaced, minimizing downtime in case of malfunctions.
