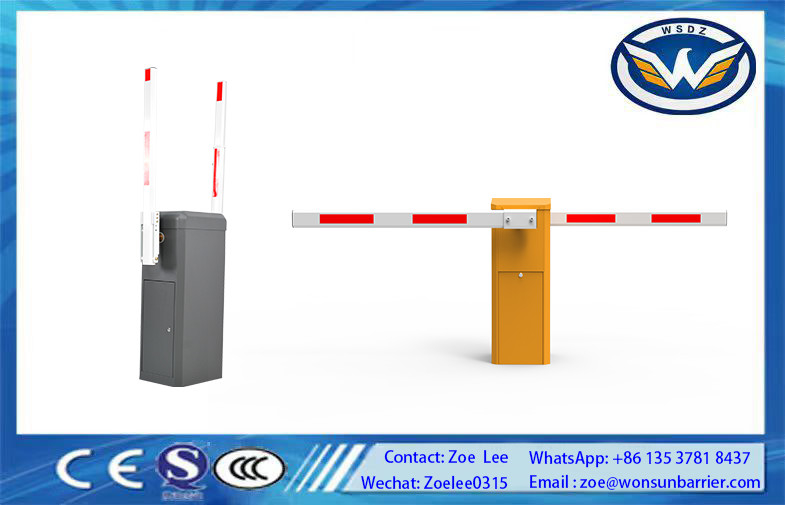

DZ - 2136 Bidirectional Barrier Gate With Two-way Arm And Two Motors

Name: DZ - 2136 Bidirectional Barrier Gate With Two-way Arm And Two Motors
Brand: Shenzhen Wonsun Machinery & Electrical Technology Co. Ltd
SKU: DZ-2136
Price: 355.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: WONSUN

Certification: CE ISO SGS

Model Number: DZ-2136

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Packed in bubble wrap firstly,and then reinforced with carton for outer packing

Delivery Time: 3-7 working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 3000 set/sets per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Two-way Arm Bidirectional Barrier Gate, Two Motors Bidirectional Barrier Gate


Name:	Dual Motor Two-way Barrier	Motor No-load Speed:	1850r/min
Boom Length:	6 Meters	Working Temperature:	-35°C To +65°C
OEM/ODM:	Supported	Place Of Original:	Guangdong,China

Name:	Dual Motor Two-way Barrier
Motor No-load Speed:	1850r/min
Boom Length:	6 Meters
Working Temperature:	-35°C To +65°C
OEM/ODM:	Supported
Place Of Original:	Guangdong,China

Description

DZ - 2136 Bidirectional Barrier Gate With Two-way Arm And Two Motors

Product Description

The DZ - 2136 Bidirectional Barrier Gate is a state - of - the - art access control device designed to meet the demands of high - traffic areas that require efficient two - way traffic management. It combines advanced technology with a robust and stylish design.

This barrier gate features a modular construction, which simplifies installation and maintenance. It is crafted with high - quality materials, ensuring durability and long - term performance even in harsh environments. The sleek and modern housing not only enhances its aesthetic appeal but also provides excellent protection for the internal components.

The DZ - 2136 is equipped with a fifth - generation DC brushless motor core. Employing the latest mold design technology and die - casting manufacturing techniques, along with brushless control speed - regulation technology, it offers remarkable performance. The left - right direction can be quickly interchanged, and without a clutch design, it ensures more reliable quality and greater convenience. The motor core adopts a two - stage worm - gear and worm drive and a three - link structure, enabling fast and smooth lifting and lowering of the barrier arms.

Parameter

Power Supply: AC220V ± 10%, 50Hz

Rated Power: 300W

Motor Type: High - Torque AC Motor

Motor Rotation Speed: 1400r/min

MTBF: ≥ 8 million operations

Barrier Arm Length: Adjustable from 3M to 6M

Input Interfaces: Multiple, including Vehicle Detector Loop Input, Infrared Sensor Input, and Manual Control Button Input

Output Interfaces: Motor Control Output, Traffic Light Control Output, and Alarm Output

Communication: RS485 for remote monitoring and control

Remote Control Distance: Up to 50M in open areas

Barrier Arm Material: High - strength Aluminum Alloy

Housing Material: Powder - coated Steel, with a thickness of 3mm

Housing Size (L * W * H): 400mm * 400mm * 1000mm

Package Dimension: 1200mm * 450mm * 500mm

Net / Gross Weight: 50KG / 55KG

Opening/Closing Speed: Adjustable from 1S to 6S

Protection Grade: IP65, dust - tight and water - resistant

Working Temperature: - 20℃ to + 60℃

Relative Humidity: ≤ 85%

Output Torque: 80N.m

Function

Bidirectional Operation: Allows for smooth and efficient two - way traffic flow. The barrier gate can be opened and closed in either direction, depending on the traffic signal or sensor input.

Adjustable Barrier Arm Length: Accommodates different installation requirements and site conditions. Users can easily adjust the length of the barrier arm to fit the width of the passageway.

Multiple Input Interfaces: Connects with various detection devices such as vehicle detectors and infrared sensors. This enables automatic opening and closing of the barrier gate based on the presence of vehicles or pedestrians.

Traffic Light Control: Outputs signals to control the traffic lights, ensuring proper synchronization with the barrier gate operation. This helps in guiding the traffic flow and enhancing safety.

Alarm Output: Generates an alarm signal in case of any abnormal conditions, such as a forced opening of the barrier gate or a system malfunction.

Remote Control: Can be operated remotely using a handheld transmitter, providing convenience for operators.

Adjustable Opening/Closing Speed: Users can customize the speed of the barrier gate's opening and closing according to the specific traffic requirements.

High - Level Protection: With an IP65 protection grade, the DZ - 2136 is well - protected against dust and water, making it suitable for both indoor and outdoor applications.

Precise Positioning: The precision control system ensures accurate positioning of the barrier arms, preventing collisions and ensuring safe operation.

Easy Maintenance: Thanks to its modular design and the characteristics of the motor core, the DZ - 2136 is easy to maintain. Components can be easily accessed and replaced in case of any malfunction. The use of advanced technologies and structures also contributes to its long service life.
