Product Details
Place of Origin: CHINA
Brand Name: WONSUN
Certification: CE ISO SGS
Model Number: CDZ-DZ-2366
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: $543/set
Packaging Details: Packed in bubble wrap firstly,and then reinforced with carton for outer packing
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 set/sets per month
Features: |
Heavy Duty, Swing Out, Remote Control |
OEM/ODM: |
Supported |
Boom Length: |
4.5meters;6meters |
Relative Power: |
200W |
Power Supply: |
DC24V/AC100V/220V,50/60HZ |
Working Temperature: |
-35°C ~ +65°C |
Name: |
LRP Integrated Barrier Machine |
Features: |
Heavy Duty, Swing Out, Remote Control |
OEM/ODM: |
Supported |
Boom Length: |
4.5meters;6meters |
Relative Power: |
200W |
Power Supply: |
DC24V/AC100V/220V,50/60HZ |
Working Temperature: |
-35°C ~ +65°C |
Name: |
LRP Integrated Barrier Machine |

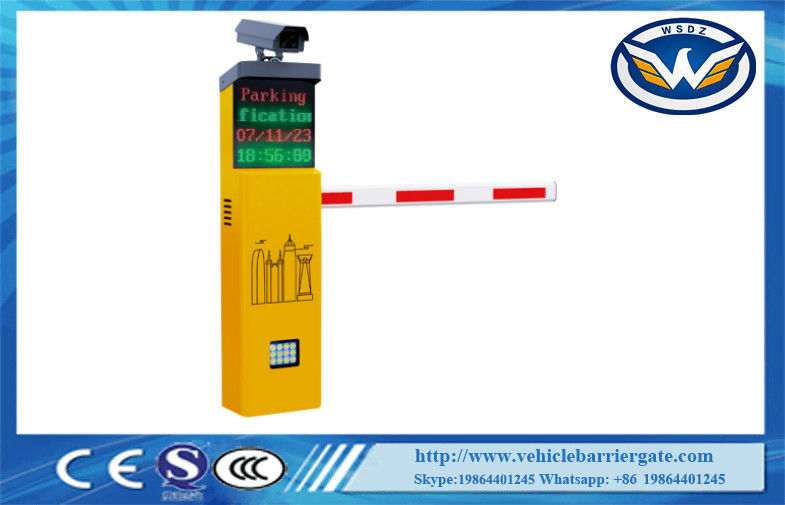

LRP Integrated Barrier Machine with Camera automatic recongnized system widely use in traffic or parking
| Model No. | CDZ-DZ-2366 |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Dimension | 341*205*1150mm |
| Net Weight | 48KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Input | 12V relay signal or Pulse Wide>100MS |
| Power Supply | DC24V/100AC,50/60HZ |
| Related Power | 200W |
| Working Temperature | -35°C ~ +65°C |
| Remote control system | ≤100m(open,sunny weather) |
| MCBF | 5million time |
| Push Button | Support |
| Remote Control | Two button remote transmitter, Distance≤100m |
| Protection class | IP54 |
| Beam Length | 4.5M;6M |
| Opening/Close Time | 1.2sec-3sec;2.5~6sec |
Functions and Features:
1.Open and close can be adjustable( 1.2sec-3sec;2.5~6sec )
2.Arm direction left and right can change easily
3.When power off ,manual open and close arm,and lock itself
4.Wireless remote
5.Phonecell IO port output
6.Loop detector anti-collision IO output
7.Open and close control input
8.12V Traffic light output
9.Traffic light signal output
11.Counting(fleet) input RS485 communication input
12.24V battery input port
13.Longer service life and a lower failure rate.
14 Camera recognize technolegy can automatically open and drop the arm
15 1850r/min no-load mortor
Service for free:
1. One year free service is supplied(not including the arm and remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
