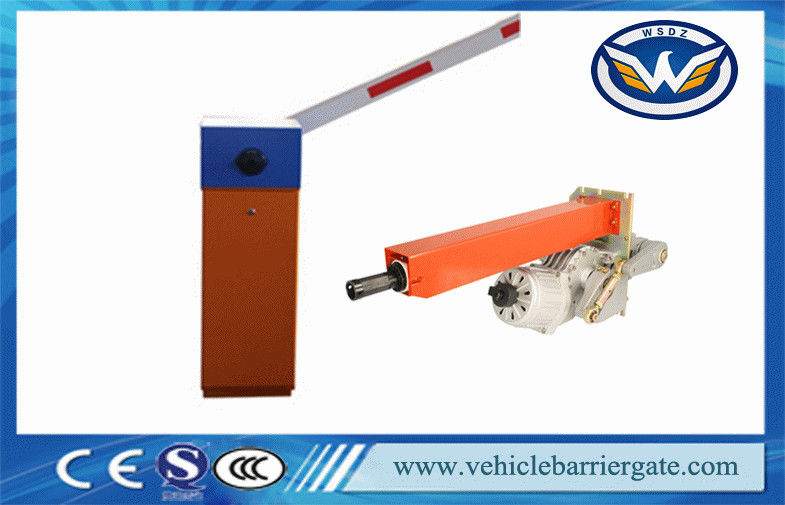

Straight Boom Manual Barrier Gates / Remote Control IP 44 Barrier Gate

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WST-116

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

security boom gate

,

electric boom barrier

Name:
Straight Boom Manual / Remote Control IP 44 Parking Barrier Gate Parking Access
Rating Voltage:
220V±10%, 110V±10%, 50/60HZ
Net Weight:
65KG
Rating Power:
100W
Arm Width & Height:
100 * 45 Mm
Remote Control Distance:
≥30m
Name:
Straight Boom Manual / Remote Control IP 44 Parking Barrier Gate Parking Access
Rating Voltage:
220V±10%, 110V±10%, 50/60HZ
Net Weight:
65KG
Rating Power:
100W
Arm Width & Height:
100 * 45 Mm
Remote Control Distance:
≥30m
Description
Straight Boom Manual Barrier Gates / Remote Control IP 44 Barrier Gate

Straight Boom Manual Parking Barrier Gates / Remote Control IP 44 Barrier Gate

Parking Barrier Gate Basic Features:

1) By security. The barrier gate will automatically go back when meets obstacles during closing.
2) The Parking Barrier Gate AC motor is more powerful and no maintenance.
3)Parking Barrier Gate Boom/arm can be chosen from 3 meters to 6 meters, and barrier gate.
4)Closing time is also arranged from 1 second to 6 seconds.
5)Parking Barrier Gate can be both right-installed and left-installed.
6)All the operation processes are soft without any noise and shaking.
7)Infrared photocell interface, loop detector interface, and IC system.
8)The interface is reserved for the other functions.
9)Green light and red light are used inside for indication of the position of the boom


Parking Barrier Gate Advanced Features:
1) A clutch key can be used to open the clutch when power is off.
2)Fan cooling machine reduces the motor temperature by high frequency using, never get heat-protecting, unique temperature calefaction design for low temperature using, prevent freezing in cold weather.
3) An exactitude aluminum alloy die-casting motor base reduces the noise and joint abrasion to prolong the barrier gate's working life.

Parking Barrier Gate Model Selection and Differences

Straight Boom Manual Barrier Gates / Remote Control IP 44 Barrier Gate 0

Parking Barrier Gate Specifications

Parking Barrier Gate Model

WST1211

Parking Barrier Gate Working Temperature

-40℃~+75℃

Parking Barrier Gate Voltage

220V±10%, 110V±10%, 50/60HZ

Parking barrier-rated power

80W

Parking Barrier Gate Relative humidity

≤90%

Parking Barrier Gate Remote control distance

≥30m

Parking Barrier Gate Net weight

48kgs

Parking Barrier Gate Speed

1S,1.8S,3S, 6S

Parking Barrier Gate Max boom length

6 meters

Parking Barrier Gate Motor Rotational speed

1400rmp

Parking Barrier Gate Protection Degree

IP44



Communication with customers

1)     Q: Connected power and pressed the open/close button but the traffic barrier gate no action.


A

Reason

Solution

1

Fuse blown

Check the fuse and power in the controller

2

The battery of the remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click the OPEN/CLOSE button on the control box

4

Same frequency interference

Check photocell and loop detector


2) Q: Connected power and press the open/close button, the traffic barrier gate will move but even when it is in the right position, the motor still runs and does not stop.


A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to the correct position

2

Main controller failure

Change a new one


3)   Q: The motor running but the traffic barrier gate arm is not in action?


A

Reason

Solution

1

Parking Barrier Gate arm at 45° position where is hard to move

Unlock the clutch and manually rotate the arm to a horizontal or vertical position then try again

2

The tension of the balancing spring is not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing, traffic barrier gate arm cannot reach the right position (90° vertical & 180° horizontal)?


A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open the barrier door and unlock the clutch to check when the arm is at 90° vertical position if the master rod covers slave one; when the arm is at 180° horizontal position if the master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when the arm at 90° vertical and 180° horizontal position



For the things that most customers want to know:
1. MOQ: for our usual order, there is no MOQ; But for customized orders, like customized color, printing LOGO, and corrosion protection base, the MOQ is 30 sets.
2. Delivery Time: as for usual orders, 3-7 days when we receive your advance deposit or full payment(including Saturday), For customized orders, it is 10-15 days after receiving your payment(including Saturday)
3. Production Potential: 80 sets of barrier gates finished in one day for the usual order, for customized order, according to your detailed requirements
4. Quality Control: 3 control lines and 6 QC for Checking, first is a motor testing line which can promise you a good and durable motor; second is the machine core testing line which can promise you stable function; and final is the barrier gate testing line which can promise you perfect working with its required boom with our experienced technicist's debugging
5. Service and Support: as for presales service, we will provide all the information you need and the questions you asked; for aftersales, we will offer long-term technical support, and we're sure that any of your feedback will receive our careful attention and prompt reply.
6. Warranty: 12 months Since the barrier gate you receive
7. Delivery Way: we can send the goods to you by Sea, Airplane, and Express, but you need to tell us which kind of way you prefer and relative information. For example, if you want to deliver by sea, please kindly send us the shipping requirements, like FOB or CIF, and your nearby port.
8. Payment: for sample order: full payment; for usual order, 30-40% advance deposit, balance before shipment for large quantity.
As for here, if you have any pending orders or inquiries, please kindly feel free to contact us, we're sure that any of your feedback will receive our careful attention and prompt reply.
