Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-2243
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: negotiate
Packaging Details: carton box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000/month
Model: |
DZ-2243 |
Motor Type: |
DC Brushless Motor |
Max Boom Length: |
8m |
Speed: |
1.2-3s, 2.5-6s, Adjustable, Optional |
Color: |
Yellow |
Protect Grade: |
IP66 |
Model: |
DZ-2243 |
Motor Type: |
DC Brushless Motor |
Max Boom Length: |
8m |
Speed: |
1.2-3s, 2.5-6s, Adjustable, Optional |
Color: |
Yellow |
Protect Grade: |
IP66 |

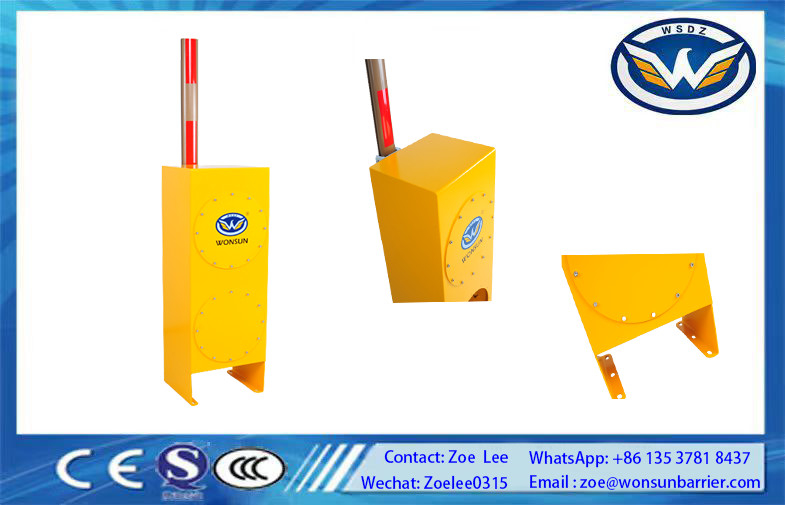

Speed Adjustable Parking Barrier Gate Waterproof Explosion IP66
Explosion Proof, Suitable for dangerous places such as gas stations. The barrier housing is 3.0mm thickness. High safty.
Technical Data:
| Model No. | DZ-2243 |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Dimension | 350 * 300 * 1050mm |
| Net Weight6 | 5KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Power Supply | DC24V |
| Motor Consumption | 160W |
| Working Temperature | -35°C to +65°C |
| Relative Humidity | ≥90% |
| MCBF | 5 million time |
| Push Button | Support |
| Remote Control | Two button remote transmitter, Distance≤100m |
| Optional Accessories | Loop detector; IR photo cell |
| Boom Length | ≤8M |
| Opening/Close Time | 1.2-3s, 2.5-6s, adjustable, optional |
Functions and Features:
1.Arm direction can be quickly interchanged
2. Run speed can adjust from 1.2-3s, 2.5-6s, adjustable, optional.
3.Arm automaticlly locking when power off, then open the barrier gate by motor wheel
4.Remote control to operate the barrier gate.
5.Auto-reverse when the boom meets obstruction.
6.Infrared photocells connector is available.
7.Loop detector connector is available.
8.Well-intergrated with car parking system equipment,with wire control(must be switch signal).
9.Connector for traffic light(AC220V,power less than 40W)
10.Offering dry contact signal for car parking system(COM,NC,NO)
11.Auto-delay when closing(adjustable)
1.Q: How long will your barrier working?
A:barrier life span more than 10 years.
2.Q: What should we do if there have problems during using?
A: We have 1 years guarantee. Any barrier problems you have, Welcome email or call me! We will provide our best professional service for you.
3.Q: First time import, how can i believe that you would send product?
A: We are verified company by Everychina, to make transaction success .
4.Q:How to import your machines?
1. We will prepare barrier and shipment for you after payment;
2. We will give you bill of loading after barrier depart our shipping port;
3. Our shipping agent will contact you when barrier arrival ;
4. You can pick up barrier by bill of loading.
