Product Details
Place of Origin: shenzhen,China
Brand Name: WONSUN
Certification: CE ,ISO
Model Number: DZ-21521
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: negotiated
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.(Vehicle Barrier Gate DC 24V Brushless Barrier Gate 6M Telescopic arm )
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 piece per month
Rated Voltage：: |
DC24V |
Rated Power: |
150W |
Speed: |
1.2s-3s, 2.5s-6s Adjustable |
Color: |
White & Yellow, Customized |
Model: |
DZ-21521 |
MTBF: |
≥5 Million Times |
Rated Voltage：: |
DC24V |
Rated Power: |
150W |
Speed: |
1.2s-3s, 2.5s-6s Adjustable |
Color: |
White & Yellow, Customized |
Model: |
DZ-21521 |
MTBF: |
≥5 Million Times |

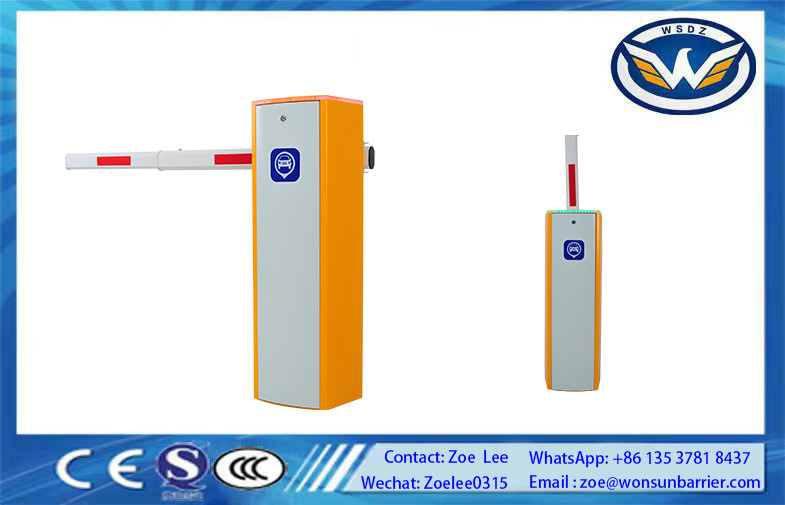

LED Light DC Brushless Traffic Barrier Gate Speed Adjustable For Parking Lot
Advantages:
1. Special housing design that LED light around the top cover
2. 5th Generation DC Brushless motor
Technical parameters:
| Working temperature | -35~+65℃ |
| Power supply | 24V DC |
| Open/close speed | 2.5s to 6s |
| Rated power | 150W |
| Driving method | DC brushless motor |
| Output torque | 59.6N.m |
| Protection grade | IP54 |
Rated speed | 1400rpm |
Relative humidity | ≥85% |
Remote control distance | ≤100M(in the open place) |
Rated current | 9.5A |
| Menu code | Parameter Scale | Parameter name | Default | Unit | Remark |
| H00-00 | 25-95 | Open speed adjustment | 40 | Corresponding PWM duty cycle 25%-95%, step size is 1 | |
| H00-01 | 25-95 | Close speed adjustment | 40 | Corresponding PWM duty cycle 25%-95%, step size is 1 | |
| H00-02 | 5-40 | Open in place decelerate angle | 35 | The larger the angle value, the less likely it is to shake the arm when it is in place. | |
| H00-03 | 5-40 | Close in place decelerate angle | 35 | The larger the angle value, the less likely it is to shake the arm when it is in place. | |
| H00-04 | 1-20 | Open accelerate adjustment | 1 | ms | The smaller the number, the faster the speed |
| H00-05 | 1-20 | Close accelerate adjustment | 8 | ms | The smaller the number, the faster the speed |
Traffic Barrier Gate Features:
1 The running speed can be adjusted from 1.2s to 3s, 2.5s-6s optional
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
10 Connector for traffic light(AC220V,power less than 40W)
11 Offering dry contact signal for car parking system(COM,NC,NO)
Please select the correct type of barrier gate according to the specifications of
the pace,and then fix the barrier cabinet with expansion bolts(refer to Figure 3).
After determined the position,the barrier gate foundation should be done according to the site conditions,
and also make the cast-in-place basement for the non-concrete ground.
FAQ:
Q1.Who we are?
We are based in Shenzhen,Guangdong, China, was founded in 2011,is the professional manufacturer
of high-end intelligent parking barrier gate.
Q3.How about payment terms our company provide?
A: T/T /Alibaba link
Q4.Which is your min order?
A: 1 piece
Q5.Model color size and craft for all barrier gates can be customized?
A: Yes, we can, welcome OEM & ODM. We also can put logo of your company on product
1 Keep the barrier gate clean
2 Check the joints ever month in case of any loose parts.
3 Check the spring elasticity after the barrier gate running 3000 times.
4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.
5 Remote control distance will be shortened or not work in case like big object screening,battery
exhausting,extreme weathers.
