Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZ-2212
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Model: |
DZ-2212 |
Motor Rotational Speed: |
1850r/mim |
Speed: |
1.2-3s, 2.5s-6s Adjuatable |
Rated Power: |
150W |
Color Option: |
Grey, Or Customized |
MTBF: |
5 Million |
Model: |
DZ-2212 |
Motor Rotational Speed: |
1850r/mim |
Speed: |
1.2-3s, 2.5s-6s Adjuatable |
Rated Power: |
150W |
Color Option: |
Grey, Or Customized |
MTBF: |
5 Million |

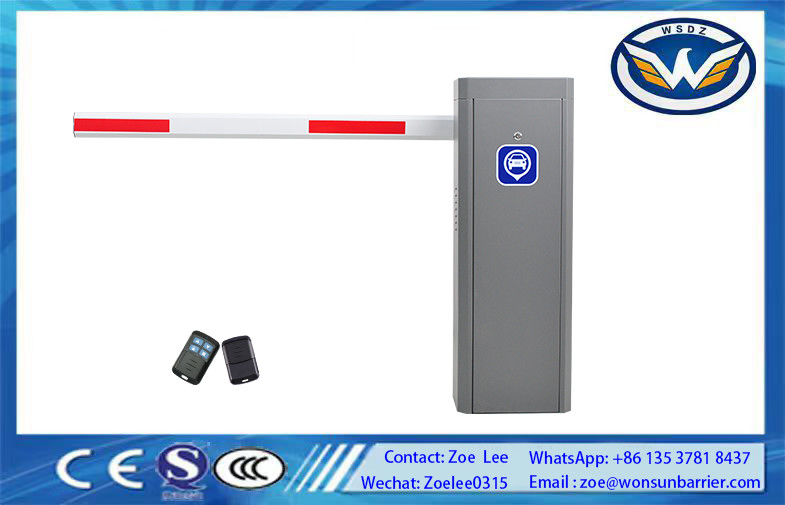

Boom Barrier DC24V Speed Adjustable Barrier Gate For Parking Lot
1. The control system adopts high-tech digital chip technology.
2. Sensing function, with digital vehicle detector
3. High-sensitivity limit switch, the pole can be switched instantly, and the positioning is accurate.
4. Stable performance, sensitive response, low noise
5. Anti-collision function. protect passengers
6. This function makes the operation stable and prolongs the service life.
7. The action adopts the most stable running mode - non-constant speed mode. Or variable speed excitation. (Slow-fast-slow) 8. The box shell is made of thickened steel, which is formed through 13 technological processes. No fading, waterproof, no rust, durable.
Specifications
| 5TH Generation DC Brushless Technical Parameter (DZ-2212) | ||
| 1 | Power Supply | DC24V |
| 2 | Rated Power | 150W |
| 3 | Motor | 5TH Generation DC Brushless Motor |
| 4 | Motor No-load Speed | 1850r/min |
| 5 | MTBF | 5 million |
| 6 | Spring | 2 pcs |
| 7 | Input interface | Photocell, Loop detector, parking system,etc |
| 8 | Output interface | motor, traffic lights, etc |
| 9 | Coummnication | RS485, TCP/IP optional |
| 10 | Remote distance | ≤100M (open, sunny weather) |
| 11 | Boom Arm | Default Aluminum Alloy Straight/Telescopic Arm 80*45mm/100*45mm |
| 12 | Housing Thickness | 1.5mm cold-roller sheet with powdercoated |
| 13 | Package dimension | 1030*380*385mm |
| 14 | Max Boom Length | Straight arm 6M/each side, Two Fence Arm 4.5M, Three Fence Arm 4M |
| 15 | Open/Close Speed | 1.2s-3s, 2.4s~6s |
| 16 | Protection Grade | IP54 |
| 17 | Working Temperature | -30℃+75℃ |
| 18 | Relative Humidity | ≤90% |
| 19 | Output Power | 56.8N.m |
Speed
| Arm Type | Arm Length(L) | Operation time(S) |
| Stright Arm | 5m-6m | 6s |
| 4.5m-5m | 4s | |
| 3m-4.5m | 3s | |
| 90 Degree Folding Arm | Less Than 4.5m | 5s |
Why choose us?
1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.
