Product Details
Place of Origin: CHINA
Brand Name: WONSUN
Certification: CE
Model Number: DZ-830
Payment & Shipping Terms
Minimum Order Quantity: 2PCS
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Sets/Month
Driving Method: |
3rd Generation DC Brushless |
Running Speed: |
1.5 Sec To 6 Sec |
MTBF: |
Over 5 Million Times |
Adaptation Of Arm: |
Straight Max Barrier Arm 6M, Two Fence Max Barrier Arm 4.5M, Three Fence Max Barrier Arm 4M |
Driving Method: |
3rd Generation DC Brushless |
Running Speed: |
1.5 Sec To 6 Sec |
MTBF: |
Over 5 Million Times |
Adaptation Of Arm: |
Straight Max Barrier Arm 6M, Two Fence Max Barrier Arm 4.5M, Three Fence Max Barrier Arm 4M |

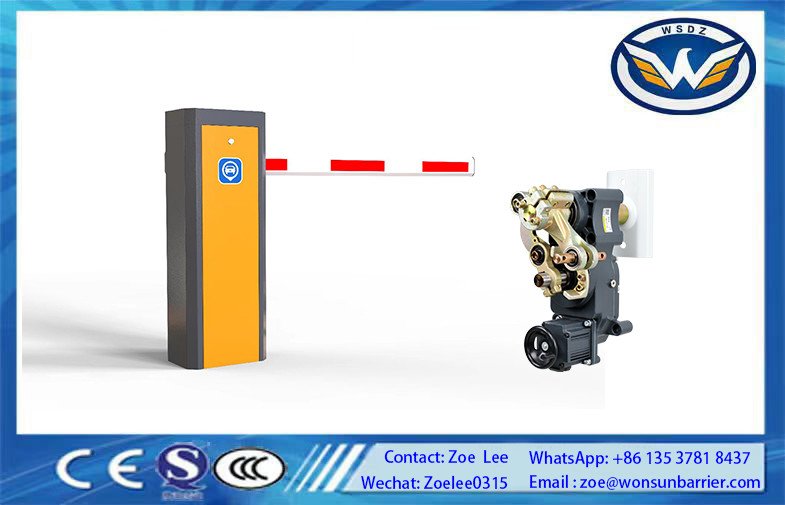

Easy Maintenance Brushless Motor Parking Barrier Gate with Worm-Gear Transmission
Product Description
Parameters:
1) Power Supply: 24/100/240V AC,50~60HZ
2) Motor: 160W 3rd Generation DC Brushless motor
3) Motor rotation: 1850r/min
4) MTBF: 5 Million
5) Spring: 2 pcs springs balance
6) Input interface: Photo cell,loop detector,parking system
7) Output interface: Motor, traffic lights
8) Coummnication: RS485 chip
9) Remote distance: ≤ 100m (open & sunny weather)
10) Arm: Default straight/telescopic Arm: ≤6M
11) Housing: 1.5mm cold-rolled steel with powder coat paint,
12) IP 54 level
13) Housing dimension (W*D*H): 343×300×950mm
14) Package dimension: 1030×380×450mm
15) G.W around: 48 KG
16) Operating temperature: -30℃ ~+70℃;
17) Humidity: ≤90%
18) Output power: 56.8N.m
Advantages:
1) Speed adjustable
2) Bi-direction main shaft, LEFT or RIGHT
3) Hall limit switch, no need adjust
4) Motor won't get heat
5) Lifetime reach 5 million times
6) Arm swing out function(for arm 80*45mm)
7) Loop detector anti-collision 10 output
8) RS485 communication input
9) Automatic arm kift function when power off (need to add power storage module)
Features & Functions
| ☆Advanced mechatronics Side-mounted design concept: structure compact, quickly assembly, easy maintenance. |
| ☆Molding production: high precision, fast efficiency, and guaranteed quality. |
| ☆Worm-gear secondary variable speed transmission: high precision, long lifetime, motor wheel design, gate opening manually when power off, no blocking, no oil leakage, large torque, low noise, can normally operation at the temperature of minus 35 degrees, etc. |
| ☆DC brushless motor design: low consumption, high efficiency, no overheating, wide speed adjustment. |
| ☆Hall limit: automatically detects the limit when power on without debugging, detecting the motor speed at all times and running at a constant speed and stable. |
| ☆ Curved triple connecting rod structure design concept, makes arm in a vertical and horizontal position, easy to adjust the arm balance, avoid to lift arm violently. |
| ☆Arm direction quickly interchanged: interchanged according to different directions on construction site, reduce inventory and capital pressure. |
| ☆Advanced DC brushless controller: use integrated chip drive, fast processing speed, large memory, good control effect, powerful function, high degree of automation; 24V low voltage power supply, adapt to global voltage, safe and reliable. |
| ☆Arm direction can be quickly interchanged. |
| ☆Barrier gate up &down signal relay switch output. |
| ☆R&G Traffic light relay switch signal output. |
| ☆External loop detector signal anti-smashing interface. |
| ☆Infrared sensor signal anti-smashing interface. |
| ☆Count mode interface. |
| ☆Arm swing-out function, when the vehicle hit the barrier gate, the arm can be swung out to avoid further damage to the vehicle and barrier machine core. |
| ☆High-sensitivity arm auto-reverse function (intensity can be adjusted). |
| ☆Parking system interface. |
| ☆RS485 communication interface. |
| ☆The backup battery interface. |
| ☆Automatic arm lift function when power off (need to add power storage module). |
DZ-830 is a hot-selling barrier gate both at home and abroad. The cover has a unique design and is highly recognizable. It is available in various colors such as yellow, gray, and rose gold. Both sides of the gate can dissipate heat. The backside, there is a non-welding handle design, which will not be deformed and rusted. It is equipped with a waterproof ring device, which is more durable, longer life, and better quality than those on the market. Look, there is a two-stage variable speed reducer inside, a third-generation DC brushless motor, rated power is 160W, adopt side-loading mode, simple and highly integrated. The three-link is made of precision-cast steel, which can be matched with two tension springs, and we have a patented anti-skid device.
The arm direction can be interchanged easily, and the arm can be lifted manually when the power is off.
The power supply is exclusively customized by ourselves.
This control board is independently developed by us and uses imported chips, has independent algorithms, and powerful functions.
