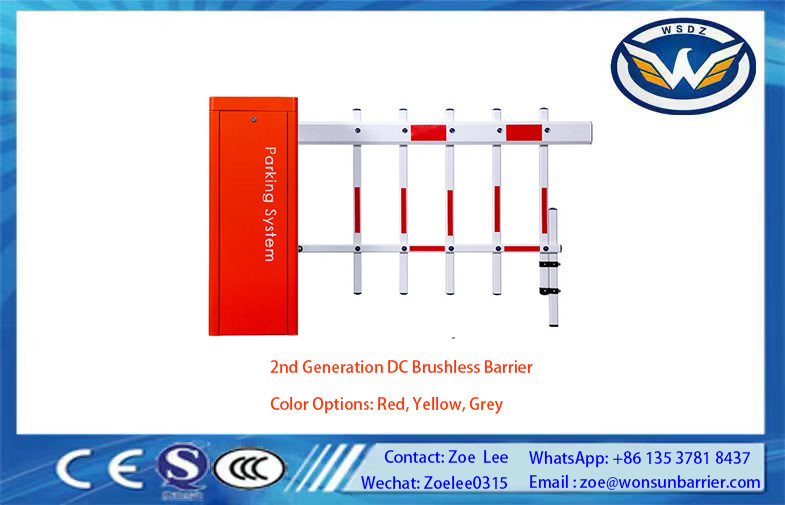

Automatic Boom Barrier for Parking System with 1.5SEC Toll Barrier Gate
Product Description
Parameters:
1) Power Supply: 24/100/240V AC,50~60HZ
2) Motor: 160W 2nd Generation DC Brushless motor
3) Motor rotation: 1850r/min
4) MTBF: 5 Million
5) Spring: 2 pcs springs balance
6) Input interface: Photo cell,loop detector,parking system
7) Output interface: Motor, traffic lights
8) Coummnication: RS485 chip
9) Remote distance: ≤ 100m (open & sunny weather)
10) Arm: Default straight/telescopic Arm: ≤6M
11) Housing: 1.5mm cold-rolled steel with powder coat paint,
12) IP 54 level
13) Housing dimension (W*D*H): 330×330×925mm
14) Package dimension: 1030×380×450mm
15) G.W around: 48 KG
16) Operating temperature: -30℃ ~+70℃;
17) Humidity: ≤90%
18) Output power: 56.8N.m
Advantages:
1) Speed adjustable
2) Bi-direction main shaft, LEFT or RIGHT
3) Hall limit switch, no need adjust
4) Motor won't get heat
5) Lifetime reach 5 million times
6) Arm swing out function(for arm 80*45mm)
7) Loop detector anti-collision 10 output
8) RS485 communication input
9) Automatic arm kift function when power off (need to add power storage module)
This product adopts the latest mold design technology, mold die-casting manufacturing technology, brushless control speed technology, and can be quickly interchanged, no clutch design, more reliable quality and more convenient use. The movement adopts two-stage worm gear transmission and curved crank arm three- link structure, and the landing rod is fast and stable. Easy maintenance and long service life .
Mechanism
The parameter for selecting the balance compressed spring
| Number | The length of boom (L=meter) | Diameter of the spring (D=mm) | Link hole selection |
| 1 | 2.5＜L＜3.5 | D=4.5 | Link hole 2 |
| 2 | 3.5≤L≤4.0 | D=5.5 | Link hole 1 |
| 3 | 4.0＜L＜5.5 | D=6.5 | Link hole 2 |
| 4 | 5.5≤L≤6.0 | D=6.5 | Link hole 1 |
The parameter for selecting the balance tension spring
| Arm type | Arm length | Spring | |
| Type | Dimension(diameter*length) | ||
| 100*45 straight arm | 6m | Tension spring | 4.5+5.5 |
| 5m | 4.0+5.5 | ||
| 4.5m | 4.5+4.5 | ||
| 4m | 4.5+4.0 | ||
| 3.5m | 4.5 | ||
| 3m | 4.5 | ||
| 80*45 straight arm | 6m | 5.5+4.0 | |
| 5m | 5.5+4.0 | ||
| 4.5m | 4.5+4.5 | ||
| 4m | 4.5+4.0 | ||
| 3.5m | 4.5 | ||
| 3m | 4.0 | ||
| 2 fence arm | 4.5m | 5.5+5.5 | |
| 4m | 4.5+5.5 | ||
| 3.5m | 4.5+4.5 | ||
| 3m | 4.5+4.5 | ||
| 90 degree arm | 5m | 5.5+4.5 | |
| 4.5m | 5.5+4.5 | ||
| 4m | 4.5+4.5 | ||
| 3.5m | 4.5+4.5 | ||
| 3m | 4.5+4.0 | ||
| 3 fence arm | 4.5m | 5.5+6.8 | |
| 4m | 5.5+5.5 | ||
| 3.5m | 4.5+5.5 | ||
| 3m | 4.5+4.5 | ||
| Remark:6.8 yellow,5.5 blue,4.5 red,4.0 green | |||
