Product Details
Place of Origin: CHINA
Brand Name: WONSUN
Certification: CE
Model Number: DZ-2135
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: $419/Set
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing
Delivery Time: 5-8 work day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 Set/Sets per Month
Features: |
Heavy Duty, Swing Out, Remote Control |
Name: |
2 Motors Automatic Boom Barrier |
Arm Type: |
Straight,fold, Fence |
OEM/ODM: |
Supported |
Max Boom Length: |
6 Meters |
Speed: |
2.5s-6s |
Features: |
Heavy Duty, Swing Out, Remote Control |
Name: |
2 Motors Automatic Boom Barrier |
Arm Type: |
Straight,fold, Fence |
OEM/ODM: |
Supported |
Max Boom Length: |
6 Meters |
Speed: |
2.5s-6s |

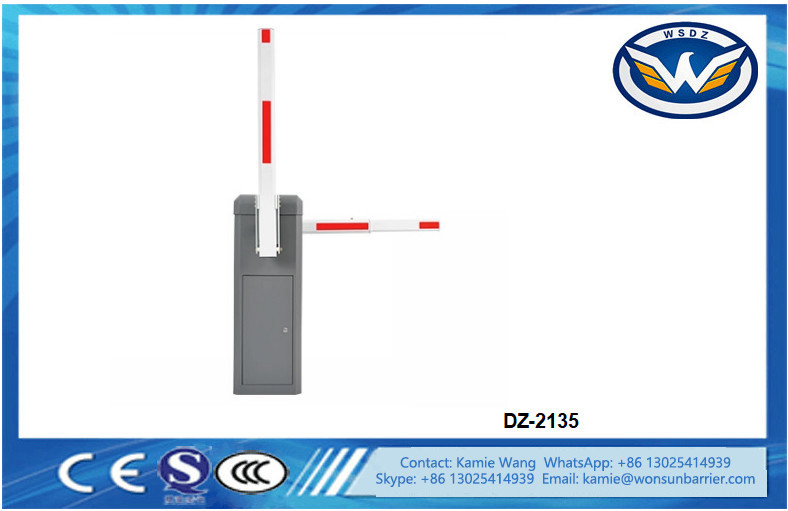

Two Motors Automatic Car Park Barriers RS485 Traffic Light Interface 24VDC Brushless Motor With Two Arm
Car Park Barrier Specification:
| Working temperature(motor): | -30℃~+70℃ |
| Rated voltage: | DC24V |
| Running speed: | 2.5s-6s |
| Rated power: | 150W |
| Remote control distance: | ≤100M(in the open place) |
| Max length of arm: | 6M straight arm or telescopic arm |
Car Park Barrier Advantages:
1. Speed adjustable from 2.5s to 6s
2. Arm direction change left or right
3. New design of antiskid device to make sure the safety.
4. All components of machine core upgraded to precision cast steel.
5. Auto-delay when closing(adjustable)
6 RS485 or CAN network communication interface(no need to install module)
Barrier arm balance adjustment
1,Please check and confirm arm status in horizon and vertical position,then tighten 2pcs M12 screw.
2,According to arm balance status, repeat adjusting the spring level of tightness of M8*140MM, make
sure the arm open and close in stable.
3,For the barrier gate with double springs,please adjust the two springs simultaneously.
4,If arm open and close shake too much, Please check below picture. Open arm shaking a lot means
spring is too tight, loose a little. Close arm
| Name | Specification | Qty | Unit | Note |
| Hexagon screw | M12*70 | 2 | Piece | Fixing the boom |
| Boom press board | 1 | piece | ||
| Mounting batten | 2 | piece | Fixing the case | |
| Expansion bolt | M12*150 | 4 | unit | Fixing the case |
| Case Key | 2 | unit | ||
| Remote controller | 2 | unit | ||
| Instruction | 1 | piece |
| Menu code | Parameter Scale | Parameter name | Default | Unit | Remark |
| H00-00 | 25-95 | Open speed adjustment | 40 |
Corresponding PWM duty cycle 25%-95%, step size is 1 |
|
| H00-01 | 25-95 | Close speed adjustment | 40 |
Corresponding PWM duty cycle 25%-95%, step size is 1 |
|
| H00-02 | 5-40 |
Open in place decelerate angle |
35 |
The larger the angle value, the less likely it is to shake the arm when it is in place. |
|
| H00-03 | 5-40 |
Close in place decelerate angle |
35 |
The larger the angle value, the less likely it is to shake the arm when it is in place. |
|
| H00-04 | 1-20 | Open accelerate adjustment | 1 | ms |
The smaller the number, the faster the speed |
| H00-05 | 1-20 | Close accelerate adjustment | 8 | ms |
The smaller the number, the faster the speed |
1. The internal wiring of this machine has been completed when it leaves the factory, please do not change it,
just connect the 220V power supply and the protective ground wire to work.
2. Traffic light interface: 2A 24V voltage traffic light use.
3. Infrared anti-smashing interface: external infrared anti-radiation device, and the switch signal of the anti-radiation
output can be connected.
4. Ground sense interface: support external ground sense. When using an external ground sensor, you only need to
connect the switch signal output by the ground sensor.
10.1 Keep the barrier gate clean
10.2 Check the joints ever month in case of any loose parts.
10.3 Check the spring elasticity after the barrier gate running 3000 times.
10.4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.
10.5 Remote control distance will be shortened or not work in case like big object screening,battery
exhausting,extreme weathers.
Service for free:
1. One year free service is supplied(not including the arm and remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
Q1.Who we are?
We are based in Shenzhen,Guangdong, China, was founded in 2011,is the professional manufacturer
of high-end intelligent parking barrier gate.
Q3.How about payment terms our company provide?
A: T/T
Q4.Which is your min order?
A: 1 piece
Q5.Model color size and craft for all barrier gates can be customized?
A: Yes, we can, welcome OEM & ODM. We also can put logo of your company on product
