Product Details
Place of Origin: CHINA
Brand Name: WONSUN
Certification: CE
Model Number: DZ-132
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: $245/Set
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing
Delivery Time: 5-8 work day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 Set/Sets per Month
Features: |
Heavy Duty, Swing Out, Remote Control |
Name: |
DZ-132 Automatic Boom Barrier Gate |
Boom Length: |
1M - 6M |
OEM/ODM: |
Supported |
Relative Humidity: |
≥90% |
Working Temperature: |
-35°C To +85°C |
Features: |
Heavy Duty, Swing Out, Remote Control |
Name: |
DZ-132 Automatic Boom Barrier Gate |
Boom Length: |
1M - 6M |
OEM/ODM: |
Supported |
Relative Humidity: |
≥90% |
Working Temperature: |
-35°C To +85°C |

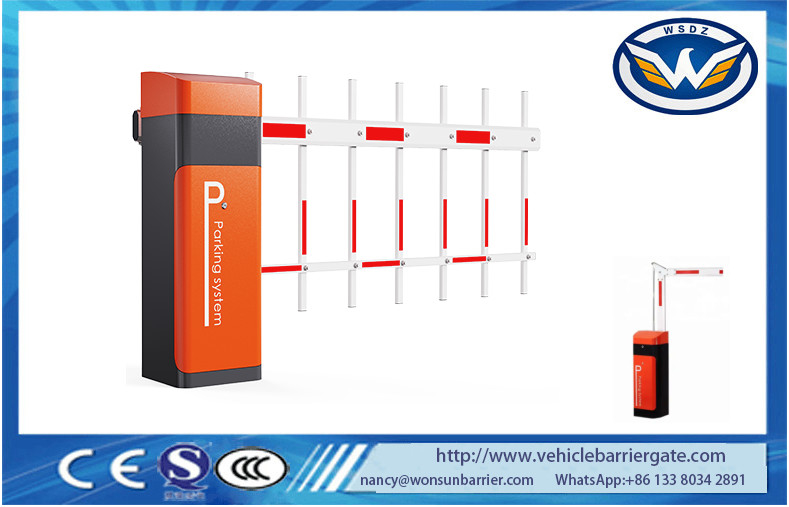

Factory direct price DC24V road barrier gate rfid system automatic boom barrier parking barrier automatic system
product description
| Model No. | DZ-132 automatic boom barrier gate |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Dimension | 352 * 302 * 1120mm |
| Net Weight | 48KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Input | 12V relay signal or Pulse Wide>100MS |
| Power Supply | DC24V |
| Motor Consumption | 80W |
| Working Temperature | -35°C to +85°C |
| Relative Humidity | ≥90% |
| MCBF | 5million time |
| Push Button | Support |
| Remote Control | Two button remote transmitter, Distance≤100m |
| Optional Accessories | Loop detector; IR photo cell |
| Beam Length | 1M - 6M |
| Opening/Close Time |
1.5sec-6sec |
Functions and Features:
1 The running speed can be adjusted from 1.5s to 6s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
10 Connector for traffic light(AC220V,power less than 40W)
11 Offering dry contact signal for car parking system(COM,NC,NO)
12Auto-delay when closing(adjustable)
13 RS485 or CAN network communication interface(no need to install module)
14 Counting interface
15 24V backup battery interface(Can be charged by using solar energy)
Service for free:
1. One year free service is supplied(not including the arm and remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
1-Can you install using loop detector or pressure sensor on it?
Yes,the standard advertising barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
Servo motor 2 years warranty, DC brushless motor 1 year warranty, We have well trained and professional sales & after-sale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5-10 working days
50-100 sets:10-15 working days
200-500 sets:15-20 working days
For special item, or need custom design package or logo, need 3-10 working days longer.
4-How about the payment terms?
T/T, western union,our company already joined the trade assurance,it will highly protect your order security.
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping
forwarder. it normally takes 7-60 days depend on different countries.
