Product Details
Place of Origin: CHINA
Brand Name: WOUNSUN
Certification: CE
Model Number: DZ-830
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: $249/set
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 5-8 work day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 3000Set/Sets per month
Color: |
Yellow，orange And Gray |
Material: |
Cold Roll Plate Or Galvanized Plate |
Remote Control Distance: |
≤100meter(open, Sunny Weather) |
Arm Type: |
Straight, Folding, Fence |
Working Temperature: |
-35℃~65℃ |
Application: |
Parking Lots, Toll Gates, Goods Yards, Railway Crossings, Commercial Premises, Apartment Block Access |
Color: |
Yellow，orange And Gray |
Material: |
Cold Roll Plate Or Galvanized Plate |
Remote Control Distance: |
≤100meter(open, Sunny Weather) |
Arm Type: |
Straight, Folding, Fence |
Working Temperature: |
-35℃~65℃ |
Application: |
Parking Lots, Toll Gates, Goods Yards, Railway Crossings, Commercial Premises, Apartment Block Access |

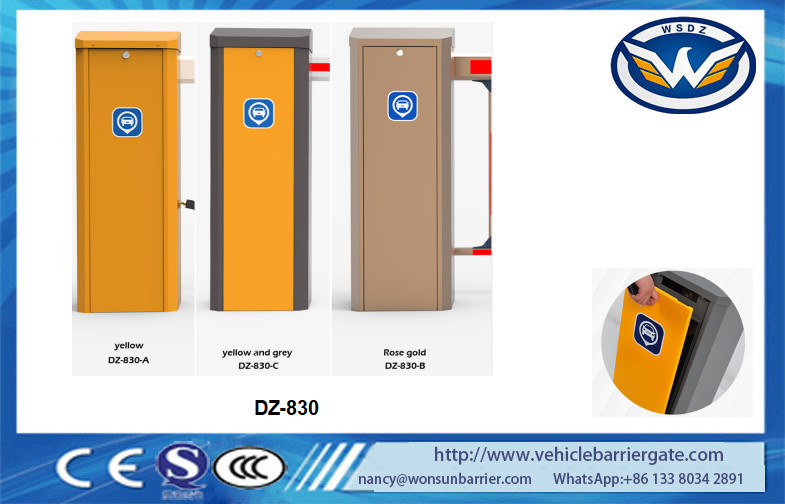

5 Million Life 24VDC Brushless Motor Fast Speed Parking Access Control Barrier Boom Barrier Gate With Swing Out
Technical parameters
| Model No. | DZ-830 |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Net Weight | 45KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Input | 24V relay signal or Pulse Wide>100MS |
| Power Supply | DC24V, AC220V/110V, 50/60Hz |
| Motor Consumption | 160W |
| Working Temperature | -35°C to +85°C |
| Relative Humidity | ≥90% |
| MCBF | 5 million time |
| Push Button | Support |
| Remote Control | Distance≤100m |
| Optional Accessories | Loop detector; photo cell |
| Beam Length | 1M - 6M |
| Opening/Close Time | 1.5sec-6sec |
| Product Name | 24VDC Brushless Motor Fast Speed Parking Access Control Barrier Boom Barrier Gate |
| Power Supply | DC24V |
| Open/Close Speed | 1.5s-6s |
| Rated Power | 160W |
| Remote Control Distance | ≤100meter(open, sunny weather) |
| Working Temperature | -35℃~65℃ |
| MTBF | >5 million times |
| Protection Grade | IP44 |
| Motor No-load Speed | 1850 r/min |
| Application | Parking Lots, Toll Gates, Goods Yards, Railway Crossings, Commercial Premises, Apartment Block Access |
Functions:
1. The running speed can be adjusted from 1.5s to 6s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
10 Connector for traffic light(AC220V,power less than 40W)
11 Offering dry contact signal for car parking system(COM,NC,NO)
12 Auto-delay when closing(adjustable)
13 RS485 or CAN network communication interface(no need to install module)
14 Counting interface
15 24V backup battery interface(Can be charged by using solar energy)( optional)
16 Arm open when power off ( add backup battery) (Optional)
17 Anti-collision alarm device( optional)
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
-------We're professional manufacturer who has our own factory in Shenzhen since 2011.
2.What is your biggest sadvantage?
----------Serve motor,support for AC and DC power,only us use this motor for barrier gate in China,rod and operation time can be adjusted,no limit switch,free-debbugging.
3.Why the price is higher than others?
-------This barrier gate combining permanent-magnet synchrous serve motor(PMSM motor),the technology is the mostt anvanced in China.At the same time,we can supply the more cheaper price barrier gate to meet different clients.
4.What's the MOQ?
-------Sample order for 1 set is supported.
5.What is your delivery time?
---------As for usual order,it is 3-5 days after received your payment with 50 sets order quanlity.
--------For OED order,it is 7-15 days after received your payment with 30 sets order quality.
6.What is thr terms of payment?
--------30%-40% advance deposite,60%-70% balance beforefor shipment for large quantity.
7.What is your Warranty?
-------- 2 year for Servo 24V DC Parking Access Control Barrier Bluetooth Boom Barrier Motor.
