Product Details
Place of Origin: CHINA
Brand Name: WONSUN
Certification: CE
Model Number: DZ-115
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: $279/Set
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing
Delivery Time: 5-8 work day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 Set/Sets per Month
Name: |
AC Motor Vehicle Barrier Gate |
Housing Dimension: |
W330mm, D300mm, H950mm |
Power Supply: |
2 2 0/1 1 0 + /- 1 0 % V A C , 5 0 /60 H Z |
Operating Temperature: |
- 25 ºC To + 7 5 ºC |
Open/Close Speed: |
1.5s-6sec Adjustable |
Application: |
Highway, Parking Lot, Hotel, Community, Factory |
Name: |
AC Motor Vehicle Barrier Gate |
Housing Dimension: |
W330mm, D300mm, H950mm |
Power Supply: |
2 2 0/1 1 0 + /- 1 0 % V A C , 5 0 /60 H Z |
Operating Temperature: |
- 25 ºC To + 7 5 ºC |
Open/Close Speed: |
1.5s-6sec Adjustable |
Application: |
Highway, Parking Lot, Hotel, Community, Factory |

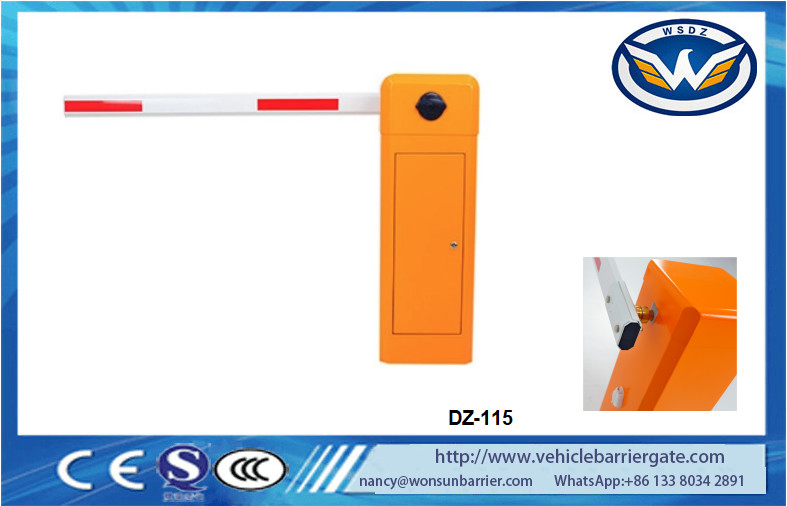

RS485 220V/110VAC Motor Safety Traffic Barier Gate Automatic Remote Control Security Gate With Arm Reversing on Obstacle
Product overview:
| PARTICULARS | DESCRIPTION |
| Application | Outdoor |
| Drive | Block continues torque motor |
| Version | Left handed or Right Handed |
| Logic Control | Included |
| Intelligence | The use of block able torque motor drive with continue torque output and the microprocessor based controller eliminates the need of friction clutches to continue maintenance free operation. |
| Power Supply | 2 2 0/1 1 0 + /- 1 0 % V A C , 5 0 /60 H z |
| Colour | Different & Distinct colour pattern as decided by owner. |
| Boom Specification | Length (3, 4, 5, 6 Mtrs) straight or articulated extruded aluminum alloy. |
| Housing Dimension | W330mm, D300mm, H950mm |
| Protection | All housing and internal parts will be rust & corrosion free metals or alloys of high strength. |
| Opening & closing time | 1.5s-6sec adjustable |
| Power off | turning the motor wheel |
| Safety | Loop detectors /infrared sensors to be used to prevent barriers from closing on the vehicle. |
| Duty cycle | 100% |
| Integration | Capable of integration with all the surveillance and access control systems. |
| MTBF | 5 million cycle |
| Certification | CE Confirm |
| Material of construction | Carbon Steel with power coated finish and the housing top cover is made out of high impact engg. Plastic with customizable SS Sheet. |
| Operating temperature |
- 25 ºC to + 7 5 ºC |
Specification:
Motor Speed and Boom Type:
| Boom type | Boom Length(m) | Opening time(S) | Height between boom and ground(M) |
| Straight boom | 6m≥L>5m | 6S | H=0.83M |
| 5m≥L>4.5m | 6S | ||
| 4.5m≥L≥3m | 6S | ||
|
Folding boom 90 degree |
5m≥L | 6S | |
|
Folding boom 180 degree |
5m≥L | 6S | |
|
Fence Boom Two-level |
5m≥L≥4m | 6S | H=0.9M |
| 4m≥L≥3m | 6S | ||
|
Fence boom Three-Level |
5m≥L≥4m | 6S | H=1.5M |
| 4m≥L≥3m | 6S |
1.Are you the manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen since 2007.
2.What is your MOQ?
For OED order,at least 30 sets.
3.What is your delivery time?
As for usual order,it is 3-5 days after received your payment with 50 sets order quanlity.
For OED order,it is 7-15 days after received your payment with 30 sets order quality.
4.Are threre any problems of your barrier gate?
As for now, don't receive any complaint of quality problems from our customer.
5.What is thr terms of payment?
30%-40% advance deposite,60%-70% balance beforefor shipment for large quantity.
6.What is your Warranty?
Our Warranty is 1 year.
1.Professional staff answer your questions in English.
2. Customized design and OEM/ODM.
3.Supported by our professional engineers.
4.Special discount of our distributors or agents in this area.
5.Welcome you to vsit our factory.
