Product Details
Place of Origin: CHINA
Brand Name: WONSUN
Certification: CE
Model Number: DZ-115
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: $279/Set
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing
Delivery Time: 5-8 work day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 Set/Sets per Month
Name: |
AC Motor Vehicle Barrier Gate |
Housing Dimension: |
W330mm, D300mm, H950mm |
MTBF: |
5 Million Cycle |
Gross Weight: |
50KGS |
Open/Close Speed: |
1.8s, 3s, 6s |
Application: |
Highway, Parking Lot, Hotel, Community, Factory |
Name: |
AC Motor Vehicle Barrier Gate |
Housing Dimension: |
W330mm, D300mm, H950mm |
MTBF: |
5 Million Cycle |
Gross Weight: |
50KGS |
Open/Close Speed: |
1.8s, 3s, 6s |
Application: |
Highway, Parking Lot, Hotel, Community, Factory |

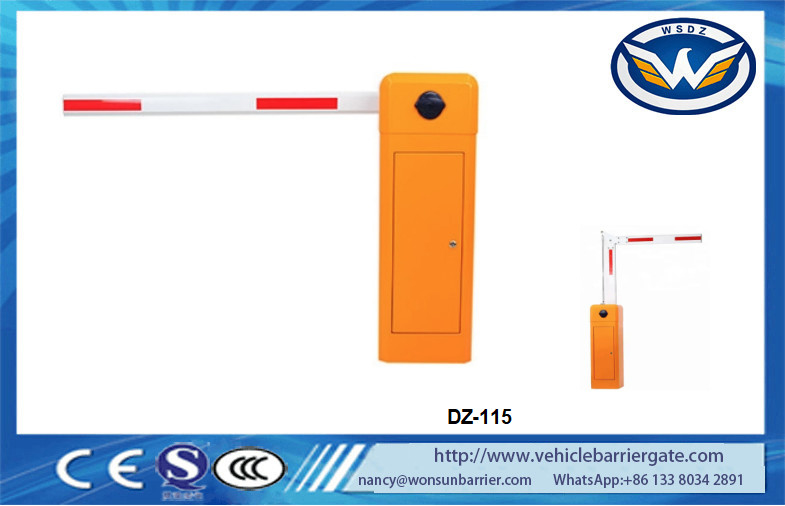

RS485 Traffic Light Interface 220/110VAC Motor Vehicle Barier Gate Auto Remote Control Security Gate For Parking Car Lot
Product overview:
| PARTICULARS | DESCRIPTION |
| Application | Outdoor |
| Drive | Block continues torque motor |
| Version | Left handed or Right Handed |
| Logic Control | Included |
| Intelligence | The use of block able torque motor drive with continue torque output and the microprocessor based controller eliminates the need of friction clutches to continue maintenance free operation. |
| Power Supply | 2 2 0/1 1 0 + /- 1 0 % V A C , 5 0 /60 H z |
| Colour | Different & Distinct colour pattern as decided by owner. |
| Boom Specification | Length (3, 4, 5, 6 Mtrs) straight or articulated extruded aluminum alloy. |
| Housing Dimension | W330mm, D300mm, H950mm |
| Protection | All housing and internal parts will be rust & corrosion free metals or alloys of high strength. |
| Opening & closing time | 1.5s-6sec adjustable |
| Power off | turning the motor wheel |
| Safety | Loop detectors /infrared sensors to be used to prevent barriers from closing on the vehicle. |
| Duty cycle | 100% |
| Integration | Capable of integration with all the surveillance and access control systems. |
| MTBF | 5 million cycle |
| Certification | CE Confirm |
| Material of construction | Carbon Steel with power coated finish and the housing top cover is made out of high impact engg. Plastic with customizable SS Sheet. |
| Operating temperature |
- 25 ºC to + 7 5 ºC |
Specification:
Motor Speed and Boom Type:
| Boom type | Boom Length(m) | Opening time(S) | Height between boom and ground(M) |
| Straight boom | 6m≥L>5m | 6S | H=0.83M |
| 5m≥L>4.5m | 6S | ||
| 4.5m≥L≥3m | 6S | ||
|
Folding boom 90 degree |
5m≥L | 6S | |
|
Folding boom 180 degree |
5m≥L | 6S | |
|
Fence Boom Two-level |
5m≥L≥4m | 6S | H=0.9M |
| 4m≥L≥3m | 6S | ||
|
Fence boom Three-Level |
5m≥L≥4m | 6S | H=1.5M |
| 4m≥L≥3m | 6S |
Our service:
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
1-Can you install using loop detector or pressure sensor on it?
Yes,the standard advertising barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
Servo motor 2 years warranty, DC brushless motor 1 year warranty, We have well trained and professional sales & after-sale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5-10 working days
50-100 sets:10-15 working days
200-500 sets:15-20 working days
For special item, or need custom design package or logo, need 3-10 working days longer.
4-How about the payment terms?
T/T, western union,our company already joined the trade assurance,it will highly protect your order security.
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping
forwarder. it normally takes 7-60 days depend on different countries.
