Product Details
Place of Origin: CHINA
Brand Name: WOUNSUN
Certification: CE ISO
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: $230/set
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 5-8 work day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 3000Set/Sets per month
Model Number: |
DZ-220 Traffic Barrier Gate |
OEM/ODM: |
Support |
Arm Type: |
Straight,fold, Fence |
Speed: |
1.5sec~6sec |
Output Method: |
56.8N.m |
Fetures: |
Heavy Duty, Swing Out, Remote Control |
Model Number: |
DZ-220 Traffic Barrier Gate |
OEM/ODM: |
Support |
Arm Type: |
Straight,fold, Fence |
Speed: |
1.5sec~6sec |
Output Method: |
56.8N.m |
Fetures: |
Heavy Duty, Swing Out, Remote Control |

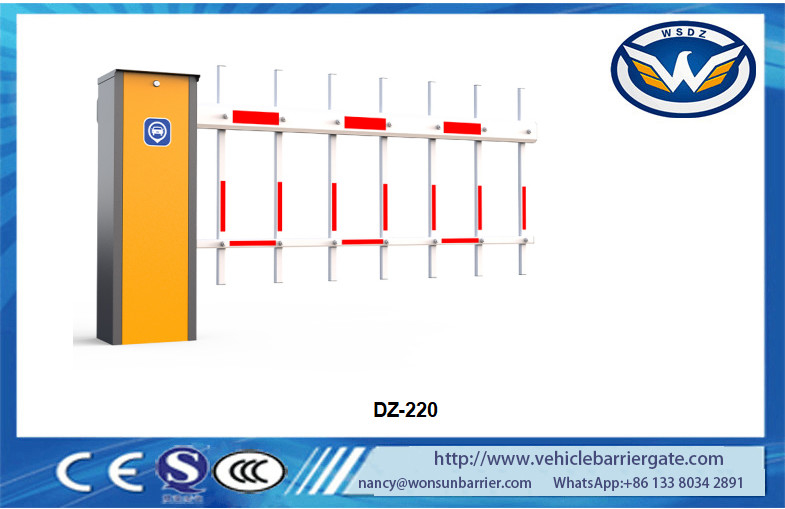

NEW Arrival Access Road 24VDC Boom Barrier Gate With Auto Reverse Function
Our Advantages:
1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.
| Model No. | DZ-220 |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Net Weight | 45KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Input | 24V relay signal or Pulse Wide>100MS |
| Power Supply | DC24V, AC220V/110V, 50/60Hz |
| Motor Consumption | 140W |
| Working Temperature | -35°C to +85°C |
| Relative Humidity | ≥90% |
| MCBF | 5 million time |
| Push Button | Support |
| Remote Control | Distance≤100m |
| Optional Accessories | Loop detector; photo cell |
| Beam Length | 1M - 6M |
| Opening/Close Time | 2.5sec-8sec |
(1) Run speed can adjust from 2.5sec to 8sec
(2) Arm automaticlly locking when power off, then open the barrier gate by motor wheel
(3) Remote control to operate the barrier gate.
(4) Auto-reverse when the boom meets obstruction.
(5) Infrared photocells connector is available.
(6) Loop detector connector is available.
(7) Well-intergrated with car parking system equipment,with wire control(must be switch signal).
(8) Connector for traffic light(AC220V,power less than 40W)
(9) Offering dry contact signal for car parking system(COM,NC,NO)
(10) Auto-delay when closing(adjustable)
Installation, commissioning and use
7.1 Equipment installation
7.1.1 Please select the correct type of barrier gate according to the specifications of
the pace,and then fix the barrier cabinet with expansion bolts(refer to Figure 3).
After determined the position,the barrier gate foundation should be done according to the site conditions,and
also make the cast-in-place basement for the non-concrete ground.
7.4 Adjust the Position of Barrier Arm
To adjust the position of the arm (for example, after exerting excessive force), please take the steps as below:
The parameter for selecting the balance tension spring
| Arm Type | The Length of arm | Selection Spring | |
|
Type
|
Spec.(diameter*Length) | ||
| Straight Arm/Folding Arm | 6M≥L＞5M | Extension Spring | (ø5.5x280)+(ø4.5x280) |
| 5M≥L≥4.5M | (ø5.5x280) | ||
| 4.5M＞L≥3M | (ø4.5x280) | ||
| Fence Arm | 5M≥L≥4M | (ø6.5x280)+(ø6.5x280) | |
| 4M＞L≥3M | (ø5.5x280)+(ø4.5x280) | ||
Our service:
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
Our service:
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or Alibaba
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
