Product Details
Place of Origin: CHINA
Brand Name: WONSUN
Certification: CE
Model Number: DZ-132
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: $245/Set
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing
Delivery Time: 5-8 work day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 Set/Sets per Month
Name: |
DZ-132 Automatic Boom Barrier Gate |
Boom Length: |
1~6M |
Dimension: |
352 * 302 * 1120mm |
Certificate: |
CE ISO |
Color: |
Yellow,Red,Blue,Orange,White Optional |
Speed: |
1.5sec~6sec |
Name: |
DZ-132 Automatic Boom Barrier Gate |
Boom Length: |
1~6M |
Dimension: |
352 * 302 * 1120mm |
Certificate: |
CE ISO |
Color: |
Yellow,Red,Blue,Orange,White Optional |
Speed: |
1.5sec~6sec |

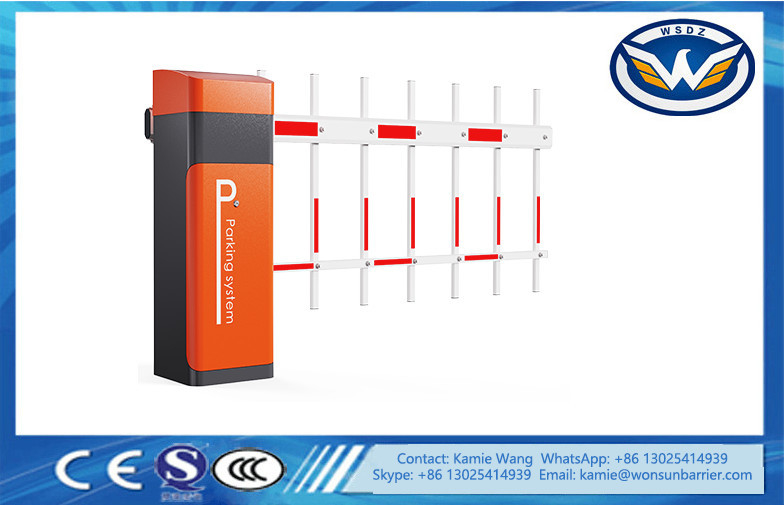

RS485 Traffic Light Interface 24VDC Motor Vehicle Access Control System Automatic Boom Barrier For Car Parking Lot
product description
| Model No. | DZ-132 automatic boom barrier gate |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Dimension | 352 * 302 * 1120mm |
| Net Weight | 48KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Input | 12V relay signal or Pulse Wide>100MS |
| Power Supply | DC24V |
| Motor Consumption | 80W |
| Working Temperature | -35°C to +85°C |
| Relative Humidity | ≥90% |
| MCBF | 5million time |
| Push Button | Support |
| Remote Control | Two button remote transmitter, Distance≤100m |
| Optional Accessories | Loop detector; IR photo cell |
| Beam Length | 1M - 6M |
| Opening/Close Time |
1.5sec-6sec |
Why choose us?
Shenzhen Wonsun Machinery & Electrical Technology Co. Ltd cares about the success of its customers. Wonsun believes in helping coustomers define the best soultion for their particulate application. With our barrier gate expertise, Wonsun can help customer desigh customers in taking the complexity out of barrier gate, pedestrian barrier series and parking system.Because our focus is on Quality with a capital Q.We just won’t settle for less.
Functions and Features:
1 The running speed can be adjusted from 1.5s to 6s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
10 Connector for traffic light(AC220V,power less than 40W)
11 Offering dry contact signal for car parking system(COM,NC,NO)
12Auto-delay when closing(adjustable)
13 RS485 or CAN network communication interface(no need to install module)
14 Counting interface
15 24V backup battery interface(Can be charged by using solar energy)
Service for free:
1. One year free service is supplied(not including the arm and remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or Alibaba
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
