Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-2243
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiate
Packaging Details: carton box
Payment Terms: T/T, Western Union
Supply Ability: 2000/month
Product Name: |
Explosion Proof 1.2s Speed Adjustable Automatic Parking Barrier Gate |
Motor Type: |
DC Brushless Motor |
Boom Length: |
4.5m |
Speed: |
1.2-4s |
Color: |
Yellow |
Protect Grade: |
IP65 |
Product Name: |
Explosion Proof 1.2s Speed Adjustable Automatic Parking Barrier Gate |
Motor Type: |
DC Brushless Motor |
Boom Length: |
4.5m |
Speed: |
1.2-4s |
Color: |
Yellow |
Protect Grade: |
IP65 |

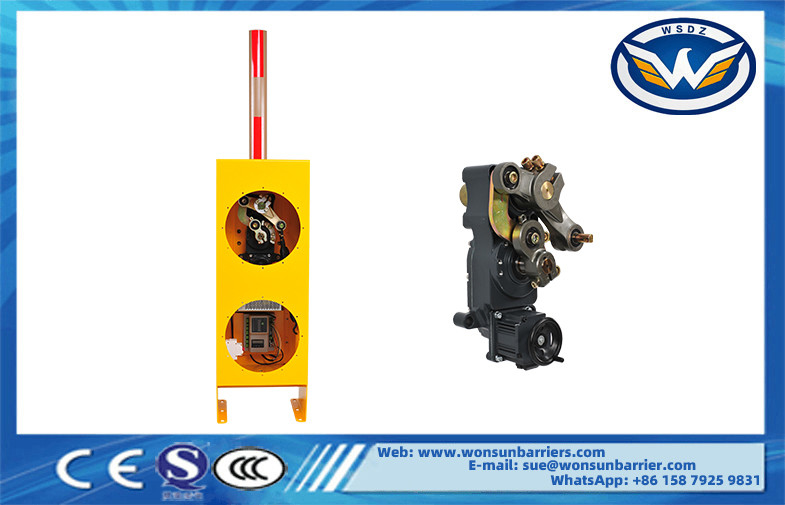

Explosion Proof 1.2s Speed Adjustable Automatic Parking Barrier Gate
Explosion Proof, Suitable for dangerous places such as gas stations. The barrier housing is 3.0mm thickness. High safty.
Technical Data:
| Model No. | DZ-2243 |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Dimension | 350 * 300 * 1050mm |
| Net Weight | 55KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Power Supply | DC24V |
| Motor Consumption | 160W |
| Working Temperature | -35°C to +65°C |
| Relative Humidity | ≥90% |
| MCBF | 5 million time |
| Push Button | Support |
| Remote Control | Two button remote transmitter, Distance≤100m |
| Optional Accessories | Loop detector; IR photo cell |
| Beam Length | 4.5M |
| Opening/Close Time | 1.2sec-4sec |
Functions and Features:
1.Arm direction can be quickly interchanged
2. Run speed can adjust from 1.2sec to 4sec.
3.Arm automaticlly locking when power off, then open the barrier gate by motor wheel
4.Remote control to operate the barrier gate.
5.Auto-reverse when the boom meets obstruction.
6.Infrared photocells connector is available.
7.Loop detector connector is available.
8.Well-intergrated with car parking system equipment,with wire control(must be switch signal).
9.Connector for traffic light(AC220V,power less than 40W)
10.Offering dry contact signal for car parking system(COM,NC,NO)
11.Auto-delay when closing(adjustable)
1.Q: How long will your barrier working?
A:barrier life span more than 10 years.
2.Q: What should we do if there have problems during using?
A: We have 1 years guarantee. Any barrier problems you have, Welcome email or call me! We will provide our best professional service for you.
3.Q: First time import, how can i believe that you would send product?
A: We are verified company by Everychina, to make transaction success .
4.Q:How to import your machines?
1. We will prepare barrier and shipment for you after payment;
2. We will give you bill of loading after barrier depart our shipping port;
3. Our shipping agent will contact you when barrier arrival ;
4. You can pick up barrier by bill of loading.
Contact us for pricelist and catalog:
Sue Zhang
Email:sue@wonsunbarrier.com
Skype:SueZhang729
Whatsapp:+86 158 7925 9831
