3.1 The running speed can be adjusted from 1.5s to 8s

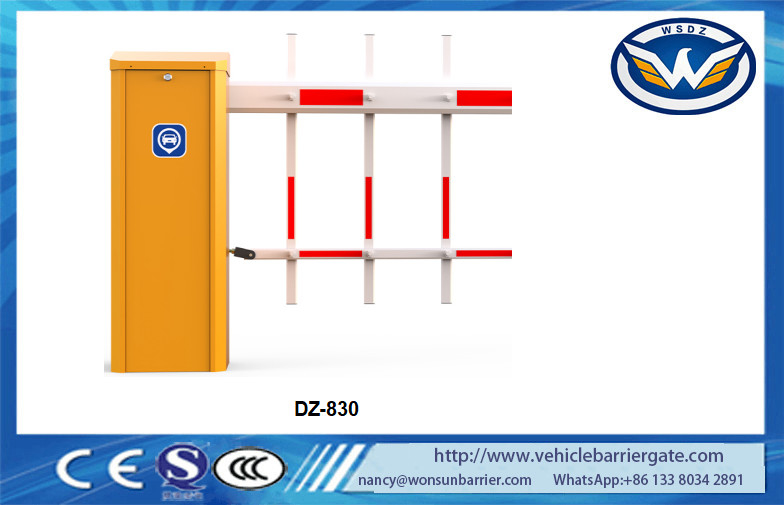

3.2 Can be quickly interchanged

3.3 Open the barrier gate by motor wheel when power off ,automatically reset after power on

3.4 Curved crank arm three- link movement structure, the operation is stable

3.5 Wireless remote control control open/close

3.6 Auto reverse function(force adjustable)

3.7 Infrared photocells connector is available

3.8 Loop detector connector is available.

3.9 Well-integrated with car parking system equipment,with wire control(must be switch signal)

3.10 Connector for traffic light(AC220V,power less than 40W)

3.11 Offering dry contact signal for car parking system(COM,NC,NO)

3.12 Auto-delay when closing(adjustable)

3.13 RS485 or CAN network communication interface(no need to install module)

3.14 Counting interface

3.15 24V backup battery interface(Can be charged by using solar energy)( optional)

Technical parameters

4.1 Working temperature(motor): -35℃~+85℃

4.2 Rated voltage:DC24V

4.3 Running speed:1.5s-8s

4.4 Rated current:8.58A

4.5 Rated power:160W

4.6 No-load speed:1850rpm

4.7 Rated speed:1400rpm

4.8 Output Power:56.8N.m

4.9 Relative humidity:≤90%

4.10 Remote control distance:≤100M(in the open place)

4.11 IP Degree:IP44

4.12 Max length of arm:6M

Function setting description:
When setting the function, please press the menu button on the control panel. The Nixie tube displays H00-00
or H00-other numbers. We correspond to the function parameter table code to enter the required function
parameter setting. For example, H00-00 is the UP ARM speed adjustment, and then press the confirm button
Enter the parameter setting, the number will be displayed on the digital tube, then press the up or down key
to set the required UP ARM speed number, and then press the confirm button to complete the ARM-up speed setting.
The other function settings are the same as the example settings.
