Product Details
Place of Origin: CHINA
Brand Name: WOUNSUN
Certification: CE
Model Number: DZ-830
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: $249/set
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 5-8 work day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 3000Set/Sets per month
Color: |
Yellow，orange And Gray |
OEM/ODM: |
Supported |
Power Supply: |
160W |
Arm Type: |
Straight, Folding, Fence |
Protection Class: |
IP44 |
Open/Close Speed: |
1.5s To 8s |
Color: |
Yellow，orange And Gray |
OEM/ODM: |
Supported |
Power Supply: |
160W |
Arm Type: |
Straight, Folding, Fence |
Protection Class: |
IP44 |
Open/Close Speed: |
1.5s To 8s |

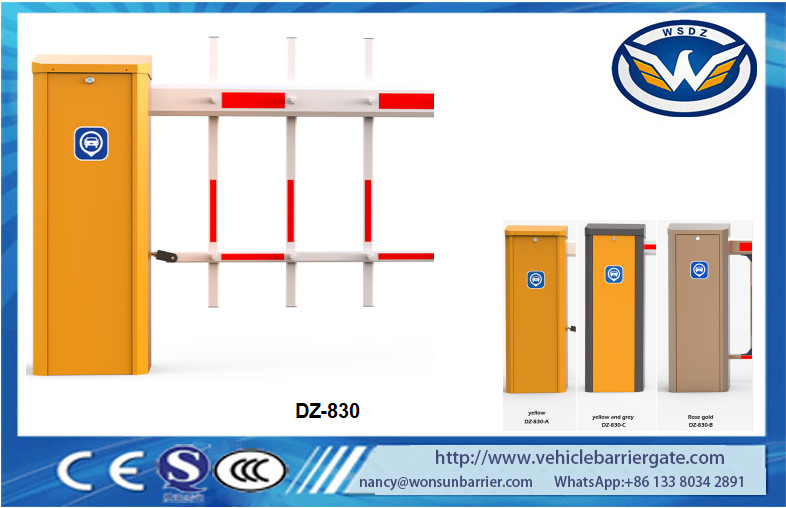

24VDC Brushless Motor Traffic Boom Barrier Gate Left And Right Interchangeable Freely
Product Description;
the 3rd generation brushless motor barrier gate from WONSUN.
This product adopts the latest mold design technology, mold die-casting manufacturing technology,
brushless control speed regulation technology, left and right interchangeable quickly,
no clutch design, more reliable quality, more convenient to use,
The running speed can be adjusted from 1.5s to 8s
Wireless remote control control open/close
Infrared photocells connector is available
Technical parameters
| Working temperatur | -35℃~+85℃ |
Rated voltage | DC24V |
| Running speed | 1.5s-8s | Rated current | 8.58A |
| Rated power | 160W | No-load speed | 1850rpm |
| Rated speed | 1400rpm | Output Power | 56.8N.m |
| Relative humidity | ≤90% | Remote control distance | ≤100M(in the open place) |
| IP Degree | IP44 | Max length of arm | Max 6M (customized) |
Features
3.1 The running speed can be adjusted from 1.5s to 8s
3.2 Can be quickly interchanged
3.3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
3.4 Curved crank arm three- link movement structure, the operation is stable
3.5 Wireless remote control control open/close
3.6 Auto reverse function(force adjustable)
3.7 Infrared photocells connector is available
3.8 Loop detector connector is available.
3.9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
3.10 Connector for traffic light(AC220V,power less than 40W)
3.11 Offering dry contact signal for car parking system(COM,NC,NO)
3.12 Auto-delay when closing(adjustable)
3.13 RS485 or CAN network communication interface(no need to install module)
3.14 Counting interface
3.15 24V backup battery interface(Can be charged by using solar energy)( optional)
4.1 Working temperature(motor): -35℃~+85℃
4.2 Rated voltage:DC24V
4.3 Running speed:1.5s-8s
4.4 Rated current:8.58A
4.5 Rated power:160W
4.6 No-load speed:1850rpm
4.7 Rated speed:1400rpm
4.8 Output Power:56.8N.m
4.9 Relative humidity:≤90%
4.10 Remote control distance:≤100M(in the open place)
4.11 IP Degree:IP44
4.12 Max length of arm:6M
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or Alibaba
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
