Product Details
Place of Origin: CHINA
Brand Name: WONSUN
Certification: CE
Model Number: DZ-115
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: $275/Set
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing
Delivery Time: 5-8 work day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 Set/Sets per Month
Name: |
AC Motor Parking Barrier Gate |
Boom Length: |
Max 6 Meters |
Color: |
White, Grey, Customized |
Housing Material: |
2mm Cold Roller Steel Plate |
Open/Close Speed: |
1.5s To 6sec Adjustable |
Housing Dimension: |
325 * 290 * 930mm |
Name: |
AC Motor Parking Barrier Gate |
Boom Length: |
Max 6 Meters |
Color: |
White, Grey, Customized |
Housing Material: |
2mm Cold Roller Steel Plate |
Open/Close Speed: |
1.5s To 6sec Adjustable |
Housing Dimension: |
325 * 290 * 930mm |

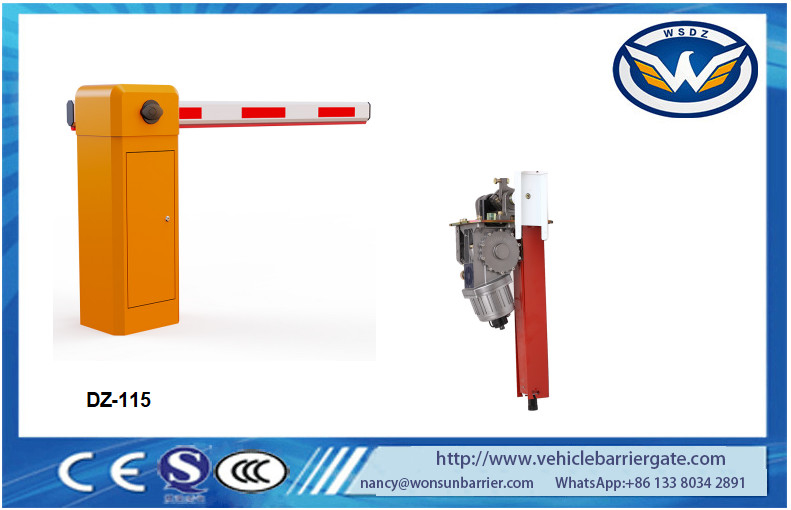

220/110V AC Motor Parking Barrier Gate Auto Control Barrier Gate for Car Parking Lots
Product overview:
| PARTICULARS | DESCRIPTION |
| Application | Outdoor |
| Drive | Block continues torque motor |
| Version | Left handed or Right Handed |
| Logic Control | Included |
| Intelligence | The use of block able torque motor drive with continue torque output and the microprocessor based controller eliminates the need of friction clutches to continue maintenance free operation. |
| Power Supply | 2 2 0/1 1 0 + /- 1 0 % V A C , 5 0 /60 H z |
| Colour | Different & Distinct colour pattern as decided by owner. |
| Boom Specification | Length (3, 4, 5, 6 Mtrs) straight or articulated extruded aluminum alloy. |
| Housing Dimension | W330mm, D300mm, H950mm |
| Protection | All housing and internal parts will be rust & corrosion free metals or alloys of high strength. |
| Opening & closing time | 1.5s-6sec adjustable |
| Power off | turning the motor wheel |
| Safety | Loop detectors /infrared sensors to be used to prevent barriers from closing on the vehicle. |
| Duty cycle | 100% |
| Integration | Capable of integration with all the surveillance and access control systems. |
| MTBF | 5 million cycle |
| Certification | CE Confirm |
| Material of construction | Carbon Steel with power coated finish and the housing top cover is made out of high impact engg. Plastic with customizable SS Sheet. |
| Operating temperature |
- 25 ºC to + 7 5 ºC |
Functions & Features
A: Boom backtrack function:
The boom will rise up if it comes across obstacles when falling. And it will stop if it hits something when rising.
B: Infrared photocell function:
If the infrared signal is cut off when the boom is falling, the boom will rise up automatically.
C: R&G light terminal:
The light will turn green only when the boom is at the vertical position. Red light is for other positions.
D: Loop detector terminal:
If the vehicles detector is installed correctly, the boom will automatically rise up when there is some press of the vehicle on the loop. and it iwll automatically fall after the vehicles leaves the loop.
Our service:
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or Alibaba
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
