Product Details
Place of Origin: CHINA
Brand Name: WOUSUN
Certification: CE
Model Number: DZ-2228
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: $249/set
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000Set/Sets per month
Material: |
1.5mm Thickness Galvanized Plate Sheet Or Cold Roll Steel Sheet |
Arm Type: |
Straight Arm, Fence Arm, Folding Arm |
Size: |
280*280*975mm(L*W*H) |
Rated Power: |
200W |
Open/Close Speed: |
2.5s-8s, Adjustable |
Output Power: |
56.8N.m |
Material: |
1.5mm Thickness Galvanized Plate Sheet Or Cold Roll Steel Sheet |
Arm Type: |
Straight Arm, Fence Arm, Folding Arm |
Size: |
280*280*975mm(L*W*H) |
Rated Power: |
200W |
Open/Close Speed: |
2.5s-8s, Adjustable |
Output Power: |
56.8N.m |

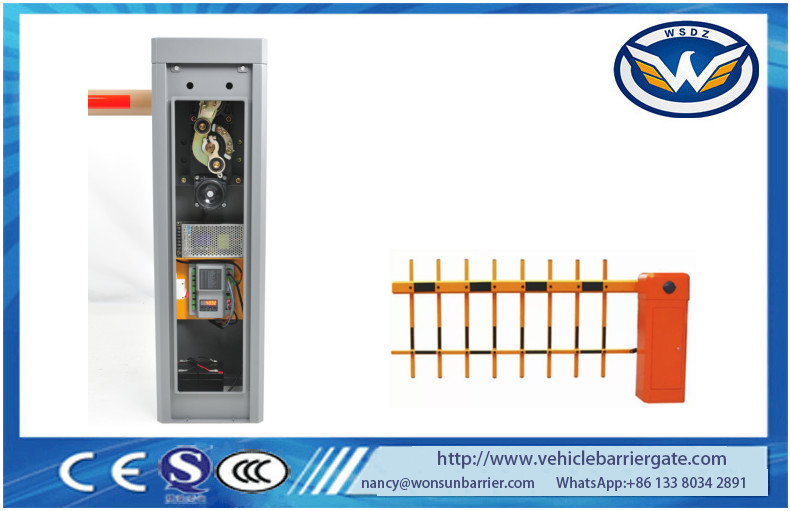

Automatic Traffice Boom Barrier Non Spring 24VDC Brushless Motor With 6m Arm
We are a professional intelligent parking barrier gate manufacturer,which established at 2010, with more than 13 years experience of researching and developing barrier gate, we have nearly 1200sqm workshop for 4 zones,about 30 experienced and skilled workers, daily production of 60 sets boom barrier gate.
product description
| Name | Non-spring Traffic Barrier Gate |
| Model Nuber | WH-DZ-2228 |
| Operation Time | 2.5Sec. - 8Sec. adjustable |
| Arm Type | Straight arm,fence arm,folding arm |
| Power Supply | DC24V |
| Rated Power | 200W |
| Size | 280*280*975mm(L*W*H) |
| Material | 1.5mm thickness Galvanized plate sheet or cold roll steel sheet |
| Remote Control Distance | ≤50meters( open, sunny weather) |
| Power Off | gate opening by manually device for loss of power |
| Working Temperature | -35℃ to +65℃ |
| MTBF | 10 million times |
| MOQ | 1 SET |
Functions:
1. The running speed can be adjusted from 2.5s to 8s adjustable
2 Can be freely interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
10 Connector for traffic light(AC220V,power less than 40W)
11 Offering dry contact signal for car parking system(COM,NC,NO)
12 Auto-delay when closing(adjustable)
13 RS485 or CAN network communication interface(no need to install module)
14 Counting interface
15 24V backup battery interface(Can be charged by using solar energy)( optional)
16 Arm open when power off ( add backup battery) (Optional)
17 Anti-collision alarm device( optional)
Packing &Shipping
We use strong carton case with air bubble filled inside to protect products and save your cost.
| Quantity(sets) | 1 - 50 | 51 - 100 | 101 - 200 | >200 |
| Lead time (days) | 5 | 7 | 10 | To be negotiated |
Service for free:
1. One year free service is supplied(not including the arm and remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or Alibaba
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
