Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZ-1380
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Product Name：: |
0.6s Highway Traffic Boom Barrier Gate With 10 Million Times Speed Adjustable |
Rating Voltage：: |
24/100/240VAC, 50/60Hz |
Boom Length: |
2.5m Stright Arm |
Speed:: |
0.6s-6s |
Housing Material: |
2mm Cold Roller Steel Plate |
Support OEM/ODM:: |
Yes |
Product Name：: |
0.6s Highway Traffic Boom Barrier Gate With 10 Million Times Speed Adjustable |
Rating Voltage：: |
24/100/240VAC, 50/60Hz |
Boom Length: |
2.5m Stright Arm |
Speed:: |
0.6s-6s |
Housing Material: |
2mm Cold Roller Steel Plate |
Support OEM/ODM:: |
Yes |

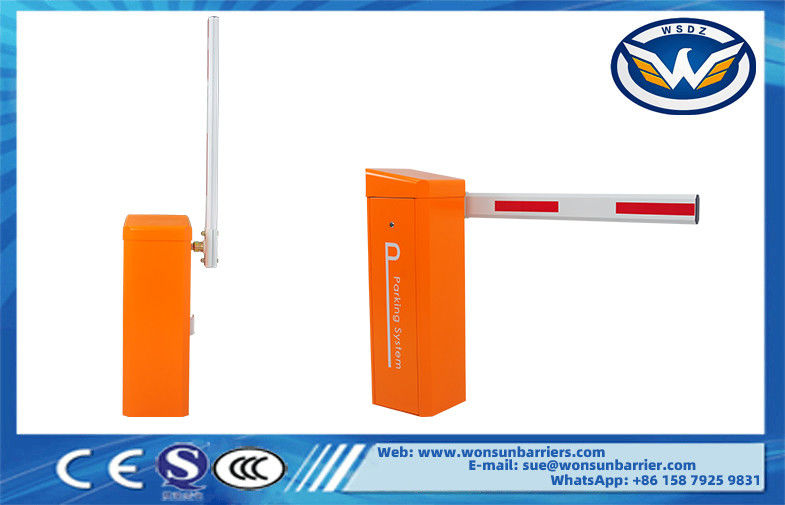

0.6s Highway Traffic Boom Barrier Gate With 10 Million Times Speed Adjustable
Quick Detail:
Applications:
Fast Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time can be 0.6s. It can be used for highway toll, parking system, factory gate, and so on.
Specifications
|
Model |
DZ-1380 |
|
Working Temperature |
-35℃～+65℃ |
|
Voltage |
24/100/240VAC, 50/60HZ |
|
Rated power |
400W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
50kgs |
|
Speed |
0.6S-6S Adjustable |
|
Boom length |
2.5 meters |
|
Motor Rotational speed |
3000r/min |
|
Protection Degree |
IP54 |
Description
1) This car park barrier provides open/close time: 0.6sec - 6 sec Adjustable
2) Straight arm with rubber bar, Max.length following: 2.5 m for 0.6 sec with anti-collision
3) Exclusive of LED light bar,remoter, boom bracket and anti-collision mechanism: need to buy extrally
4) Optional boom arm direction as leftward or rightward
5) Color: Orange
Function:
1. Simple structure, easy installation & maintenanceTorque motor,steady,low noise,free maintenance
2. 2mm cold-rolled plate heavy duty case with IP54 protecion Anti-collision protects boom arm
3. Arm auto reverse function
4.Control via remoter, push button or PC
Communication with customers
1) Q: Connected power and press open/close button but electronic barrier gate no action?
|
A |
Reason |
Solution |
|
1 |
Fuse blown |
Check fuse and power in controller |
|
2 |
Battery of remote control powered off |
Change a new one |
|
3 |
External protection circuit break or at protecting status |
Open the barrier door and click OPEN/CLOSE button on control box |
|
4 |
Same frequency interference |
Check photocell and loop detector |
2) Q:Connected power and press open/close button, electronic barrier gate will move but even when it is at right position, the motor still running and not stop?
|
A |
Reason |
Solution |
|
1 |
Limit switch |
Adjust the horizontal/vertical limit switch to correct position |
|
2 |
Main controller failure |
Change a new one |
3) Q: Motor running but electronic barrier gate arm no action?
|
A |
Reason |
Solution |
|
1 |
Barrier arm at 45° position where is hard to move |
Unlock clutch and manually rotate arm to horizontal or vertical position then try again |
|
2 |
Tension of balancing spring not suitable |
Adjust spring exactly |
|
3 |
Low working voltage |
Check the voltage and power |
4) Q: When opening/closing,electronic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?
|
A. |
Reason |
Solution |
|
1 |
Length adjustment of connecting rod not correct |
Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line |
|
2 |
Nuts on the limit switch loose |
Tighten the nuts when arm at 90° vertical and 180° horizontal position |
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.
Contact us for pricelist and catalog:
Sue Zhang
Email:sue@wonsunbarrier.com
Skype:SueZhang729
Whatsapp:+86 158 7925 9831
