Product Details
Place of Origin: CHINA
Brand Name: WONSUN
Certification: CE
Model Number: DZ-2125
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 7 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Sets/Month
Drving Method: |
DC Brushless Motor |
IP Rate: |
54 |
Motor No-load Speed: |
1850r/min |
Max Boom Length: |
4.5m |
MTBF: |
5 Million Times |
Delivery: |
By Sea:big Order(more Than 100 Sets) Cheap,suggested By Air Or Express:mall Order(1-15 Sets),quick And Cheap,suggested |
Drving Method: |
DC Brushless Motor |
IP Rate: |
54 |
Motor No-load Speed: |
1850r/min |
Max Boom Length: |
4.5m |
MTBF: |
5 Million Times |
Delivery: |
By Sea:big Order(more Than 100 Sets) Cheap,suggested By Air Or Express:mall Order(1-15 Sets),quick And Cheap,suggested |

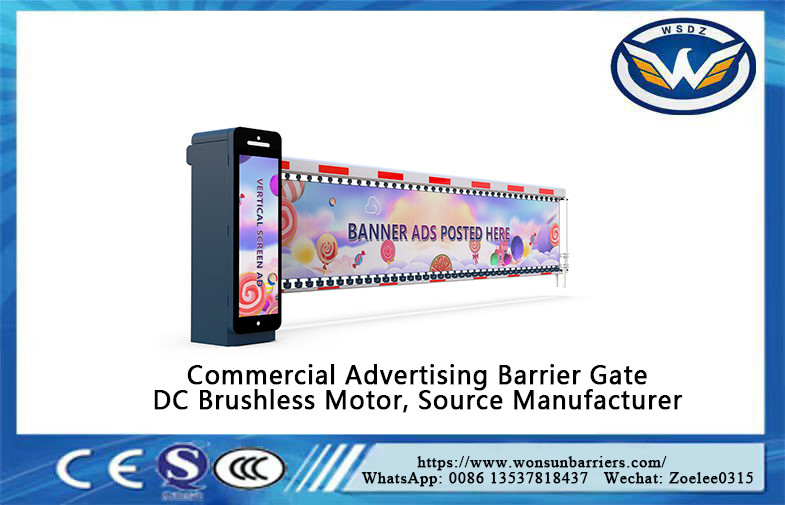

Wonsun Commercial Advertising Durable Smart Parking Barrier Gate With High Quality
Introduction
We are a professional car park barrier gate manufacture, which established at 2010, with more than 12 years experience of researching and developing barrier gate, we have nearly 1200sqm workshop for 4 zones, about 30 experienced and skilled workers, daily production of 60 sets boom barrier gate. We are committed to providing more stable, more practical and environmentally friendly parking barrier gate for the customers who are in the field of the access control system.
Parameter
Working Temperature: -30℃~+70℃
Power Supply: DC24V
Open/close Speed: 4Sec-8Ｓec
Rated Power: 250W
Driving Method； DC Brushless Motor
Output Power:78.8N.m
Remote Control Distance:≤100m(open,sunny weather)
Protection Grade: IP54
Motor No - load Speed:1850r/min
Max Boom Length:4.5m
Advantage
Features
1. The operation speed can be adjusted(4sec to 8sec).
2. Arm direction can be quickly interchanged.
3. Barrier gate up &down signal relay switch output.
4. R&G Traffic light relay switch signal output.
5. External loop detector signal anti-smashing interface.
6. Infrared sensor signal anti-smashing interface.
7. Count mode interface.
8. Arm swing out function, when vehicle hit the
barrier gate,the arm can be swing out to avoid further
damage on the vehicle and barrier machine core.
9. High-sensitivity arm auto reverse function
(intensity can be adjusted).
10. Parking system interface.
11. RS485 communication interface.
12. Power off the backup battery interface.
13.Automatic arm lift function when power off (need to add power storage module).
