Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSCP661
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Standard Voltage: |
DC12V |
Extended Height: |
340MM |
Dimension: |
357*370*82.5MM |
Current: |
0.4A |
Max Bearing Weight: |
5 T |
Remote Control Distance: |
≥30m |
Standard Voltage: |
DC12V |
Extended Height: |
340MM |
Dimension: |
357*370*82.5MM |
Current: |
0.4A |
Max Bearing Weight: |
5 T |
Remote Control Distance: |
≥30m |

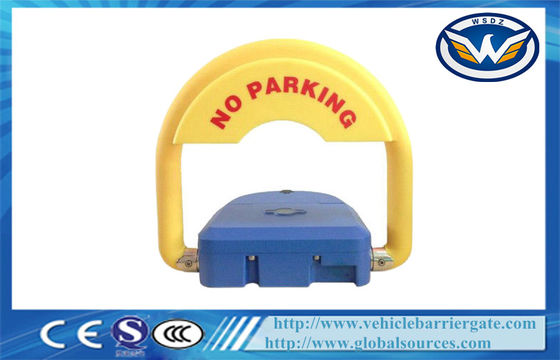

Automatic Car Park Lock Die-casted Zinc Alloy Easy Installation
Quick Detail:
1. Name: Parking Lock
2. Protection Grade: IP68
3. Application: Parking System
4. Standard Voltage: DC12V
5. Operational Current: 0.4A
6. Certificate: CE, ISO, SGS
7. Net Weight: 8KG
8. Up to Down Time: 4-6s
Specification
|
Voltage |
DC12V |
Battery |
DC12, 7Ah |
|
Dimension |
357×370×82.5mm |
Current |
0.4A |
|
Running Time |
4～6s |
Extended Height |
340mm |
|
Remote Distance |
≤15M |
Working Temperature |
-35℃～+55℃ |
|
Weight Born |
5t |
IP Class |
IP68 |
Functions & Features:
1. Energy-saving; the battery is a best product in China and the power in it will last for half a year.
2. Safe; the power connection is anti-disconnecting design in case that the user misplaces the battery causing short circuit; battery installation is easy.
3. Durable; the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.
4. Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.
5. Auto-repositioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will reposition vertically, unless the user uses remote control to put it horizontally.
6. Noise-free; bearing transmission design of the motor makes almost zero noise. It is beneficial for battery and motor longevity and lesser friction.
7. Burglarproof; the mounting bolts are placed inside of the cabinet. No one can open it without key.
8. Easy Installation: four prepared holes at the bottom of the cabinet makes it easy to install.
Parking Curb
Model Number: WSCP661
1. Dimension: 550*120*100 thickness: 3.5MM
2. Aluminum die-casting alloy can resist heavy car pressure.
3. Colorfast and ultraviolet-proof high hardness electrostatic spraying process is not debonded.
4. 3M warning reflective film is colorfast and not easy to be debonded.
