Product Details
Place of Origin: shenzhen,China
Brand Name: WONSUN
Certification: CE ,ISO
Model Number: DZ-2228
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: negotiated
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.(Vehicle Barrier Gate DC 24V Brushless Barrier Gate 6M Telescopic arm )
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 piece per month
Features: |
Anti-skid |
Rated Voltage：: |
BLDC24V |
CE: |
YES |
Running Speed: |
2.5s-8s |
Working Temperature(motor): |
-30℃~+70℃ |
Product Name: |
Vehicle Barrier Gate |
Features: |
Anti-skid |
Rated Voltage：: |
BLDC24V |
CE: |
YES |
Running Speed: |
2.5s-8s |
Working Temperature(motor): |
-30℃~+70℃ |
Product Name: |
Vehicle Barrier Gate |

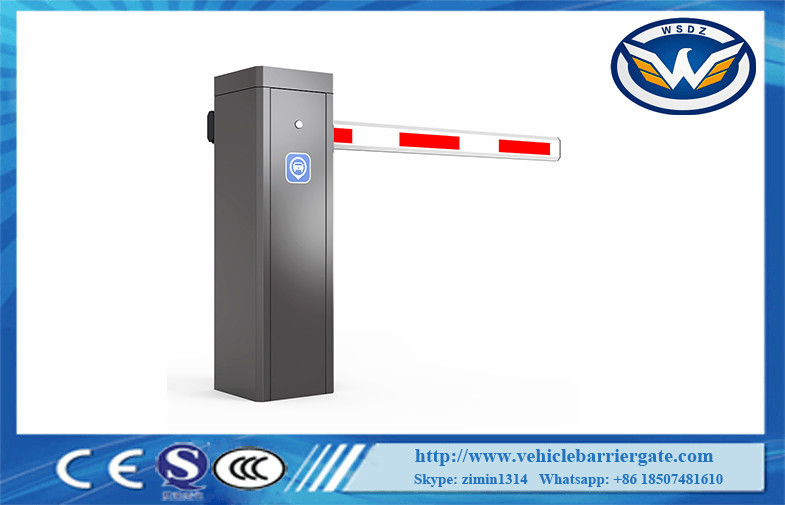

New Design Non-spring 24V DC Brushless Motor Vehicle Barrier Gate Parking Boom Barrier Without Spring
Vehicle Barrier Parameters:
| Working temperature | -35~+65℃ |
| Power supply | 24V DC |
| Open/close speed | 2.5s to 6s |
| Rated power | 140W |
| Driving method | DC brushless motor |
| Output torque | 59.6N.m |
| Protection grade | IP54 |
Vehicle Barrier Gate Features:
1 The running speed can be adjusted from 2.5s to 8s
2 Can be quickly interchanged
3 No spring design
4. Anti-skid design, more safe.
Control board functions:
When setting the function, please press the menu button on the control panel. The Nixie tube displays
H00-00 or H00-other numbers. We correspond to the function parameter table code to enter the required
function parameter setting. For example, H00-00 is the UP ARM speed adjustment, and then press the
confirm button Enter the parameter setting, the number will be displayed on the digital tube, then press
the up or down key to set the required UP ARM speed number, and then press the confirm button to
complete the ARM-up speed setting.
| Menu code | Parameter | Parameter name | Default | Unit | Remark |
| H00-00 | 25-95 | Open speed adjustment | 40 | Corresponding PWM duty cycle | |
| H00-01 | 25-95 | Close speed adjustment | 40 | Corresponding PWM duty cycle | |
| H00-02 | 5-40 | Open in place decelerate angle | 35 | The larger the angle value, the | |
| H00-03 | 5-40 | Close in place decelerate angle | 35 | The larger the angle value, the | |
| H00-04 | 1-20 | Open accelerate adjustment | 1 | ms | The smaller the number, the faster |
| H00-05 | 1-20 | Close accelerate adjustment | 8 | ms | The smaller the number, the faster |
Menu code | UP ARM | DOWN ARM | ||||
| H00-00 | H00-02 | H00-04 | H00-01 | H00-03 | H00-05 | |
| Medium Octagonal arm 3m 1.8s(without rubber) | 95 | 30 | 8 | 95 | 30 | 8 |
| Medium Octagonal arm 3m1.8s(with rubber) | 95 | 25 | 8 | 95 | 25 | 8 |
| Large Octagonal arm 4.5m 3s(without rubber) | 45 | 30 | 10 | 45 | 30 | 10 |
| Large Octagonal arm 6m 5s(with rubber) | 35 | 40 | 10 | 35 | 40 | 10 |
| 3m round arm 1.8s | 95 | 25 | 8 | 95 | 25 | 8 |
(the parameter is based on the company’s arm)
1 Keep the barrier gate clean
2 Check the joints ever month in case of any loose parts.
3 Check the spring elasticity after the barrier gate running 3000 times.
4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.
5 Remote control distance will be shortened or not work in case like big object screening,battery exhausting,extreme weathers.
Application Of Vehicle Barrier Gate
1. Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.
2. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
3. Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
Competitive Advantage
1. Friendly and professional customer service people help you in 16 hours.
2. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell: For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
