Product Details
Place of Origin: shenzhen,China
Brand Name: WONSUN
Certification: CE ,ISO
Model Number: DZ-2135
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: negotiated
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.(Vehicle Barrier Gate DC 24V Brushless Barrier Gate 6M Telescopic arm )
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 piece per month
Rated Voltage：: |
DC24V |
No-load Speed: |
1850rpm |
Max Length Of Arm: |
6m Telescopic Arm/ Straight Arm |
Running Speed: |
2.5s-6s |
Rated Torque: |
59.6N.m |
Product Name: |
2 Barrier Arms 24V BLDC Brushless Motor With Two Motors Traffic Barrier Gate For Vehicle Control |
Rated Voltage：: |
DC24V |
No-load Speed: |
1850rpm |
Max Length Of Arm: |
6m Telescopic Arm/ Straight Arm |
Running Speed: |
2.5s-6s |
Rated Torque: |
59.6N.m |
Product Name: |
2 Barrier Arms 24V BLDC Brushless Motor With Two Motors Traffic Barrier Gate For Vehicle Control |

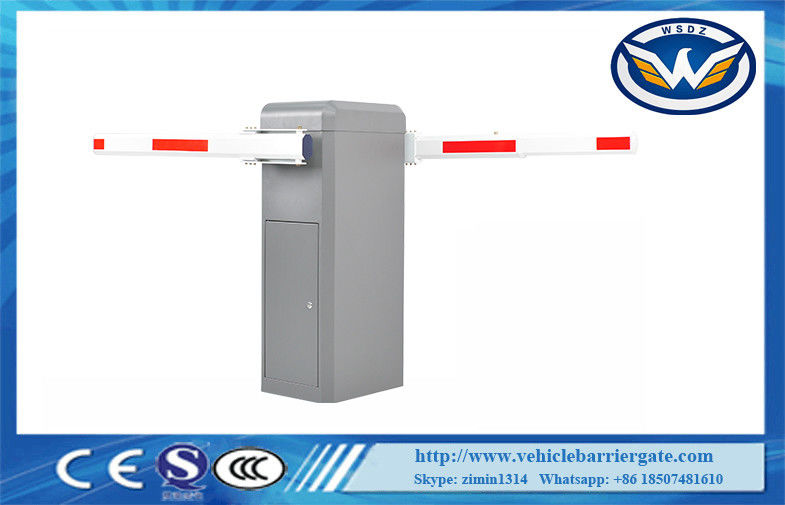

2 Barrier Arms 24V BLDC Brushless Motor With Two Motors Traffic Barrier Gate For Vehicle Control
Thank you for purchasing the 5th generation brushless motor barrier gate from WONSUN. This product
adopts the latest mold design technology, mold die-casting manufacturing technology, brushless control
speed regulation technology, left and right interchangeable quickly, no clutch design, more reliable quality,
more convenient to use, the movement adopts two-stage worm gear drive, Three-curved connection rod
structure, and the arm works fast and stable. Easy maintenance and long service life.
| Arm type | Arm Length(L) | Operation time(S) | Height between arm and ground (M) |
| Straight arm | 6m≥L>5m | 5S | H=0.83m, height of arm center from ground level |
| 5m≥L≥4.5m | 4S | ||
| 4.5m>L≥3m | 3S | ||
| 90°folding arm | L≤5m | 5S | |
| 180°folding arm | L≤5m | 5S | |
| Two fence arm | 5m≥L≥4m | 6S | H=0.9m,height of arm center from ground level |
| 4m>L≥3m | 3S | ||
| Three fence arm | 5m≥L≥4m | 6S | H=1.5m,height of arm center from ground level |
| 4m>L≥3m | 5S |
Traffic Barrier Gate Specification:
|
Working temperature(motor): |
-30℃~+70℃ |
|
Rated voltage: |
DC24V |
|
Running speed: |
2.5s-6s |
|
Rated power: |
150W |
|
Remote control distance: |
≤100M(in the open place) |
|
Max length of arm: |
6M straight arm or telescopic arm |
Traffic Barrier Gate Advantages:
1. Speed adjustable from 2.5s to 6s
2. Arm direction change left or right
3. New design of antiskid device to make sure the safety.
4. All components of machine core upgraded to precision cast steel.
5. Auto-delay when closing(adjustable)
6 RS485 or CAN network communication interface(no need to install module)
7. 24V backup battery interface(Can be charged by using solar energy)( optional)
| Menu code | Parameter Scale | Parameter name | Default | Unit | Remark | |||
| H00-00 | 25-95 | Open speed adjustment | 40 | Corresponding PWM duty cycle 25%-95%, step size is 1 | ||||
| H00-01 | 25-95 | Close speed adjustment | 40 | Corresponding PWM duty cycle 25%-95%, step size is 1 | ||||
| H00-02 | 5-40 | Open in place decelerate angle | 35 | The larger the angle value, the less likely it is to shake the arm when it is in place. | ||||
| H00-03 | 5-40 | Close in place decelerate angle | 35 | The larger the angle value, the less likely it is to shake the arm when it is in place. | ||||
| H00-04 | 1-20 | Open accelerate adjustment | 1 | ms | The smaller the number, the faster the speed | |||
| H00-05 | 1-20 | Close accelerate adjustment | 8 | ms | The smaller the number, the faster the speed | |||
| H00-06 | 1-30 | Open in place angle | 1 | degree |
step size is 1, when big than 11, will automatically check one side |
|||
| H00-07 | 1-30 | Close in place angle | 1 | degree | step size is 1 | |||
| H00-08 | 7-13 | Auto reverse force adjustment | 10 | A | step size is 1 | |||
| H00-09 | 0-90 | Delay closing adjustment | 0 | second | step size is 100；0 is not closing automatically,Other value will be closing automatically; This parameter is for the situation that there is no loop detector signals and non-automatic operation occasions | |||
| H00-10 | 10-50 | Self-check speed adjustment | 30 | Corresponding PWM duty cycle 10%-50%, step size is 1 | ||||
| H00-11 | 0-2 | Self-check mode | 0 | 0:no operate automatically；1:operate automatically, eliminate after power off；2:operate automatically,Power failure memory.3.intelligent automatically operation. | ||||
| H00-12 | 0-5 | Self-lock force adjustment | 0 | 0:Invalid , 1or 2 valid | ||||
| H00-13 | 1-20 | Motor deceleration time when paused | 5 | The larger the setting, the longer the pause time will take | ||||
| H00-14 | 0-1 | Bid-direction setting | 0 | 0:Closing,1:opening | ||||
| H00-15 | 0-2 | Energy saving closing arm direction | 0 |
0:invalid 1:close arm valid(energy saving voltage is determined by 49 items ) 2:open arm valid |
||||
| H00-16 | 1-32 | RS485communication address | 1 | Up to 32 slaves can be connected | ||||
| H00-17 | 0-2 | RS485communication rate | 0 | 0:9600,1:19200,2:38400；Change the parameter and will be valid after power on again. | ||||
| H00-18 | 0-2 | Whether to self-check when power on | 1 | 0:no self-check,1:self-check；2:self-check with remote control; | ||||
| H00-19 | 0-3 | self-check setting | 2 | 0:Manually invalid,1:Keyboard SET button,2:remote control valid,3,Keyboard SET button and remote control both valid | ||||
| H00-20 | 0-15 | Monitoring parameter setting index | 7 | 0 | 0XD000 | Rotate speed | 0~2500 | |
| 1 | 0XD001 | Motor feedback angle | 0~90 degree | |||||
| 2 | 0XD002 | Busbar voltage(V) | 0~40.0 | |||||
| 3 | 0XD003 | Current output | ||||||
| 4 | 0XD004 | Hall state | 0~7 | |||||
| 5 | 0XD005 | Commutation number | ||||||
| 6 | 0XD006 | Total number of trips | ||||||
| 7 | 0XD007 | Run time(ms) | 0~9000 | |||||
| 8 | 0XD008 | Cumulative running times | 0`99999999 | |||||
| 9 | 0xD00A | Time of automation operation | 0~99999999 | |||||
| 10 | 0xD00C | Time of anti-Collision | 0~99999999 | |||||
| 11 | 0xD00E | The number of times of the arm is close in place | 0~99999999 | |||||
| 12 | 0xD010 | Power on time(minute) | 0~99999999 | |||||
| 13 | 0xD012 | Power supply power on times | 0~99999999 | |||||
| 14 | 0xD014 | Running status | Binary display | |||||
| 15 | 0xD015 | Fault code | 0~7 | |||||
| 19 | Number of UP arm | 0-65535 | ||||||
| 20 | Number of DOWN arm | 0-65535 | ||||||
| 21 | Number of STOP | 0-65535 | ||||||
| 22 | Number of Loop detector | 0-65535 | ||||||
| 23 | Number of Photocell | 0-65535 | ||||||
| 24 | Number of Camera | 0-65535 | ||||||
| H00-21 | 0-3 | Factory data reset | 0 | 1:Factory data rest,2:cumulative number of times cleared 3:Accumulate the number of times to clear and restore factory settings, return to 0 after execution | ||||
| H00-22 | 0-1 | Start acceleration time constant | 0 | The higher the value, the slower the acceleration | ||||
| H00-23 | 12-30 | Minimal output | 10 | Minimum output duty cycle of UP/DOWN arm | ||||
| H00-24 | 12-30 | STOP key function setting | 0:whenever you press pause, ARM stay in the current state 1:when close arm, press the STOP key to switch the arm to up command | |||||
| H00-25 | 1-20 | Reserve | ||||||
| H00-26 | 0-1 | Camera count timeout(seconds) | S | 0:count cleared when10 minutes time out, Not 0 is timing close arm | ||||
| H00-27 | 0-1 | |||||||
| H00-28 | 0-3 | LED light output mode | 0:Do not flash alternately during operation；1:Allow flashing; 2:Green light when UP arm on 45 Degree | |||||
| H00-29 | 0-2 | Multi function count input |
0:no counting function 1:UP counting 2:Counting input 3:directly stop when the alarm input is valid 4:when the alarm input is valid, it only prompts the alarm, and run normally |
|||||
| H00-30 | 0~1 | DO1 functional output |
0:UP in place 1:DOWN in place 2:UP&DOWN in place 3:Fault input alarm(valid when 29 item set to 1) |
|||||
| H00-31 | DO2 functional output | 0-5 | ||||||
| H00-32 | DO3 functional output | |||||||
| H00-33 | 485 communication status control | 485 communication, analog input port data | ||||||
| H00-34 | Peak pattern | 0-1 | Long press remote control whether to prohibit the use of IO port; 0: No prohibition effect; 1: effective | |||||
| H00-35 | Peak status | 0 | 1 or 2 :Peak pattern is effective,3:close loop detector function (setting it when 34 item is valid) | |||||
| H00-36 | Beeper setup | 0 | 0:close 1:effective | |||||
| H00-37 | Single stroke setting | 500~1000 (In bilateral detection, see item 6 of monitoring parameters. In bilateral detection, parameters are invalid.) | ||||||
| H00-47 | Motor type setting |
0:Gear 1:Turbine vortex rod 2:Advertising machine |
||||||
| H00-48 | Loop detector detect time constant | The smaller the setting, the more sensitive it is to the loop detector | ||||||
| H00-49 | Energy-saving voltage of UP&DOWN arm | 18.0~23.0V; over-setting will not work properly when power off | ||||||
| H00-50 | The delay time of closing arm when loop detector invalid |
how long is the delay after turnover is in place, then close arm again
|
||||||
