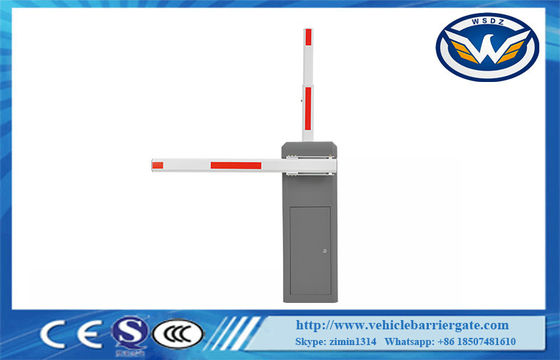

2 Motors Automatic Car Park Barrier RS485 24VDC Brushless Motor With Two Arm

2 Motors Automatic Car Park Barrier RS485 24VDC Brushless Motor With Two Arm
2 Motors Automatic Car Park Barrier RS485 24VDC Brushless Motor With Two Arm
2 Motors Automatic Car Park Barrier RS485 24VDC Brushless Motor With Two Arm 2 Motors Automatic Car Park Barrier RS485 24VDC Brushless Motor With Two Arm 2 Motors Automatic Car Park Barrier RS485 24VDC Brushless Motor With Two Arm 2 Motors Automatic Car Park Barrier RS485 24VDC Brushless Motor With Two Arm 2 Motors Automatic Car Park Barrier RS485 24VDC Brushless Motor With Two Arm 2 Motors Automatic Car Park Barrier RS485 24VDC Brushless Motor With Two Arm

Large Image :  2 Motors Automatic Car Park Barrier RS485 24VDC Brushless Motor With Two Arm

Product Details:
Place of Origin: shenzhen,China
Brand Name: WONSUN
Certification: CE ,ISO
Model Number: DZ-2135
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiated
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.(Vehicle Barrier Gate DC 24V Brushless Barrier Gate 6M Telescopic arm )
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 piece per month

2 Motors Automatic Car Park Barrier RS485 24VDC Brushless Motor With Two Arm

Description
Rated Voltage:: DC24V CE: Support
Max Length Of Arm: 6m Telescopic Arm/ Straight Arm Running Speed: 2.5s-6s
Application: Factory, Community, Hospital, Shopping Mall Product Name: 2 Motors Automatic Car Park Barrier RS485 24VDC Brushless Motor With Two Barrier Arm
High Light:

RS485 Car Park Barrier

,

Car Park Barrier 24VDC

,

Brushless Motor Automatic Barrier gate

2 Motors Automatic Car Park Barrier RS485 24VDC Brushless Motor With Two Barrier Arm


Car Park Barrier Specification:



Working temperature(motor):

-30℃~+70℃

Rated voltage:

DC24V

Running speed:

2.5s-6s

Rated power:

150W

Remote control distance:

≤100M(in the open place)

Max length of arm:

6M straight arm or telescopic arm




Car Park Barrier Advantages:

1. Speed adjustable from 2.5s to 6s
2. Arm direction change left or right
3. New design of antiskid device to make sure the safety.
4. All components of machine core upgraded to precision cast steel.
5. Auto-delay when closing(adjustable)
6 RS485 or CAN network communication interface(no need to install module)




Barrier arm balance adjustment



1,Please check and confirm arm status in horizon and vertical position,then tighten 2pcs M12 screw.

2,According to arm balance status, repeat adjusting the spring level of tightness of M8*140MM, make

sure the arm open and close in stable.

3,For the barrier gate with double springs,please adjust the two springs simultaneously.

4,If arm open and close shake too much, Please check below picture. Open arm shaking a lot means

spring is too tight, loose a little. Close arm

Packing List

Name Specification     Qty Unit Note
Hexagon screw M12*70 2                Piece         Fixing the boom
Boom press board                   1 piece
Mounting batten   2 piece Fixing the case
Expansion bolt M12*150 4 unit Fixing the case
Case Key   2 unit
Remote controller   2 unit
Instruction   1 piece



Function setting parameter table

Menu code Parameter Scale Parameter name Default Unit Remark
H00-00 25-95 Open speed adjustment 40

Corresponding PWM duty cycle

25%-95%, step size is 1

H00-01 25-95 Close speed adjustment 40

Corresponding PWM duty cycle

25%-95%, step size is 1

H00-02 5-40

Open in place

decelerate angle

35

The larger the angle value, the less

likely it is to shake the arm

when it is in place.

H00-03 5-40

Close in place decelerate

angle

35

The larger the angle value, the less

likely it is to shake the arm

when it is in place.

H00-04 1-20 Open accelerate adjustment 1 ms

The smaller the number, the faster

the speed

H00-05 1-20 Close accelerate adjustment 8 ms

The smaller the number, the faster

the speed

Electrical installation, wiring diagram

1. The internal wiring of this machine has been completed when it leaves the factory, please do not change it,

just connect the 220V power supply and the protective ground wire to work.

2. Traffic light interface: 2A 24V voltage traffic light use.

3. Infrared anti-smashing interface: external infrared anti-radiation device, and the switch signal of the anti-radiation

output can be connected.

4. Ground sense interface: support external ground sense. When using an external ground sensor, you only need to

connect the switch signal output by the ground sensor.

Product Maintenance

10.1 Keep the barrier gate clean
10.2 Check the joints ever month in case of any loose parts.
10.3 Check the spring elasticity after the barrier gate running 3000 times.
10.4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.
10.5 Remote control distance will be shortened or not work in case like big object screening,battery
exhausting,extreme weathers.



Car Barrier Gate FAQ:


Q1.Who we are?
We are based in Shenzhen,Guangdong, China, was founded in 2011,is the professional manufacturer
of high-end intelligent parking barrier gate.



Q3.How about payment terms our company provide?
A: T/T



Q4.Which is your min order?
A: 1 piece



Q5.Model color size and craft for all barrier gates can be customized?
A: Yes, we can, welcome OEM & ODM. We also can put logo of your company on product
