Economical Loop Detector Parking Barrier Gate 24V BLDC RFID Reader Parking System

Economical Loop Detector Parking Barrier Gate 24V BLDC RFID Reader Parking System
Economical Loop Detector Parking Barrier Gate 24V BLDC RFID Reader Parking System
Economical Loop Detector Parking Barrier Gate 24V BLDC RFID Reader Parking System Economical Loop Detector Parking Barrier Gate 24V BLDC RFID Reader Parking System Economical Loop Detector Parking Barrier Gate 24V BLDC RFID Reader Parking System Economical Loop Detector Parking Barrier Gate 24V BLDC RFID Reader Parking System Economical Loop Detector Parking Barrier Gate 24V BLDC RFID Reader Parking System

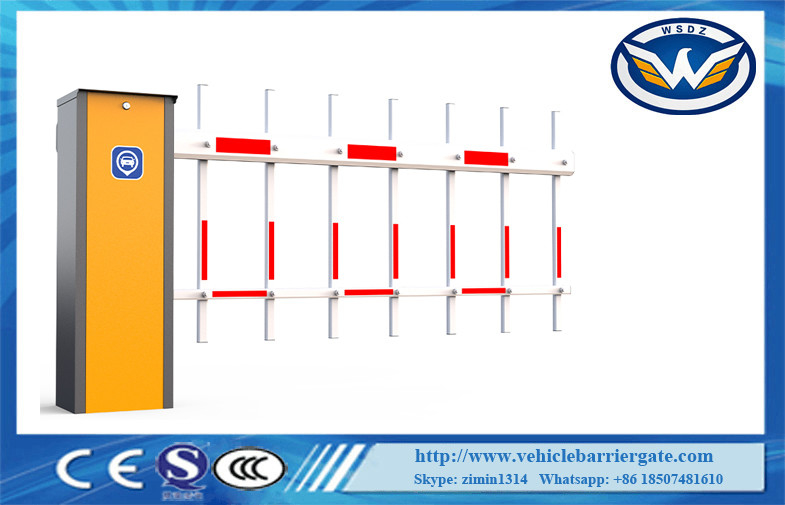

Large Image :  Economical Loop Detector Parking Barrier Gate 24V BLDC RFID Reader Parking System

Product Details:
Place of Origin: shenzhen,China
Brand Name: WONSUN
Certification: CE ,ISO
Model Number: DZ-220B
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiated
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.(Vehicle Barrier Gate DC 24V Brushless Barrier Gate 6M Telescopic arm )
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 piece per month

Economical Loop Detector Parking Barrier Gate 24V BLDC RFID Reader Parking System

Description
Rated Voltage:: DC24V Max Length Of Arm: 6m Straight Arm
Running Speed: 2.5s-8s RS485: YES
Product Name: Economical 24V BLDC Rfid Reader Parking System Loo Detector Parking Barrier Gate Battery: Optional
High Light:

RS485 Parking Barrier Gate

,

BLDC motor Parking Barrier Gate

,

RS485 Parking Barrier System

Economical 24V BLDC Rfid Reader Parking System Loo Detector Parking Barrier Gate



Safety Precautions:

To ensure your safe operation, please strictly in accordance with the provisions of this manual.
1. To avoid personal injury, it is strictly forbidden to open the door or cover when barrier working.
2. The barrier housing must be connected to the ground to prevent inductive electric shock.
3. It is strictly forbidden to stand, walk or place objects under the boom/ arm when barrier working.
4. The boom/arm and the spring have been matched to the balance state before goods leave out our
factory.



Parking Barrier Parameters:



1.Working temperature: -35~+65℃

2.Power supply:24V DC

3.Open/close speed:2.5s to 6s

4.Driving method:DC brushless motor

5.Rated power:150W





Parking Barrier Gate Features:



1 The running speed can be adjusted from 2.5s to 8s
2 Arm can be quickly interchanged.2
3 Open the barrier gate by motor wheel when power off ,automatically reset after
power on
4 Curved crank arm three- link movement structure, the operation is
stable
5 Wireless remote control control open/close





5th BLDC motor working environment requirements:

1. The altitude does not exceed 2500 meters;
2. Ambient temperature: -30°C--+80°C
3. Relative humidity: below 85%, non-condensing state
7. Storage environment requirements
1. Air temperature: -5°C--+35°C
2. Relative humidity: ≤70%
3.Good ventilation, no corrosive gas

Arm length and speed comparison table

Menu code

Parameter



Arm length

UP ARM DOWN ARM
H00-00 H00-02 H00-04 H00-01 H00-03 H00-05
Medium Octagonal arm 3m 1.8s(without rubber) 95 30 8 95 30 8
Medium Octagonal arm 3m1.8s(with rubber) 95 25 8 95 25 8
Large Octagonal arm 4.5m 3s(without rubber) 45 30 10 45 30 10
Large Octagonal arm 6m 5s(with rubber) 35 40 10 35 40 10
3m round arm 1.8s 95 25 8 95 25 8

(the parameter is based on the company’s arm)



Learning type remote control

The remote control using special IC learning code remote controller, 418MHz wireless frequency, strong

anti-interference, long remote control distance, that can up to 100meters in good weather, use easily and

durable. The receiver of learning code remote control can store 16 different remote control codes, and

support unlimited number of same code remote control. The external receiver learned the remote control

within 5 seconds when power on,press the open/close key at the same time to complete the learning,

and reset to continue learn when not complete. If repeat the learning, open the external receiver shell,

there is a white button on circuit board, hold down 15 seconds to delete the remote control code, continue

to learn or press the white button to learn.

Parking Barrier Packing List

Name Specification Qty Unit Note
Hexagon screw M12*70 2 Piece Fixing the boom
Boom press board   1 piece
Mounting batten   2 piece Fixing the case
Expansion bolt M12*150 4 unit Fixing the case
Case Key   2 unit
Remote controller   2 unit
Instruction   1 piece
