Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WST-1161
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Housing Dimension: |
320 * 280 * 935 Mm |
Arm Type: |
Straight Arm, Folding Arm, Fence Arm, Optional |
Housing Material: |
2mm Cold Roller Steel Plate |
Open / Close Time: |
1s, 1.8s, 3s, 6s |
Power Supply: |
AC 220V / 110V |
Max Boom Length: |
6m |
Housing Dimension: |
320 * 280 * 935 Mm |
Arm Type: |
Straight Arm, Folding Arm, Fence Arm, Optional |
Housing Material: |
2mm Cold Roller Steel Plate |
Open / Close Time: |
1s, 1.8s, 3s, 6s |
Power Supply: |
AC 220V / 110V |
Max Boom Length: |
6m |

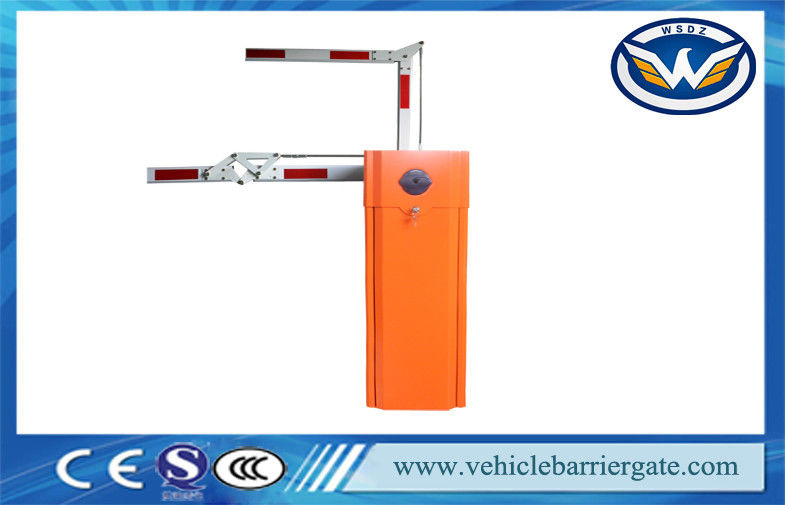

Parking System Automatic Boom Barrier Gate System With CE ISO SGS approvals
Quick Detail:
Model Selection and Differences
Model | Boom Shape | Max Boom Length | Speed |
WST1161 | Straight boom | 6m | 6 seconds |
WST1162 | Straight boom | 4.5m | 3 seconds |
WST1163 | Straight boom | 3m | 1s 1.8second |
WST11621 | 90 degree, Articulated boom | 5m | 6 seconds |
WST11622 | 90 degree, Articulated boom | 3m | 3 seconds |
WST11661 | 180 degree, Articulated boom | 5m | 6 seconds |
WST11662 | 180 degree, Articulated boom | 3m | 3 seconds |
WST11682 | Two-level, fence boom | 4.5m | 6 seconds |
WST11681 | Three level, fence boom | 4m | 6 seconds |
Applications:
Fast Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.
Specifications
Model |
WST1161 | WST1162 |
Opening Time | 3S | 6S |
Boom Type | Straight, square-shaped | |
Boom Length | 3M | 4M |
Voltage | 110V/220V | |
Motor/Power | AC/120W | |
Working Temperature | -35℃ - 75℃ | |
Protection Grade | IP44 | |
Remote Control Distance | 30M~100M |
Functions & Features:
1. Advanced manual release
2. Boom can rise and fall on left/right side by setting on the same machine
3. No need to change the balance spring when changing the booms
4. Adopts the 3rd generation WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Auto closing
8. RS485 communication module (optional)
9. Thermal radiates rapidly, no thermal protection
10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch
13. Cabinet with traffic light
14. Remote Control Frequency: 315MHz, 418MHz, 433MHz
Applications:
Automatic boom barrier adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.
Our Car Park Barriers Packing List
Packing list | |||
Name | Specifications | Quantity | Remarks |
Machine core | Good in working | 1 | Main part |
Barrier arm | Straight, folding or fence arm | 1 | Optional |
Boom press board | 1 | Fixing the boom | |
Self-tapoing screw | ST4*16 | Fixing the boom | |
Self-tapoing screw | st3*10 | 4 | Fixing the boom |
Supporting pole | 1 | Fupporting the boom | |
Expanion bolt | M16*150 | 4 | Fixing the case |
Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
Clutch key | 1 | clutch device | |
Case Key | 2 | for case and cover locking | |
Balance spring | According to length of barrier arm | 1 | for sapre usage |
Remote emitter | less than 30m is available | 1 | For remote control |
Remote conrol handles | less than 30m is available | 2 | For remote control |
Instruction | in English | 1 | For reference |
RS485 interface | 1 | Optional | |
Disc | 1 | Optional | |
Communication Mould | 1 | Optional | |
Cover head | 1 | 3 years without fading | |
Expanion nut | M8 | 4 | Fixing the supporting pole |
