Sliding Gate Operator

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP120

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

slide gate motor

,

electric sliding gate motor

Power Supply Range:
AC220V/110V±10% 50/60Hz
Max Loading Weight:
1500kg
Open(close) Speed:
V=12m/min
Rated Power:
200w
Working Temperature Of Motor:
-25 To +55 Celsius Degree
Output Gear Module:
M=4
Power Supply Range:
AC220V/110V±10% 50/60Hz
Max Loading Weight:
1500kg
Open(close) Speed:
V=12m/min
Rated Power:
200w
Working Temperature Of Motor:
-25 To +55 Celsius Degree
Output Gear Module:
M=4
Description

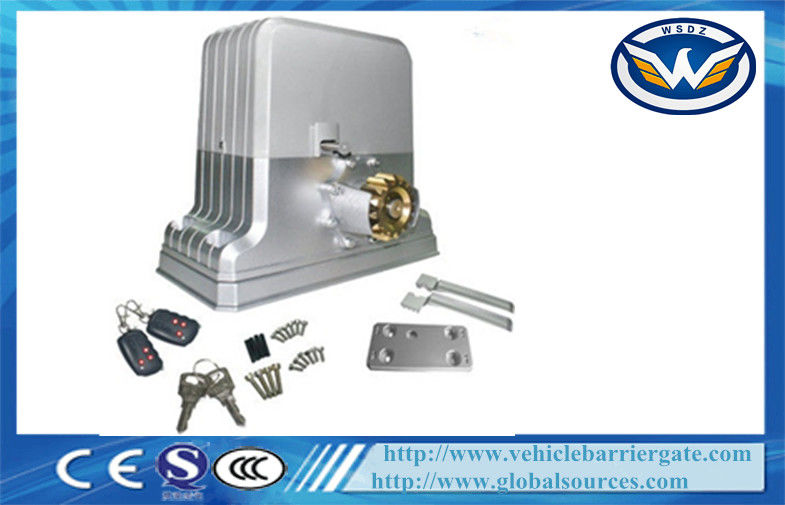

Sliding Gate Operator

AC 220V Great Horsepower Slide Gate Operator  Reversing On Obstacle



specifications:

  • Power supply range: AC220V/110V±10%  50/60Hz
  • Net weight: 8.5kg
  • Max loading weight: 1500kg
  • Working temperature of motor: -25 to +55 Celsius degree
  • Working humidity: ≤85%
  • Rated power: 200w
  • Output gear module: M=4
  • Output gear number: Z=16
  • Open(close) speed: v=12m/min
  • Maximum pull: 1100N
  • Package one set in one carton

Each kit includes:

  • 1 x motor
  • 2 x remote controllers
  • 1 x control panel
  • 1 x base plate
  • 2 x magnets
  • 1 x user's manual

Functions of sliding gate operators:



1. Integrated electromechanical design
2. Electronic soft start
3. Reversing on obstacle
4. Infrared photocell socket
5. Alarm light socket
6. Wires control and remote control
7. Delay closing
8. Reversing sensitivity adjustable
9. Bus-mastering (various operation ways)
10. Automatic warm-up



Sliding gate operators description:

  • Single phase
  • Speed up to 600mm per second
  • Manual override release clutch
  • Basic features means easy to set up
  • Soft starting and stopping function
  • All electric enclosed in a protective enclosure
  • 100% duty cycle

Others information of sliding gate opener:

  • Guarantee time: 1 year
  • Delivery deadline: 8 days delivery after receive your payment
  • Package: 1 set in a standard carton packing
  • Minimum order

Packing list

Name

Quantity

Unit

Remark

Sliding gate operator

1

set

Necessary

Remote control

2

pcs

Necessary

Internal hexangular bolt

4

pcs

M8*40

Internal hexangular bolt

4

pcs

M6*16

Left limit iron

1

pcs

Necessary

Right limit iron

1

pcs

Necessary

Base board

1

pcs

Necessary

Release key

2

pcs

Necessary

Manual

1

pcs

Necessary

Infrared photocell

1

set

Optional

Radio emitter

1

set

Optional
