Name: |
Inductive DC12V/24V Loop Detector For Sliding Gate Motor |
Color: |
Red,black |
Power Supply: |
AC220/110V,DC24V/12V |
Reaction Time: |
100ms |
Frequency: |
20KHZ To 170KHZ |
Wrrantty Time: |
1 Year |
Name: |
Inductive DC12V/24V Loop Detector For Sliding Gate Motor |
Color: |
Red,black |
Power Supply: |
AC220/110V,DC24V/12V |
Reaction Time: |
100ms |
Frequency: |
20KHZ To 170KHZ |
Wrrantty Time: |
1 Year |

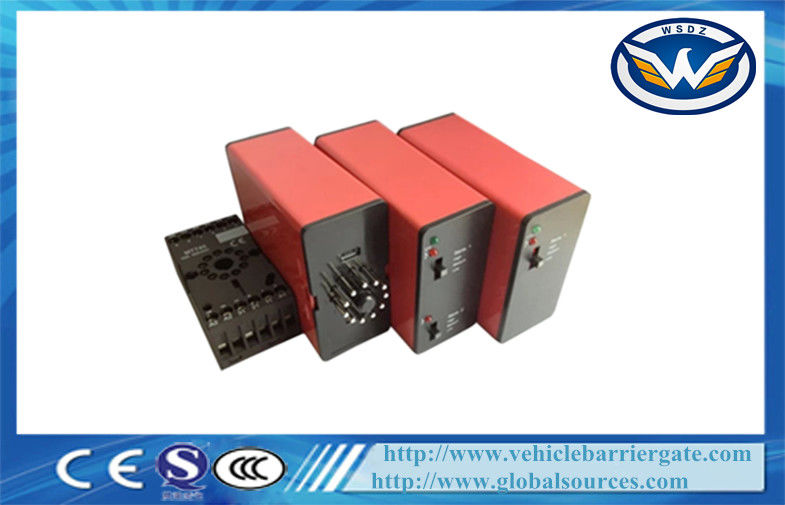

Inductive DC12V/24V Loop Detector For Sliding Gate Motor
Specifications:
| Brand name | Wonsun/ODM/OEM |
| Power supply | AC220V/110V,DC24V/12V |
| Reaction time | 100ms |
| Frequency range | 20KHZ to 170KHZ |
| Loop Inductance | Ideal: 80μH to 300μH (incl. conn. wiring) |
| Loop connection | <5m optimal |
| Loop connection wiring | Maximum length 200 meters Twisted at least 20 times per meter |
| Dimension | 37x74x85 mm (WxHxL) |
| Net Weight | 250g |
| Operating Temperature | -20°C to +70°C |
Detailed Images:
Work Indicator
Detector will enter into the self-calibration condition with the green LED flash, red LED extinguish once on power, this procession will last 1 second. .the vehicle should not on the loops within the self-calibration. The green LED will not flash, he red LED extinguish after self-calibration. When the vehicle past over the loop ,the red LED on.
DIP SWITCH and Wire Jumper
DIP1, 2 setting the sensitivity;set the presence output time of relay 1 by DIP3;set the relay2 as presence/pulse output by DIP4; the output time of presence signal set by DIP5;DIP6set the frequency; jumper wire connect to the open end, PIN16 connect to the NO of relay 1. Jumper wire connect to the close end, PIN16 connect to the NC of relay 1
Work Frequency
User can change the loop's work frequency which can avoid the cross talk by the adjacent loop or environment frequency. It offers two styles frequency, set by DIP6
