Intelligent Toll driveway barrier gates / Remote Control parking lot gate arm

Place of Origin China
Brand Name WONSUN
Certification CE, ISO, SGS
Model Number WSTP-115
Minimum Order Quantity 1PC
Price negotiation
Packaging Details Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time 3-7 working days after received your payment
Payment Terms T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability 1000 Sets/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 2mm Cold Roll Plate Or Galvanized Plate OEM/ODM Supported
Speed 0.6s, 1s, 1.8s, 3s, 6s Boom Length Max 6 Meters
Certificate CE Arm Type Straight, Folding, Fencing
High Light

parking lot gate systems

,

barrier gate arm

Leave a Message
Product Description

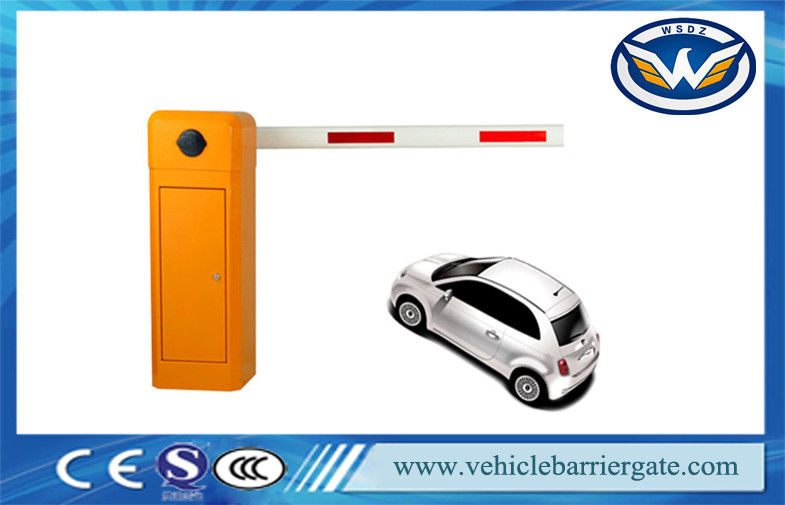

Intelligent Toll driveway barrier gates / Remote Control parking lot gate arm





Quick Detail:

Model: WSTP-115

1. Straight boom arm length 1-6 m, Speed time is 6S/4s
2. Straight boom arm length 1-3.5m. Speed time is 1.8s
3. Straight boom arm length 1-3 m, Speed time is 1s
4. Straight boom arm length 1-2.5m, Speed time is 0.6s/0.8s





Gate Arm Type:

1. Straight arm lengt size : 100*45mm. 80*45mm
2.Retractable arm size: 86*45mm





Specifications:

Model WSTP-115
Size 320*280*935 mm
Voltage AC 220V/110V±10%, 50/60HZ
Rated Power 120W
Operation time 0.6s, 1s, 1.8s, 3s,4s,6s. Customized
Working Temperature -40℃~+75℃
Material

Galvanized plate or Cold roll plate, 2.0mm thickness sheet

3 years without rust, shedding and fading

Spring And Bearing Heat Treatment: more durable, more than 5 million times through operation testing
Remote Control Distance Usually more than 30 meters, if there is less obstacles, even 50 meters or more
Packing Size 1020*375*467mm , with seven layers carton case

inside with air bubble film for protection

Delivery By Sea: big order(more than 100 sets), Cheap, suggested

By Air: small order(1-15 sets), quick and cheap, suggested





Functions & Features:
1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring

breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)





Parking list:

1pc housing, 1pc machine core, 1pc control board, 2pcs remote controllers, 1pc push button, mounting accessories
