6 Meters Remote controller Parking Management System Security Barriers And Gates

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP-115

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

parking barrier gates

,

road barrier gate

Housing Material:
2mm Cold Roller Steel Plate
Open / Closing Time:
3s, 6s
Housing Dimension:
325 * 280 * 936 Mm
Warranty:
1 Year
Arm Material:
Aluminum Alloy
Arm Width & Height:
100 * 45 Mm
Housing Material:
2mm Cold Roller Steel Plate
Open / Closing Time:
3s, 6s
Housing Dimension:
325 * 280 * 936 Mm
Warranty:
1 Year
Arm Material:
Aluminum Alloy
Arm Width & Height:
100 * 45 Mm
Description

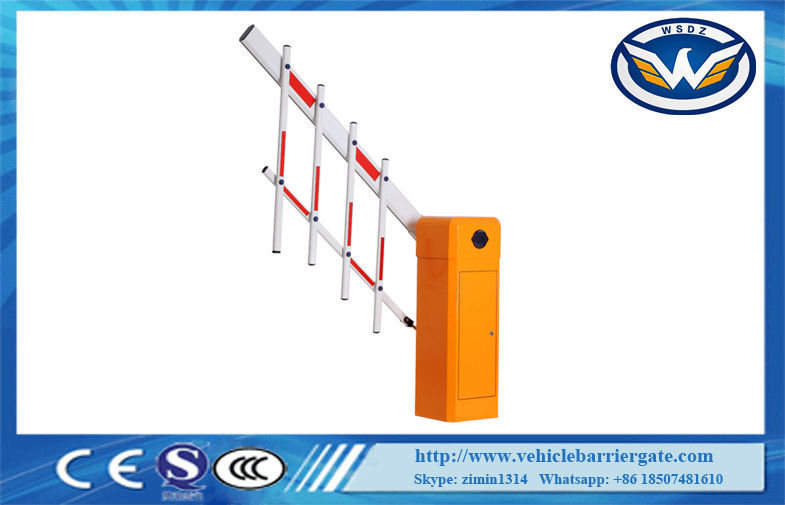

6 Meters Remote controller Parking Management System Security Barriers And Gates

Traffic Barrier Gate AC220V , AC110V With 50 Meters Remote controller

Quick Detail:

Name: Traffic Barrier Gate
Speed:6 seconds
Feature:Straight boom
Rated Power:80W
Certificate:CE, ISO, SGS
Net Weight:48KG
Voltage:AC220V, AC110V


Model Selection and Differences



Model

Boom Shape

Max Boom Length

Speed

WST1151

Straight boom

6m

6 seconds

WST1152

Straight boom

4.5m

3 seconds

WST1153

90 degree, Articulated boom

5m

6 seconds

WST1154

90 degree, Articulated boom

3m

3 seconds

WST1155

180 degree, Articulated boom

5m

6 seconds

WST1156

180 degree, Articulated boom

3m

3 seconds















Functions & Features
1) Crank connecting rod movement structure, and stability
2) Three control buttons: for boom raising,falling and pausing
3) Boom backtrack function: the boom will rise if it hits something when falling
4) Infrared photocell dasign: for avoiding the crash when the boom falling, so as to prevent the vehicles from being pressed.
5) Both external and internal loop detectors are supported.
6) VOpen,Close and Stop controlling interfaces
7) Traffic light signal connection device:red light for stop; green light for pass.
8) Remote control and wire control for selection
9) Delay off the boom close function

Specifications



Model

WSTP-115

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44



With WONSUN, your job gets easier.

Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.


Communication with customers


1. The boom could not rise up or fall down to the end.
a. When change a long boom to a short one, please readjust it.
b. The sensor does not plug well, please chek it.
c. The " Speed adjust switch" is wrong adjust, please readjust it.
2. The distance of the remote control decreases.
a. Check whether the charge capacity of the remote controller is enough or not.
3. There is no reaction when pressing the remote controller buttons.
a, Please check whether the power is supplied to the barrier gate or not.
b. Please check whether the fuse is burnt out or not.
c. Please check whether the code both in the remote controller and the control board are accordant or not.
4. There is no reaction on the motor when the user changes a control board.
a. Please check the capacitance is correctly fixed or not.
b. Please check the sensor is right inserted or not.
5. If the user changes a new control board and the boom is abnormal when rising and falling.
a. Please adjust the" Gate Type Selection"( Refer to the control board)
