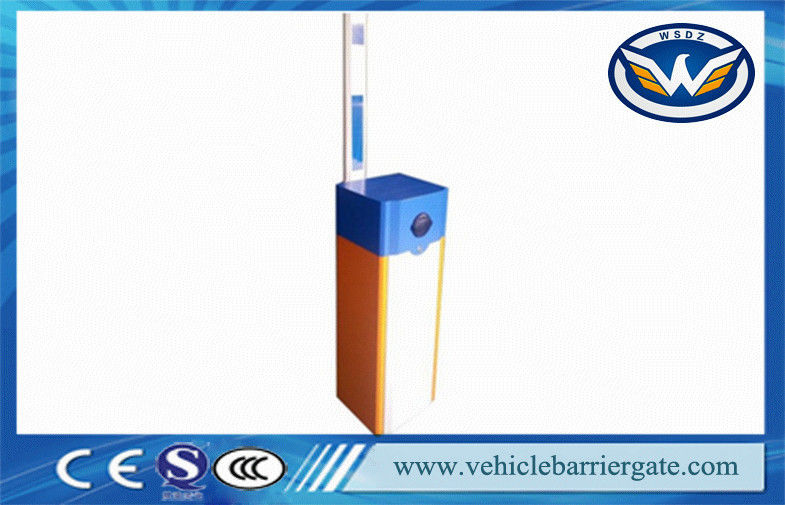

Waterproof Parking Barrier Gate With Remote Controller 50 Meters Used For Highway

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WST-1161

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

boom barrier gate

,

electric boom barrier

Housing Dimension:
335 * 335 * 935 Mm
Housing Material:
2mm Cold Roller Steel Plate
Housing Color:
Bule, Orange, White
Arm Length & Height:
100* 45 Mm
Arm Material:
Aluminum Alloy
Arm Length:
Max. 6mtrs
Housing Dimension:
335 * 335 * 935 Mm
Housing Material:
2mm Cold Roller Steel Plate
Housing Color:
Bule, Orange, White
Arm Length & Height:
100* 45 Mm
Arm Material:
Aluminum Alloy
Arm Length:
Max. 6mtrs
Description
Waterproof Parking Barrier Gate With Remote Controller 50 Meters Used For Highway

Waterproof Parking Barrier Gate With Remote Controller 50 Meters Used For Highway

Quick Detail:

Name:Parking barrier gate
Speed:1s,1.8s.3s 6 seconds
Feature:Straight boom
Rated Power:80W
Certificate:CE, ISO, SGS
Net Weight:48KG
Voltage:AC220V, AC110V


Functions & Features

1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Steady function, sensitive reaction, low noise

9) Surface is shaped by 13 process flow, and use import paint. Excellent rust-proof, waterproof ablity.

10)  High sensitive limit switch, barrier boom can be instant turn on and off, accurate location.

11) Control system adopts hi-tech digital chip technology.

 12) Adopt baking varnish to make the shell surface waterproof and antirust for five years



Model Selection and Differences



Model

Boom Shape

Max Boom Length

Speed

WST1161

Straight boom

6m

6 seconds

WST1162

Straight boom

4.5m

3 seconds

WST11621

90 degree, Articulated boom

5m

6 seconds

WST11622

90 degree, Articulated boom

3m

3 seconds

WST11661

180 degree, Articulated boom

5m

6 seconds

WST11662

180 degree, Articulated boom

3m

3 seconds
















Specifications



Voltage

220V(110V)

Frequency

AC 50/60HZ

Power

80W

Length

≤ 6m

Switching speed

1.5-6S

Working temperature

-40-110°C

Protection class

IP44

Shell Material

2mm cold roller steel plate

Shell thickness

2.0mm

Surface handle

Import paint

Open method

Read card, remote control ,manual button

Remote control distance

10-60m

Weight of barrier

50KG

Barrier

335 * 335 * 935 mm(L*W*H)



With WONSUN, your job gets easier.


Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.


Communication with customers

1)     Q: Connected power and press open/close button but parking barrier gate no action?


A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button, parking barrier gate will move but even when it is at right position, the motor still running and not stop?

A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but parking barrier gate arm no action?

A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


 4)  Q: When opening/closing, parking barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?

A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal position
