Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WST-1151
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Housing Dimension: |
320 * 280 * 935 Mm |
Protection Degree: |
IP44 |
Housing Material: |
2mm Cold Roller Steel Plate |
Open / Close Time: |
1s, 1.8s, 3s, 6s |
Power Supply: |
AC 220V / 110V |
Max Boom Length: |
6m |
Housing Dimension: |
320 * 280 * 935 Mm |
Protection Degree: |
IP44 |
Housing Material: |
2mm Cold Roller Steel Plate |
Open / Close Time: |
1s, 1.8s, 3s, 6s |
Power Supply: |
AC 220V / 110V |
Max Boom Length: |
6m |

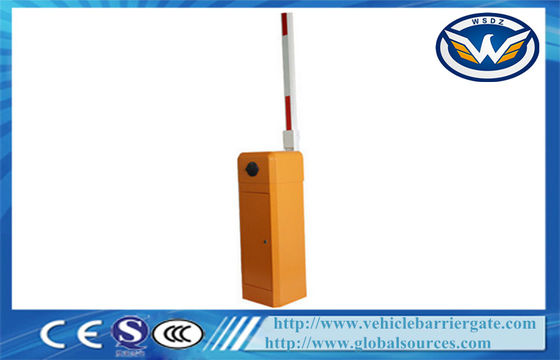

Orange Car Park Barriers With RS485 Transition Interface AC 220V 110V For Parking System
Quick Detail:
Name: Car park barriers
Speed:6 seconds
Machine core working temperature: -40 degrees to +75 degrees
Electric working temperature: -20 degrees to +75 degrees
Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz
Rated power: 120W
Relative humidity: <=90%
Model Selection and Differences
Model | Boom Shape | Max Boom Length | Speed |
WST1151 | Straight boom | 6m | 6 seconds |
WST1152 | Straight boom | 4.5m | 3 seconds |
WST11521 | 90 degree, Articulated boom | 5m | 6 seconds |
WST11522 | 90 degree, Articulated boom | 3m | 3 seconds |
Functions & Features
1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Closing time is also arranged from 1 second to 6 seconds.
5. The barrier gate can be both right-installed and left-installed.
6. All the operation process is soft without any noise and shaking.
7. Infrared photocell interface, Loop detector interface and IC system
8. interface are reserved for the other functions.
9. Green light and red light are used inside for indication the position of the beam.
Specifications
Model | WST1151 |
Working Temperature | -40℃~+75℃ |
Voltage | 220V±10%, 110V±10%, 50/60HZ |
Rated power | 80W |
Relative humidity | ≤90% |
Remote control distance | ≥30m |
Net weight | 48kgs |
Speed | 1S,1.8S,3S, 6S |
Max boom length | 6 meters |
Motor Rotational speed | 1400rmp |
Protection Degree | IP44 |
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.
Car park barriers packing list
Packing list | |||
Name | Specifications | Quantity | Remarks |
Machine core | Good in working | 1 | Main part |
Barrier arm | Straight, folding or fence arm | 1 | Optional |
Boom press board | 1 | Fixing the boom | |
Self-tapoing screw | ST4*16 | Fixing the boom | |
Self-tapoing screw | st3*10 | 4 | Fixing the boom |
Supporting pole | 1 | Fupporting the boom | |
Expanion bolt | M16*150 | 4 | Fixing the case |
Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
Clutch key | 1 | clutch device | |
Case Key | 2 | for case and cover locking | |
Balance spring | According to length of barrier arm | 1 | for sapre usage |
Remote emitter | less than 30m is available | 1 | For remote control |
Remote conrol handles | less than 30m is available | 2 | For remote control |
Instruction | in English | 1 | For reference |
RS485 interface | 1 | Optional | |
Disc | 1 | Optional | |
Communication Mould | 1 | Optional | |
Cover head | 1 | 3 years without fading | |
Expanion nut | M8 | 4 | Fixing the supporting pole |
