Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WST-1151
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Housing Dimension: |
320 * 280 * 935 Mm |
Housing Color: |
Blue, Yellow, Orange |
Housing Material: |
2mm Cold Roller Steel Plate |
Operating Temperatures: |
-35 To 75°C |
Power Supply: |
AC 220V / 110V |
Max Boom Length: |
6m |
Housing Dimension: |
320 * 280 * 935 Mm |
Housing Color: |
Blue, Yellow, Orange |
Housing Material: |
2mm Cold Roller Steel Plate |
Operating Temperatures: |
-35 To 75°C |
Power Supply: |
AC 220V / 110V |
Max Boom Length: |
6m |

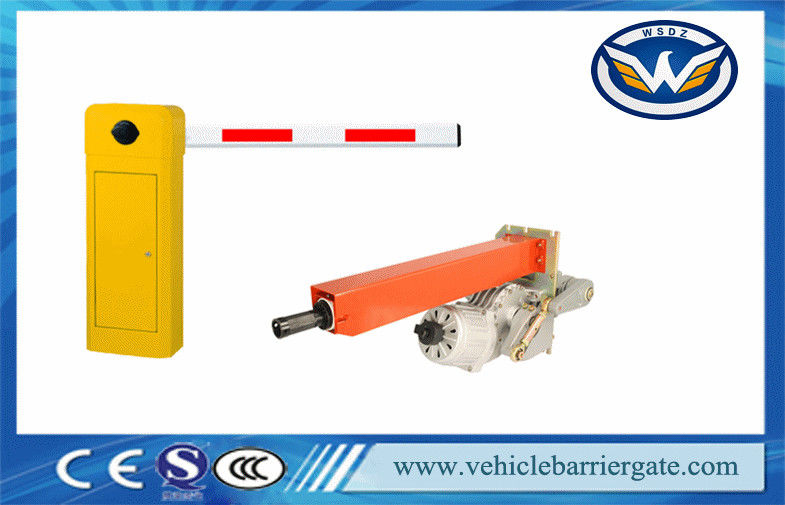

Car Park Barriers With RS485 Transition Interface For Parking System
Car Park Barriers Quick Detail:
Car Park Barriers Name: Car park barriers
Car Park Barriers Size: 320*280*932 mm
Car Park Barriers Operation time: 1s, 1.8s, 3s, 6s, optional
Car Park Barriers Arm type: Straight arm, folding arm, fence arm, optional
Car Park Barriers Arm Length: Max 6 meters with aluminum alloy
Car Park Barriers Model Selection and Differences
Model | Boom Shape | Max Boom Length | Speed |
WST1151 | Straight boom | 6m | 6 seconds |
WST1152 | Straight boom | 4.5m | 3 seconds |
WST11521 | 90-degree, Articulated boom | 5m | 6 seconds |
WST11522 | 90-degree, Articulated boom | 3m | 3 seconds |
WST11561 | 180-degree, Articulated boom | 5m | 6 seconds |
WST11562 | 180-degree, Articulated boom | 3m | 3 seconds |
Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers
Car Park Barriers Functions & Features
1) Car Park Barriers Manual release
2) Car Park Barriers Boom backtrack function: the boom will rise if it hits something when failing
3) Car Park Barriers Infrared photocell design: for avoiding the crash when the boom falls, to prevent the vehicles from being pressed
4) Both external and internal loop detectors are supported
5) “Open”,” close’” and “stop” control interfaces
Car Park Barriers Specifications
| Car Park Barriers Operation time | 1s, 1.6s, 1.8s, 3s, 6s. Customized |
| Car Park Barriers Arm Type | Straight Arm: Max 1-6 meters, Size 45×100mm aluminum alloy Fence Arm: Two or three fence arms, Max 1-6 meters, aluminum alloy |
| Car Park Barriers Material | Galvanized plate or Cold roll plate, 2mm thickness sheet |
| Car Park Barriers Size | 932mm×320mm×280mm |
| Car Park Barriers G.W | 50 KG |
| Car Park Barriers Delivery | By Sea: big order(more than 100 sets), Cheap, suggested By Air: small order(1-15 sets), quick and cheap, suggested |
| Car Park Barriers Payment | Sample: full payment Order: usually 40% advance deposit, balance before shipment |
With WONSUN, your job gets easier.
We don’t just create “good” products that work pretty well. Our thinking is beyond the short term. We are conceiving, designing, and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative, that will improve your performance and enhance your skills; and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.
Communication with customers
1) Q: Connected power and pressed open/close button but the car parking barrier gate no action.
A | Reason | Solution |
1 | Fuse blown | Check the fuse and power in the controller |
2 | The battery of the remote control powered off | Change a new one |
3 | External protection circuit break or at protecting status | Open the barrier door and click the OPEN/CLOSE button on the control box |
4 | Same frequency interference | Check photocell and loop detector |
2) Q: Connected power and press the open/close button, the car parking barrier gate will move but even when it is in the right position, the motor still runs and does not stop.
A | Reason | Solution |
1 | Limit switch | Adjust the horizontal/vertical limit switch to the correct position |
2 | Main controller failure | Change a new one |
3 ) Q: When opening/closing, car parking barrier gate arm cannot reach the right position (90° vertical & 180° horizontal)?
A. | Reason | Solution |
1 | Length adjustment of connecting rod not correct | Open the barrier door and unlock the clutch to check when the arm is at 90° vertical position if the master rod covers slave one; when the arm is at 180° horizontal position if the master rod and slave one are in the same straight line |
2 | Nuts on the limit switch loose | Tighten the nuts when the arm at 90° vertical and 180° horizontal position |
