Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WST-1151
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Housing Dimension: |
320 * 280 * 935 Mm |
Arm Type: |
Straight Arm, Folding Arm, Fence Arm, Optional |
Housing Material: |
2mm Cold Roller Steel Plate |
Open / Close Time: |
1s, 1.8s, 3s, 6s |
Power Supply: |
AC 220V / 110V |
Max Boom Length: |
6m |
Housing Dimension: |
320 * 280 * 935 Mm |
Arm Type: |
Straight Arm, Folding Arm, Fence Arm, Optional |
Housing Material: |
2mm Cold Roller Steel Plate |
Open / Close Time: |
1s, 1.8s, 3s, 6s |
Power Supply: |
AC 220V / 110V |
Max Boom Length: |
6m |

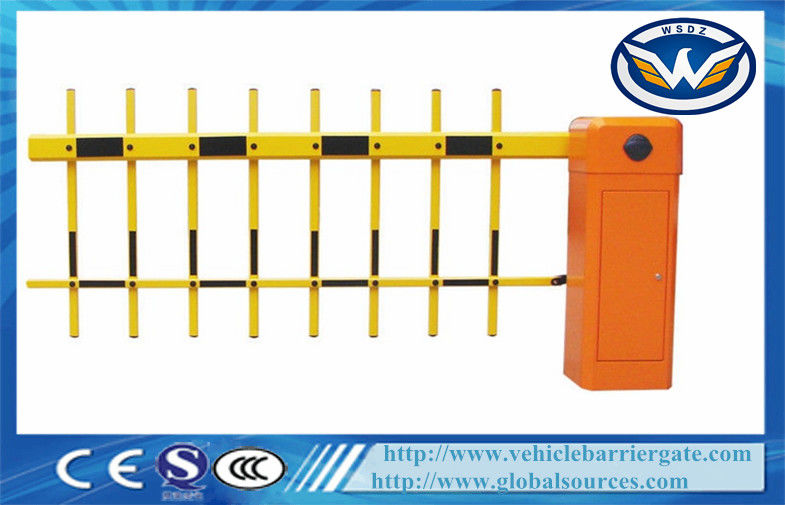

Two Fence Arm Automatic Boom Barrier With RS485 Transition Interface
Quick Detail:
Name: Automatic boom barrier
Colors: Orange, yellow, blue, red, customized
Operating temperatures: -25 to 75°C
Net weight: 42kg
Packing size: 1,020*365*467mm, weight 50kg
Usage: Highway, parking lot, community, hotel and factory
Voltage:AC220V, AC110V
Model Selection and Differences
Model |
Boom Shape |
Max Boom Length |
Speed |
WST1151 |
Straight boom |
6m |
6 seconds |
WST1152 |
Straight boom |
4.5m |
3 seconds |
WST11521 |
90 degree, Articulated boom |
5m |
6 seconds |
WST11522 |
90 degree, Articulated boom |
3m |
3 seconds |
WST11561 |
180 degree, Articulated boom |
5m |
6 seconds |
WST11562 |
180 degree, Articulated boom |
3m |
3 seconds |
Functions & Features
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Specifications
Model |
WST1151 |
Working Temperature |
-40℃~+75℃ |
Voltage |
220V±10%, 110V±10%, 50/60HZ |
Rated power |
80W |
Relative humidity |
≤90% |
Remote control distance |
≥30m |
Net weight |
48kgs |
Speed |
1S,1.8S,3S, 6S |
Max boom length |
6 meters |
Motor Rotational speed |
1400rmp |
Protection Degree |
IP44 |
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.
Communication with customers
1) Q: Connected power and press open/close button but car parking barrier gate no action?
A |
Reason |
Solution |
1 |
Fuse blown |
Check fuse and power in controller |
2 |
Battery of remote control powered off |
Change a new one |
3 |
External protection circuit break or at protecting status |
Open the barrier door and click OPEN/CLOSE button on control box |
4 |
Same frequency interference |
Check photocell and loop detector |
2) Q:Connected power and press open/close button, car parking barrier gate will move but even when it is at right position, the motor still running and not stop?
A |
Reason |
Solution |
1 |
Limit switch |
Adjust the horizontal/vertical limit switch to correct position |
2 |
Main controller failure |
Change a new one |
3) Q: Motor running but car parking barrier gate arm no action?
A |
Reason |
Solution |
1 |
Barrier arm at 45° position where is hard to move |
Unlock clutch and manually rotate arm to horizontal or vertical position then try again |
2 |
Tension of balancing spring not suitable |
Adjust spring exactly |
3 |
Low working voltage |
Check the voltage and power |
4) Q: When opening/closing, car parking barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?
A. |
Reason |
Solution |
1 |
Length adjustment of connecting rod not correct |
Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line |
2 |
Nuts on the limit switch loose |
Tighten the nuts when arm at 90° vertical and 180° horizontal position |
Our Car Park Barriers Packing List
Packing list | |||
Name | Specifications | Quantity | Remarks |
Machine core | Good in working | 1 | Main part |
Barrier arm | Straight, folding or fence arm | 1 | Optional |
Boom press board | 1 | Fixing the boom | |
Self-tapoing screw | ST4*16 | Fixing the boom | |
Self-tapoing screw | st3*10 | 4 | Fixing the boom |
Supporting pole | 1 | Fupporting the boom | |
Expanion bolt | M16*150 | 4 | Fixing the case |
Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
Clutch key | 1 | clutch device | |
Case Key | 2 | for case and cover locking | |
Balance spring | According to length of barrier arm | 1 | for sapre usage |
Remote emitter | less than 30m is available | 1 | For remote control |
Remote conrol handles | less than 30m is available | 2 | For remote control |
Instruction | in English | 1 | For reference |
RS485 interface | 1 | Optional | |
Disc | 1 | Optional | |
Communication Mould | 1 | Optional | |
Cover head | 1 | 3 years without fading | |
Expanion nut | M8 | 4 | Fixing the supporting pole |
