Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WST-1151
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Housing Dimension: |
320 * 280 * 935 Mm |
Housing Color: |
Blue, Yellow, Orange |
Housing Material: |
2mm Cold Roller Steel Plate |
Open / Close Time: |
1s, 1.8s, 3s, 6s |
Power Supply: |
AC 220V / 110V |
Max Boom Length: |
6m |
Housing Dimension: |
320 * 280 * 935 Mm |
Housing Color: |
Blue, Yellow, Orange |
Housing Material: |
2mm Cold Roller Steel Plate |
Open / Close Time: |
1s, 1.8s, 3s, 6s |
Power Supply: |
AC 220V / 110V |
Max Boom Length: |
6m |

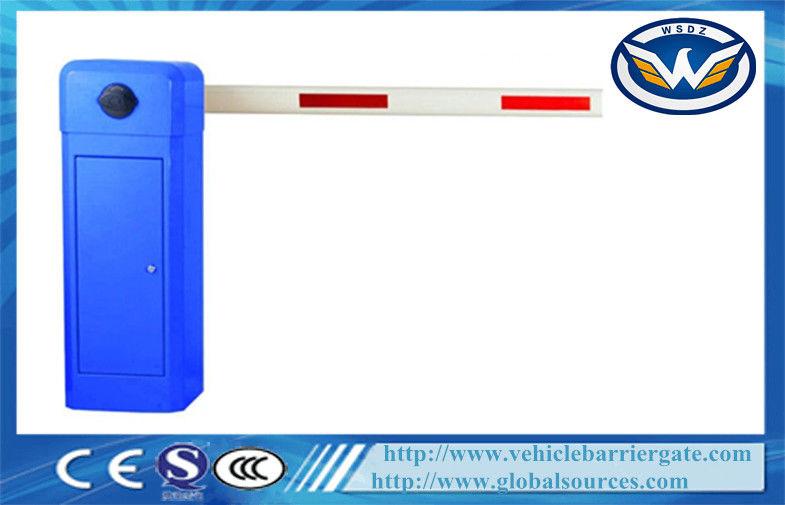

Parking System Car Park Barrier With RS 485 Transition Interface CE ISO SGS approvals
Car Park Barriers Quick Detail:
Car Park Barriers Name: Car parking barrier gate
Car Park Barriers Speed:6 seconds
Car Park Barriers Feature: Straight boom
Car Park Barriers Rated Power:80W
Car Park Barriers Certificate: CE, ISO, SGS
Car Park Barriers Net Weight:48KG
Car Park Barriers Voltage: AC220V, AC110V
Car Park Barriers Model Selection and Differences
Car Park Barriers Model | Car Park Barriers Boom Shape | Max Boom Length | Speed |
WST1151 | Straight boom | 6m | 6 seconds |
WST1152 | Straight boom | 4.5m | 3 seconds |
WST11521 | 90-degree, Articulated boom | 5m | 6 seconds |
WST11522 | 90-degree, Articulated boom | 3m | 3 seconds |
WST11561 | 180-degree, Articulated boom | 5m | 6 seconds |
WST11562 | 180-degree, Articulated boom | 3m | 3 seconds |
Car Park Barriers Functions & Features
1. The humanized clutch device: In case of power off, unlock the clutch device and raise the Car Park Barriers boom manually
2. By the time the power is supplied, lock the clutch device to make it work normally again
3. Special spring device: both the compression spring and tension spring can be used in the machine
4. Using the compression spring can avoid accidents caused by the tension spring
5. Three control buttons: for boom raising, falling, and pausing
6. Car Park Barriers Boom backtrack function: the boom will rise if it hits something when failing
7. Infrared photocell design: for avoiding the crash when the boom falls, to prevent the vehicles from being pressed
8. Both external and internal loop detectors are supported
Car Park Barriers Specifications
Car Park Barriers Model | WST1151 |
Working Temperature | -40℃～+75℃ |
Car Park Barriers Voltage | 220V±10%, 110V±10%, 50/60HZ |
Rated power | 80W |
Car Park Barriers Relative humidity | ≤90% |
Car Park Barriers Remote control distance | ≥30m |
Net weight | 48kgs |
Car Park Barriers Speed | 1S,1.8S,3S, 6S |
Max boom length | 6 meters |
Car Park Barriers Motor Rotational speed | 1400rmp |
Protection Degree | IP44 |
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty well. Our thinking is beyond the short-term. We are conceiving, designing, and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative, that will improve your performance and enhance your skills; and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.
Our car parking barriers packing list
| Car Park Barriers Packing list | |||
| Car Park Barriers Name | Specifications | Quantity | Remarks |
| Machine core | Good in working | 1 | Main part |
| Barrier arm | Straight, folding, or fence arm | 1 | Optional |
| Boom pressboard | 1 | Fixing the boom | |
| Self-tapping screw | ST4*16 | Fixing the boom | |
| Self-tapping screw | st3*10 | 4 | Fixing the Car Park Barriers boom |
| Supporting pole | 1 | Supporting the Car Park Barriers boom | |
| Expansion bolt | M16*150 | 4 | Fixing the case |
| Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
| Clutch key | 1 | clutch device | |
| Case Key | 2 | for the case and cover locking | |
| Balance spring | According to the length of the barrier arm | 1 | for spare usage |
| Remote emitter | less than 30m is available | 1 | For remote control |
| Remote control handles | less than 30m is available | 2 | For remote control |
| Instruction | in English | 1 | For reference |
| RS485 interface | 1 | Optional | |
| Disc | 1 | Optional | |
| Communication Mould | 1 | Optional | |
| Cover head | 1 | 3 years without fading | |
| Expansion nut | M8 | 4 | Fixing the supporting pole |
