Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WST-1151
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Housing Dimension: |
320 * 280 * 935 Mm |
Housing Color: |
Blue, Yellow, Orange |
Housing Material: |
2mm Cold Roller Steel Plate |
Open / Close Time: |
1s, 1.8s, 3s, 6s |
Power Supply: |
AC 220V / 110V |
Warranty: |
1 Year |
Housing Dimension: |
320 * 280 * 935 Mm |
Housing Color: |
Blue, Yellow, Orange |
Housing Material: |
2mm Cold Roller Steel Plate |
Open / Close Time: |
1s, 1.8s, 3s, 6s |
Power Supply: |
AC 220V / 110V |
Warranty: |
1 Year |

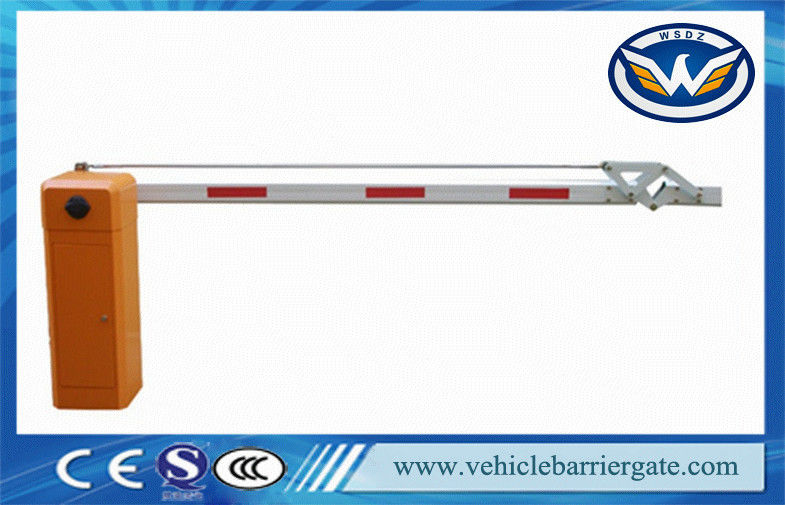

Car Parking Barrier Gate Arm Anti-collision With 180 Degree Folding Arm Length is 1 - 4.5 meters.
Car Park Barriers Quick Detail:
Car Park Barriers Name: Car parking barrier gate
Car Park Barriers Speed: 6 seconds
Car Park Barriers Electric working temperature: -20 degrees to +75 degrees
Car Park Barriers Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz
Car Park Barriers Rated power: 120W
Car Park Barriers Relative humidity: <=90%
Car Park Barriers Remote control distance: >=30m
Car Park Barriers Net weight: 50KGS
Car Park Barriers Model Selection and Differences
Model | Boom Shape | Max Boom Length | Speed |
WST1151 | Straight boom | 6m | 6 seconds |
WST1152 | Straight boom | 4.5m | 3 seconds |
WST11521 | 90-degree, Articulated boom | 5m | 6 seconds |
WST11522 | 90-degree, Articulated boom | 3m | 3 seconds |
WST11561 | 180-degree, Articulated boom | 5m | 6 seconds |
WST11562 | 180-degree, Articulated boom | 3m | 3 seconds |
Functions & Features
1. Wave pressure sensor
During arm dropping, if a wave pressure sensor touches people or cars, the arm will bounce up, protecting people/cars from hurting.
2 Arm illuminator
The arm illuminator is patented by WONSUN. Arm illuminator will remind people of the presence of a barrier gate at times, to avoid bump
3. Bidirectional self-locking function.
Car Park Barriers Specifications
Car Park Barriers Model | WST1151 |
Car Park Barriers Working Temperature | -40℃～+75℃ |
Car Park Barriers Voltage | 220V±10%, 110V±10%, 50/60HZ |
Car Park Barriers Rated power | 80W |
Car Park Barriers Relative humidity | ≤90% |
Car Park Barriers Remote control distance | ≥30m |
Car Park Barriers Net weight | 48kgs |
Car Park Barriers Speed | 1S,1.8S,3S, 6S |
Car Park Barriers Max boom length | 6 meters |
Car Park Barriers Motor Rotational speed | 1400rmp |
Car Park Barriers Protection Degree | IP44 |
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty well. Our thinking is beyond the short-term. We are conceiving, designing, and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative, that will improve your performance and enhance your skills; and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.
Communication with customers
1) Q: Connected power and pressed open/close button but the car parking barrier gate no action.
A | Reason | Solution |
1 | Fuse blown | Check the fuse and power in the controller |
2 | The battery of the remote control powered off | Change a new one |
3 | External protection circuit break or at protecting status | Open the barrier door and click the OPEN/CLOSE button on the control box |
4 | Same frequency interference | Check photocell and loop detector |
2) Q: Connected power and press the open/close button, the car parking barrier gate will move but even when it is in the right position, the motor still runs and does not stop.
A | Reason | Solution |
1 | Limit switch | Adjust the horizontal/vertical limit switch to the correct position |
2 | Main controller failure | Change a new one |
3) Q: The motor running but the car parking barrier gate arm has no action.
A | Reason | Solution |
1 | Barrier arm at 45° position where is hard to move | Unlock the clutch and manually rotate the arm to a horizontal or vertical position then try again |
2 | The tension of the balancing spring is not suitable | Adjust spring exactly |
3 | Low working voltage | Check the voltage and power |
4) Q: When opening/closing, car parking barrier gate arm cannot reach the right position (90° vertical & 180° horizontal)?
A. | Reason | Solution |
1 | Length adjustment of connecting rod not correct | Open the barrier door and unlock the clutch to check when the arm is at 90° vertical position if the master rod covers slave one; when the arm is at 180° horizontal position if the master rod and slave one are in the same straight line |
2 | Nuts on the limit switch loose | Tighten the nuts when the arm at 90° vertical and 180° horizontal position |
