Automatic Car Park Barrier

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WST-1151

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

automatic car park barrier

,

car parking barriers

Housing Dimension:
320 * 280 * 935 Mm
Housing Color:
Blue, Yellow, Orange
Housing Material:
2mm Cold Roller Steel Plate
Open / Close Time:
1s, 1.8s, 3s, 6s
Power Supply:
AC 220V / 110V
Max Boom Length:
6m
Housing Dimension:
320 * 280 * 935 Mm
Housing Color:
Blue, Yellow, Orange
Housing Material:
2mm Cold Roller Steel Plate
Open / Close Time:
1s, 1.8s, 3s, 6s
Power Supply:
AC 220V / 110V
Max Boom Length:
6m
Description

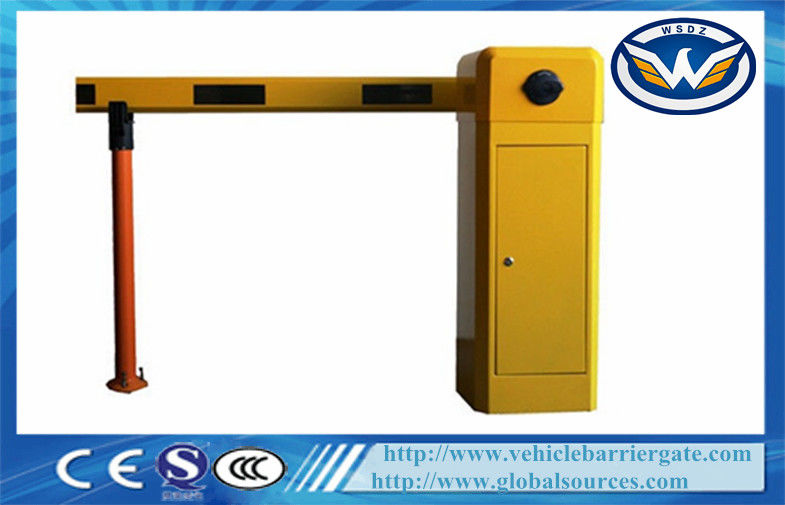

Automatic Car Park Barrier

Automatic Car Park Barriers Parking Gate Arm with Supporting Pole

Car Park Barriers Quick Detail:

Name: Car parking barrier gate
Speed:6 seconds
Feature: Straight boom
Rated Power:80W
Certificate: CE, ISO, SGS
Net Weight:48KG
Voltage:AC220V, AC110V

Car Park Barriers Model Selection and Differences



Model

Boom Shape

Max Boom Length

Speed

WST1151

Straight boom

6m

6 seconds

WST1152

Straight boom

4.5m

3 seconds

WST11521

90-degree, Articulated boom

5m

6 seconds

WST11522

90-degree, Articulated boom

3m

3 seconds

WST11561

180-degree, Articulated boom

5m

6 seconds

WST11562

180-degree, Articulated boom

3m

3 seconds














Car Park Barriers Specifications



1) Power: AC 220±10%,50/60HZ / AC 110±10%,50/60HZ

2) Car Park Barrier's AC Motor: 70W concreted decelerating torque motor

3) Motor power: 120W

4) Spring: multi-spring balance

5) Wireless remoter(optional): two button remote transmitter, distance>20m

6) Arm:45×100mm Aluminum alloy

7) Housing material: 2mm aluminum alloy sheet, IP 44 level

       Housing size: 996mm×347mm×300mm

       Package size: 1060mm×600mm×600mm

8) G.W: 36 KG

9) Operating temperature: -35°c -75°c;

10) Humidity:10%-95%

11) Car Park Barriers Remote control distance: :≥30M




Car Park Barriers Functions & Features

1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)


With WONSUN, your job gets easier.


We don’t just create “good” products that work pretty well. Our thinking is beyond the short term. We are conceiving, designing, and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative, that will improve your performance and enhance your skills; and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.

1. One of leading ISO  9001:2008 certified manufacturer of Vehicle Access Control System(Parking Management System, Barrier Gate, & Parking Lock) in China with 13 years.



2. Develop both hardware and software to make simple operations, and customized solutions available.
