Product Details:
|
| Housing Dimension: | 320 * 280 * 935 Mm | Housing Color: | Blue, Yellow, Orange |
|---|---|---|---|
| Housing Material: | 2mm Cold Roller Steel Plate | Open / Close Time: | 1s, 1.8s, 3s, 6s |
| Power Supply: | AC 220V / 110V | Max Boom Length: | 6m |
| High Light: | automatic car park barrier,car parking barriers |
||

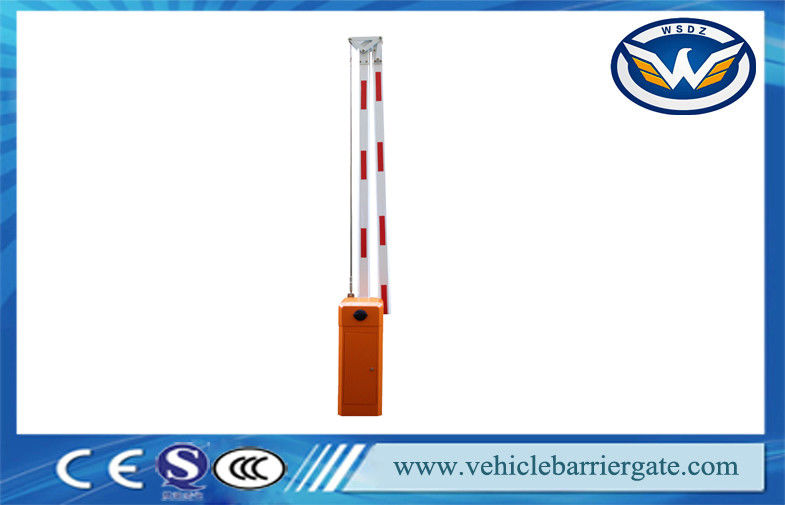

High Speed Car Park Barriers With 90 Degree Articulated Boom Anti - Freezing Oil
Quick Detail:
Name: Car parking barrier gate
Speed:6 seconds
Feature:Straight boom
Rated Power:80W
Certificate:CE, ISO, SGS
Net Weight:48KG
Voltage:AC220V, AC110V
Model Selection and Differences
|
Running time |
1 sec |
3 sec |
6 sec |
3 sec |
6 sec |
3 sec |
6 sec |
3 sec |
6 sec |
|
|
Boom type |
Straight |
90°folding |
180°folding |
2 fence |
3 fence |
|||||
|
Max boom length |
3m |
4.5m |
6m |
3m |
5m |
3m |
5m |
4.5m |
4m |
|
|
Boom dimension (W×H) |
45x80mm |
45x100mm |
||||||||
|
Boom weight |
3kg |
4.5kg |
5kg |
6.5kg |
8kg |
9kg |
11kg |
7kg |
7.5kg |
|
|
Voltage |
220V±10%, 110V±10% |
|||||||||
|
Frequency |
50/60HZ |
|||||||||
|
Motor voltage |
220V |
|||||||||
|
Power |
120W |
|||||||||
|
Working temperature |
-40°C~+75°C |
|||||||||
|
Protection grade |
IP44 |
|||||||||
Functions & Features
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Specifications
|
Exterior size |
320 * 280 * 935 mm |
|
Distance between rall and ground |
865mm |
|
Arm |
100mmx50mm |
|
Oval -arm |
80mm×50mm
|
|
Arm length |
3~6m |
|
Working voltage |
AC220V |
|
Power frequency |
50~60Hz |
|
Rated pwer |
90W |
|
Running life |
3,500,000 times |
|
The arm up and down time |
1S.1.8S, 3S,6S |
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.
Communication with customers
1) Q: Connected power and press open/close button but car parking barrier gate no action?
|
A |
Reason |
Solution |
|
1 |
Fuse blown |
Check fuse and power in controller |
|
2 |
Battery of remote control powered off |
Change a new one |
|
3 |
External protection circuit break or at protecting status |
Open the barrier door and click OPEN/CLOSE button on control box |
|
4 |
Same frequency interference |
Check photocell and loop detector |
2) Q:Connected power and press open/close button, car parking barrier gate will move but even when it is at right position, the motor still running and not stop?
|
A |
Reason |
Solution |
|
1 |
Limit switch |
Adjust the horizontal/vertical limit switch to correct position |
|
2 |
Main controller failure |
Change a new one |
3) Q: Motor running but car parking barrier gate arm no action?
|
A |
Reason |
Solution |
|
1 |
Barrier arm at 45° position where is hard to move |
Unlock clutch and manually rotate arm to horizontal or vertical position then try again |
|
2 |
Tension of balancing spring not suitable |
Adjust spring exactly |
|
3 |
Low working voltage |
Check the voltage and power |
4) Q: When opening/closing, car parking barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?
|
A. |
Reason |
Solution |
|
1 |
Length adjustment of connecting rod not correct |
Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line |
|
2 |
Nuts on the limit switch loose |
Tighten the nuts when arm at 90° vertical and 180° horizontal position |
