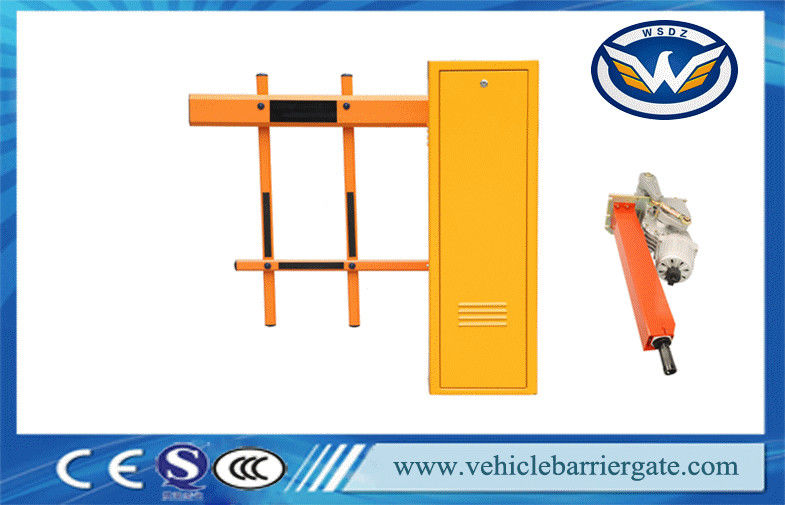

IP44 Parking Lot Arm Barrier Gate Boom / Car Park Security Barriers

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WST-1201

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

IP44 Parking Lot Barrier Gate

,

Parking Lot boom barrier gate

,

Car Park Security Barriers

Housing Dimension:
320 * 250 * 944.5mm
Housing Material:
2mm Cold Roller Steel Plate
Housing Color:
Bule, Orange, White, Yellow
Certificate:
CE, ISO, SGS
Arm Material:
Aluminum Alloy
Arm Length:
Max. 6mtrs
Housing Dimension:
320 * 250 * 944.5mm
Housing Material:
2mm Cold Roller Steel Plate
Housing Color:
Bule, Orange, White, Yellow
Certificate:
CE, ISO, SGS
Arm Material:
Aluminum Alloy
Arm Length:
Max. 6mtrs
Description
IP44 Parking Lot Arm Barrier Gate Boom / Car Park Security Barriers

IP44 Parking Lot Arm Parking Barrier Gate Boom / Car Park Security Barriers

Parking Barrier Gate Quick Detail:

1. Strict QC Control
2. Competitive Price
3. Delivery Just-in-time
4. OEM is Welcomed
Parking Barrier Gate Specifications

Parking Barrier Gate Model

WST1191

Working Temperature

-40℃~+75℃

Parking Barrier Gate Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Parking Barrier Gate Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44



Parking Barrier Gate Model Selection and Differences

Model

Boom Shape

Max Boom Length

Speed

WST1201

Straight boom

6m

6 seconds

WST1202

Straight boom

4.5m

3 seconds

WST12021

90-degree, Articulated boom

5m

6 seconds

WST12022

90-degree, Articulated boom

3m

3 seconds

WST12061

180-degree, Articulated boom

5m

6 seconds

WST12062

180-degree, Articulated boom

3m

3 seconds















Parking Barrier Gate Functions & Features

By-security. The parking barrier gate will automatically go back when meets obstacles during closing.
AC motor is more powerful and no maintenance.
Boom can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1 second to 6 seconds.
The parking barrier gate can be both right-installed and left-installed.
All the operation process is soft without any noise and shaking.
Infrared photocell interface, Loop detector interface, and IC system interface are reserved for the other functions.
Green light and red light are used inside to indicate the position of the boom.



With WONSUN, your job gets easier.

We don’t just create “good” products that work pretty well. Our thinking is beyond the short term. We are conceiving, designing, and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative, that will improve your performance and enhance your skills; and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.

Communication with customers

1)     Q: Connected power and pressed open/close button but the parking barrier gate no action.

A

Reason

Solution

1

Fuse blown

Check the fuse and power in the controller

2

The battery of the remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click the OPEN/CLOSE button on the control box

4

Same frequency interference

Check photocell and loop detector


2) Q: Connected power and press the open/close button, the parking barrier gate will move but even when it is in the right position, the motor still running and does not stop.


A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to the correct position

2

Main controller failure

Change a new one


3)   Q: The Parking Barrier Gate motor running but the parking barrier gate arm is not in action.


A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock the clutch and manually rotate the arm to a horizontal or vertical position then try again

2

The tension of the balancing spring is not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power
